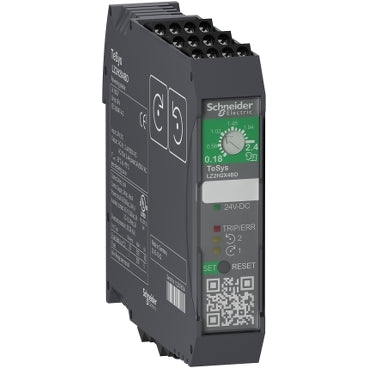

The Schneider Electric LZ2H2X4BD is a TeSys Hybrid ultra-compact reversing starter that combines forward/reverse hybrid power contacts with class 10A thermal overload protection in a 22.5 mm wide housing, for 3-phase motors up to 0.75 kW at 400 V. The dial-adjustable thermal range runs 0.18-2.4 A, and the unit is powered by a 24 V DC control circuit.
The LZ2H2X4BD adds forward/reverse logic inputs over the single-direction LZ1H2X4BD, at the same current and power rating — pick it whenever the motor needs to run both ways, such as a damper actuator or small conveyor reversal. For the same reversing function with an integrated Safe Torque Off, use the LZ8H2X4BD instead. No built-in suppressor module changes the coil wiring versus a standard contactor-plus-overload build.
| Range | TeSys |
|---|---|
| Product name | TeSys Hybrid |
| Device short name | LZ2H |
| Product or Component Type | Reversing ultra-compact starter |
| Motor starter type | Direct on line |
| Poles description | 3P |
| [Ue] rated operational voltage | 500 V AC |
| [Ie] rated operational current | 2.4 A 500 V AC-51, 2.4 A 500 V AC-53A, 2.4 A 500 V AC-51 mounting side by side, 2.4 A 500 V AC-53A mounting side by side |
| Thermal protection adjustment range | 0.18…2.4 A |
| Motor power kW | 0.37 kW 220 V AC 0.65, 0.37 kW 230 V AC 0.65, 0.75 kW 380 V AC 0.65, 0.75 kW 400 V AC 0.65, 0.75 kW 415 V AC 0.65, 0.75 kW 440 V AC 0.65, 1.1 kW 500 V AC 0.65 |
| Maximum Horse Power Rating | 0.5 hp 200 V AC, 0.5 hp 230 V AC, 1 hp 460 V AC |
| [Uc] control circuit voltage | 24 V DC |
| Thermal overload class | Class 10A IEC 60947-4-2 |
| Auxiliary contact composition | 1 C/O fault signalling |
|---|---|
| Control circuit voltage limits | 19.2...30 V DC |
| Current consumption | <= 40 mA 24 V DC |
| Reset | Manual, Automatic reset, Electrical reset |
| Electrical durability | 30 Mcycles |
| Maximum operating rate | 120 cyc/mn AC-51 50 %, 6 cyc/mn AC-53A 50 % |
| Mounting Mode | By clips |
| Mounting Support | DIN rail |
| Connections - terminals | screw clamp terminals 1 0.0003…0.004 in² (0.2…2.5 mm²) rigid, screw clamp terminals 1 0.0004…0.004 in² (0.25…2.5 mm²) flexible - with cable end, screw clamp terminals 1 0.0003…0.004 in² (0.2…2.5 mm²) flexible - without cable end |
| Tightening torque | 4.4…5.3 lbf.in (0.5…0.6 N.m) flat Ø 2.5 mm screwdriver 0.1 in (3 mm) |
| Certifications | CULus, CE |
| Standards | UL 60947-4-1, IEC 60947-4-2 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Pollution degree | 2 |
| Width | 0.9 in (22.5 mm) |
| Height | 3.9 in (99 mm) |
| Depth | 4.5 in (114.5 mm) |
| Net Weight | 7.5 oz (212 g) |
| IP degree of protection | IP20 |
|---|---|
| Protective treatment | TC |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) without derating |
| Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
| Part number | LZ2H2X4BD |
|---|---|
| Type designation | LZ2H |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 03606485421056 |
| Warranty (in months) | 18 |
|---|
| Country of origin | DE |
|---|---|
| Shipping weight | 0.212 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
