Part number
LZ1H2X4BD
Model no
LZ1H
$249.04 On request Dispatch — · From TürkiyeGet a Quote

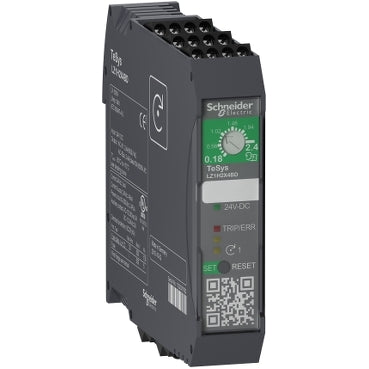

Schneider Electric LZ1H2X4BD TeSys Hybrid Ultra-Compact Starter 3P 0.18-2.4 A 0.75 kW 24 V DC Motor Starter

TeSys Hybrid ultra-compact direct-on-line starter, 0.18-2.4 A, 0.75 kW at 400 V, 24 V DC coil.

Rated current
2.4 A
Rated operational voltage
24 V DC
Motor power
0.75 kW
Poles
3P
Display
LED status (tripping, running)
EAN
3606485420974
Description

About the LZ1H

The Schneider Electric LZ1H2X4BD is a TeSys Hybrid ultra-compact direct-on-line starter that combines a hybrid power contactor with class 10A thermal overload protection in a 22.5 mm wide housing, for 3-phase motors up to 0.75 kW at 400 V. The dial-adjustable thermal range runs 0.18-2.4 A, and the unit is powered by a 24 V DC control circuit.

Certifications & Standards

  • IEC 60947-4-2
  • UL 60947-4-1

Selection Notes

The LZ1H2X4BD gives one direction of rotation only; choose the LZ2H2X4BD if the application needs forward/reverse control on the same motor. Unlike a separate contactor-plus-overload-relay build, the hybrid power contacts and thermal protection ship in a single 22.5 mm block, which cuts panel width on machines with many small motor outputs. Where a Safe Torque Off function is required for the safety chain, step up to the LZ7H2X4BD instead of adding an external safety relay.

Specification

Full specification

50 values · Last verified 30 Oct 2026

Main 13

Range TeSys
Product name TeSys Hybrid
Device short name LZ1H
Product or Component Type Ultra-compact starter
Motor starter type Direct on line
Poles description 3P
[Ue] rated operational voltage 500 V AC
[Ie] rated operational current 2.4 A 500 V AC-51, 2.4 A 500 V AC-53A, 2.4 A 500 V AC-51 mounting side by side, 2.4 A 500 V AC-53A mounting side by side
Thermal protection adjustment range 0.18…2.4 A
Motor power kW 0.37 kW 220 V AC 0.65, 0.37 kW 230 V AC 0.65, 0.75 kW 380 V AC 0.65, 0.75 kW 400 V AC 0.65, 0.75 kW 415 V AC 0.65, 0.75 kW 440 V AC 0.65, 1.1 kW 500 V AC 0.65
Maximum Horse Power Rating 0.5 hp 200 V AC, 0.5 hp 230 V AC, 1 hp 460 V AC
[Uc] control circuit voltage 24 V DC
Thermal overload class Class 10A IEC 60947-4-2

Complementary 19

Auxiliary contact composition 1 C/O fault signalling
Control circuit voltage limits 19.2...30 V DC
Current consumption <= 40 mA 24 V DC
Reset Manual, Automatic reset, Electrical reset
Electrical durability 30 Mcycles
Maximum operating rate 120 cyc/mn AC-51 50 %, 6 cyc/mn AC-53A 50 %
Mounting Mode By clips
Mounting Support DIN rail
Connections - terminals screw clamp terminals 1 0.0003…0.004 in² (0.2…2.5 mm²) rigid, screw clamp terminals 1 0.0004…0.004 in² (0.25…2.5 mm²) flexible - with cable end, screw clamp terminals 1 0.0003…0.004 in² (0.2…2.5 mm²) flexible - without cable end
Tightening torque 4.4…5.3 lbf.in (0.5…0.6 N.m) flat Ø 2.5 mm screwdriver 0.1 in (3 mm)
Certifications CE, CULus
Standards IEC 60947-4-2, UL 60947-4-1
[Ui] rated insulation voltage 500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 6 kV
Pollution degree 2
Width 0.9 in (22.5 mm)
Height 3.9 in (99 mm)
Depth 4.5 in (114.5 mm)
Net Weight 7.5 oz (212 g)

Environment 4

IP degree of protection IP20
Protective treatment TC
Ambient air temperature for operation -13…158 °F (-25…70 °C) without derating
Ambient Air Temperature for Storage -40…176 °F (-40…80 °C)
Show all 50 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LZ1H2X4BD
Type designation LZ1H
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606485420974

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin DE
Shipping weight 0.212 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
