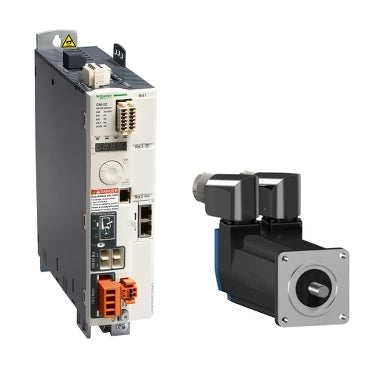

Lexium 32Schneider Electric LXM32SU90M2 Lexium 32 LXM32S 3A 230V Single-Phase Servo Drive
Lexium 32 LXM32S servo drive, 3 A continuous, single-phase 100-240 V, 0.5 kW, SERCOS III, STO, IP20.
Description
About the LXM32S
About the LXM32S
The Schneider Electric LXM32SU90M2 is a Lexium 32 LXM32S single-phase motion servo drive with integrated SERCOS III fieldbus, delivering 3 A continuous output current at 8 kHz from a 100-120 V / 200-240 V single-phase supply, rated 0.5 kW nominal power at 230 V. It provides 2 capture digital inputs, 3 discrete outputs, and an integrated STO safety function.
Certifications & Standards
- CE
- CSA
- EN/IEC 61800-3
Selection Notes
The LXM32SU90M2 is the single-phase entry point of the LXM32S SERCOS III series, running from a 100-120 V or 200-240 V single-phase line rather than the three-phase supply the LXM32SD30N4 needs — pick it for smaller single-axis machines on standard single-phase mains. Natural-convection cooling (no integrated fan) reflects its lower 3 A / 0.5 kW continuous rating, so keep cabinet airflow in mind at the top of its ambient temperature range.
Applications
Single-axis servo control on SERCOS III motion networks running from single-phase mains, paired with a BMH 70 mm servo motor at up to 0.5 kW.
Specification
Full specification
Main 15
| Range of Product | Lexium 32 |
|---|---|
| Device short name | LXM32S |
| Product or Component Type | Motion servo drive |
| Format of the drive | Book |
| Phase | Single phase |
| [Us] rated supply voltage | 100...120 V - 15...10 %, 200...240 V - 15...10 % |
| Supply voltage limits | 85…132 V, 170…264 V |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network Frequency | 47.5...63 Hz |
| EMC filter | Integrated |
| Continuous output current | 3 A 8 kHz |
| Output current 3s peak | 6 A 115 V 5 s, 9 A 230 V 5 s |
| Continuous power | 400 W 115 V, 900 W 230 V |
| Nominal power | 0.3 kW 115 V 8 kHz, 0.5 kW 230 V 8 kHz |
| Line current | 5.2 A 90 % 115 V, with external line choke 2 mH, 6.3 A 107 % 230 V, with external line choke 2 mH, 5.4 A 159 % 115 V, without line choke, 4.5 A 166 % 230 V, without line choke |
Complementary 33
| Switching frequency | 8 kHz |
|---|---|
| Overvoltage category | III |
| Maximum leakage current | 30 mA |
| Output voltage | <= power supply voltage |
| Electrical isolation | Between power and control |
| Type of cable | Single-strand IEC cable 122 °F (50 °C)) copper 90 °C XLPE/EPR |
| Electrical connection | Terminal 3 mm², 12 AWG CN8) |
| Tightening torque | CN8 4.4 lbf.in (0.5 N.m) |
| Discrete input number | 2 capture |
| Discrete input type | Capture CAP |
| Sampling duration | 0.25 ms |
| Discrete input voltage | 24 V DC capture |
| Discrete input logic | Positive compliment of STO_A, compliment of STO_B) 15 V EN/IEC 61131-2 type 1 |
| Response time | <= 5 ms compliment of STO_A, compliment of STO_B |
| Discrete output number | 3 |
| Discrete output type | Logic DO)24 V DC |
| Discrete output voltage | <= 30 V DC |
| Discrete output logic | Positive or negative DO)EN/IEC 61131-2 |
| Contact bounce time | <= 1 ms compliment of STO_A, compliment of STO_B |
| Braking current | 50 mA |
| Response time on output | 250 µs DO)discrete |
| Safety function | STO (safe torque off), Integrated |
| Safety level | SIL 3 EN/IEC 61508 |
| Communication interface | SERCOS III, Integrated |
| Status LED | 1 LED (Red) servo drive voltage |
| Signalling function | Display of faults 7 segments |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Product compatibility | Servo motor BMH 2.8 in (70 mm), 1 |
| Width | 2.7 in (68 mm) |
| Height | 10.6 in (270 mm) |
| Depth | 9.3 in (237 mm) |
| Net Weight | 4.0 lb(US) (1.8 kg) |
Environment 13
| Electromagnetic compatibility | Conducted EMC EN 55011 class A group 1 |
|---|---|
| Standards | EN/IEC 61800-3 |
| Product Certifications | CSA |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms EN/IEC 60028-2-27 |
| Pollution degree | 2 EN/IEC 61800-5-1 |
| Environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 |
| Relative humidity | Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3 |
| Ambient air temperature for operation | 32…122 °F (0…50 °C) UL |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Type of cooling | Natural convection |
| Operating altitude | <= 3280.84 ft (1000 m) without derating |
Show all 75 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | LXM32SU90M2 |
|---|---|
| Type designation | LXM32S |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480694820 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 1.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
