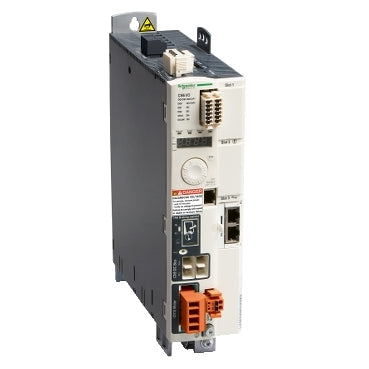

Schneider Electric LXM32SD30M2 Lexium 32 LXM32S 10A 1.6kW Single-Phase SERCOS III Servo Drive

The Schneider Electric LXM32SD30M2 is the top-current single-phase Lexium 32 LXM32S motion servo drive, with integrated SERCOS III communication, a continuous output current of 10 A at 8 kHz, and a nominal power of 1.6 kW at 230 V from a 100-120 V or 200-240 V supply. It carries integrated STO safety for single-axis motion.

Technical Specifications

Certifications & Standards

• CE
• CSA
• EN/IEC 61800-3

Selection Notes

The LXM32SD30M2's SERCOS III interface is integrated rather than card-based, which fixes this drive to SERCOS motion buses and trades away the CANopen/EtherCAT/Profinet flexibility of the LXM32M line - pick it only when the cell's motion controller is already standardized on SERCOS III. Its discrete I/O is narrower too: 2 capture inputs and 3 logic outputs only, with STO as the sole integrated safety function and no eSM card for SS1, SS2, SLS, or SOS. It is the largest single-phase LXM32S frame, above the 6 A / 1 kW SD18M2, for the highest-load axis a single-phase supply can still drive. At 10 A continuous / 1.6 kW nominal on single-phase supply, size this frame the same way as its LXM32M current-rated counterpart, based on the axis motor's continuous power draw.

Applications

Single-axis motion at the upper end of what single-phase mains can supply - larger packaging or handling axes on SERCOS III cells without three-phase power at the machine.
