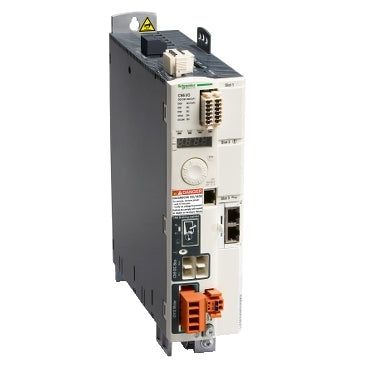

Schneider Electric LXM32SD12N4 Lexium 32 LXM32S 3A 0.9kW Three-Phase SERCOS III Servo Drive

The Schneider Electric LXM32SD12N4 is a Lexium 32 LXM32S motion servo drive with integrated SERCOS III communication, rated for three-phase supply at 200-240 V or 380-480 V with a continuous output current of 3 A at 8 kHz and a nominal power of 0.9 kW at 400 V. It carries integrated STO safety for single-axis motion on a SERCOS III bus.

Technical Specifications

Certifications & Standards

• CE
• CSA
• EN/IEC 61800-3

Selection Notes

The LXM32SD12N4's SERCOS III interface is integrated rather than card-based, which fixes this drive to SERCOS motion buses and trades away the CANopen/EtherCAT/Profinet flexibility of the LXM32M line - pick it only when the cell's motion controller is already standardized on SERCOS III. Its discrete I/O is narrower too: 2 capture inputs and 3 logic outputs only, with STO as the sole integrated safety function and no eSM card for SS1, SS2, SLS, or SOS. This is the entry-current three-phase LXM32S frame; step up to the 6 A / 1.8 kW SD18N4 once the axis motor's continuous power exceeds roughly 0.9 kW. At 3 A continuous / 0.9 kW nominal on three-phase supply, size this frame the same way as its LXM32M current-rated counterpart, based on the axis motor's continuous power draw.

Applications

Single-axis motion on machines already running a SERCOS III motion bus - multi-axis packaging or printing lines where the controller and other drives are standardized on SERCOS III.
