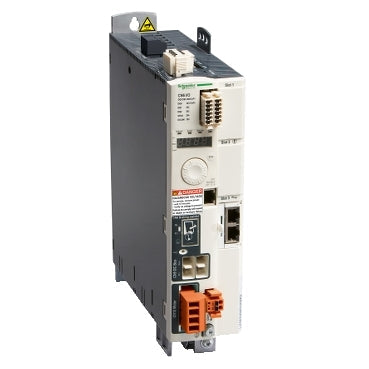

Lexium 32Schneider Electric LXM32MU90M2 Lexium 32 LXM32M 3A 0.5kW Single-Phase Servo Drive
Lexium 32 LXM32M servo drive, single-phase, 3 A / 0.5 kW, integrated STO, natural convection cooling.
Description
About the LXM32M
About the LXM32M
The Schneider Electric LXM32MU90M2 is the smallest-current Lexium 32 LXM32M motion servo drive, rated for single-phase supply at 100-120 V or 200-240 V with a continuous output current of 3 A at 8 kHz and a nominal power of 0.5 kW at 230 V. It integrates STO safety and an EMC filter for compact single-axis motion on light-load machines.
Certifications & Standards
- CE
- CSA
- TÜV
- UL
- EN/IEC 61800-5-1
- EN/IEC 61800-3
Selection Notes
At 3 A continuous / 0.5 kW, the LXM32MU90M2 is the entry-current frame in the single-phase LXM32M line, below the 10 A / 1.6 kW MD30M2 - choose it for light-load axes such as small pick-and-place or indexing motion where 0.5 kW covers the torque and speed envelope, and step up to MD30M2 once the motor's continuous power exceeds roughly 0.5 kW. It retains the full 2 capture, 2 safety, and 4 logic discrete input set with the optional eSM safety card for SS1, SS2, SLS, and SOS, so the smaller frame does not trade away safety functionality. Natural convection cooling (no fan) keeps the drive silent at this current level, unlike the fan-cooled MD30M2 and MD18N4 frames.
Applications
Light-load single-axis motion in compact cells - small pick-and-place heads, indexing tables, and lab or bench automation where the axis draws well under 0.5 kW.
Specification
Full specification
Main 15
| Range of Product | Lexium 32 |
|---|---|
| Device short name | LXM32M |
| Product or Component Type | Motion servo drive |
| Format of the drive | Book |
| Phase | Single phase |
| [Us] rated supply voltage | 100...120 V - 15...10 %, 200...240 V - 15...10 % |
| Supply voltage limits | 85…132 V, 170…264 V |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network Frequency | 47.5...63 Hz |
| EMC filter | Integrated |
| Continuous output current | 3 A 8 kHz |
| Output current 3s peak | 6 A 115 V 5 s, 9 A 230 V 5 s |
| Continuous power | 400 W 115 V, 900 W 230 V |
| Nominal power | 0.3 kW 115 V 8 kHz, 0.5 kW 230 V 8 kHz |
| Line current | 5.2 A 90 % 115 V, with external line choke 2 mH, 6.3 A 107 % 230 V, with external line choke 2 mH, 5.4 A 159 % 115 V, without line choke, 4.5 A 166 % 230 V, without line choke |
Complementary 35
| Switching frequency | 8 kHz |
|---|---|
| Overvoltage category | III |
| Maximum leakage current | 30 mA |
| Output voltage | <= power supply voltage |
| Electrical isolation | Between power and control |
| Type of cable | Single-strand IEC cable 122 °F (50 °C)) copper 90 °C XLPE/EPR |
| Electrical connection | Terminal 3 mm², 12 AWG CN8), Terminal 5 mm², 10 AWG CN1), Terminal 5 mm², 10 AWG CN10) |
| Tightening torque | CN8 4.4 lbf.in (0.5 N.m), CN1 6.2 lbf.in (0.7 N.m), CN10 6.2 lbf.in (0.7 N.m) |
| Discrete input number | 2 capture, 2 safety, 4 logic |
| Discrete input type | Capture CAP, Logic DI, Safety compliment of STO_A, compliment of STO_B |
| Sampling duration | DI 0.25 ms discrete, 0.25 ms |
| Discrete input voltage | 24 V DC capture, 24 V DC logic, 24 V DC safety |
| Discrete input logic | Positive compliment of STO_A, compliment of STO_B) 15 V EN/IEC 61131-2 type 1, Positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1, Positive or negative DI) 15 V EN/IEC 61131-2 type 1 |
| Response time | <= 5 ms compliment of STO_A, compliment of STO_B |
| Discrete output number | 3 |
| Discrete output type | Logic DO)24 V DC |
| Discrete output voltage | <= 30 V DC |
| Discrete output logic | Positive or negative DO)EN/IEC 61131-2 |
| Contact bounce time | <= 1 ms compliment of STO_A, compliment of STO_B, 2 µs CAP, 0.25 µs...1.5 ms DI |
| Braking current | 50 mA |
| Response time on output | 250 µs DO)discrete |
| Control signal type | Servo motor encoder feedback, Pulse train output (PTO) RS422 <500 kHz <328.08 ft (100 m), Pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <3.3 ft (1 m), Pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <32.8 ft (10 m), Pulse/direction (P/D), A/B, CW/CCW RS422 <1000 kHz <328.08 ft (100 m) |
| Protection type | Against reverse polarity inputs signal, Against short-circuits outputs signal |
| Safety function | STO (safe torque off), Integrated, SS1 (safe stop 1), with separated eSM safety card, SS2 (safe stop 2), with separated eSM safety card, SLS (safe limited speed), with separated eSM safety card, SOS (safe operating stop), with separated eSM safety card |
| Safety level | SIL 3 EN/IEC 61508, PL = e ISO 13849-1 |
| Communication interface | Modbus TCP, with separated communication card, CANopen, with separated communication card, CANmotion, with separated communication card, Ethernet/IP, with separated communication card, EtherCAT, with separated communication card, Profibus, with separated communication card, Profinet, with separated communication card, Analog I/O, with separated communication card, Digital I/O, Integrated |
| Status LED | 1 LED (Red) servo drive voltage |
| Signalling function | Display of faults 7 segments |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Product compatibility | Servo motor BMH 2.8 in (70 mm), 1, Servo motor BSH 2.8 in (70 mm), 1, Servo motor BSH 2.2 in (55 mm), 3, Servo motor BSH 2.2 in (55 mm), 1, Servo motor BSH 2.2 in (55 mm), 2 |
| Width | 2.7 in (68 mm) |
| Height | 10.6 in (270 mm) |
| Depth | 9.3 in (237 mm) |
| Net Weight | 4.0 lb(US) (1.8 kg) |
Environment 13
| Electromagnetic compatibility | Conducted EMC, class A group 1 EN 55011, Conducted EMC, class A group 2 EN 55011, Conducted EMC, environment 2 category C3 EN/IEC 61800-3, Conducted EMC, category C2 EN/IEC 61800-3, Conducted EMC, environments 1 and 2 EN/IEC 61800-3, Electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2, Susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-3, 1.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5, Electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4, Radiated EMC, class A group 2 EN 55011, Radiated EMC, category C3 EN/IEC 61800-3 |
|---|---|
| Standards | EN/IEC 61800-5-1, EN/IEC 61800-3 |
| Product Certifications | CSA, TÜV, UL |
| IP degree of protection | IP20 conforming to EN/IEC 60529, IP20 conforming to EN/IEC 61800-5-1 |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6, 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms EN/IEC 60028-2-27 |
| Pollution degree | 2 EN/IEC 61800-5-1 |
| Environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 |
| Relative humidity | Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3 |
| Ambient air temperature for operation | 32…122 °F (0…50 °C) UL |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Type of cooling | Natural convection |
| Operating altitude | <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions |
Show all 77 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | LXM32MU90M2 |
|---|---|
| Type designation | LXM32M |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480076831 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 1.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
