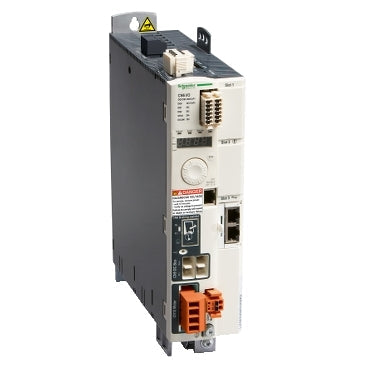

Lexium 32Schneider Electric LXM32MD72N4 Lexium 32 LXM32M 24A 7kW Three-Phase Servo Drive
Lexium 32 LXM32M servo drive, three-phase, 24 A / 7 kW, integrated STO, card-based fieldbus.
Description
About the LXM32M
About the LXM32M
The Schneider Electric LXM32MD72N4 is the top-current Lexium 32 LXM32M motion servo drive, rated for three-phase supply at 200-240 V or 380-480 V with a continuous output current of 24 A at 8 kHz and a nominal power of 7 kW at 400 V. It carries integrated STO safety and accepts a fieldbus communication card for single-axis motion control on the highest-load machines in the range.
Certifications & Standards
- CE
- CSA
- EN/IEC 61800-3
Selection Notes
At 24 A continuous / 7 kW, the LXM32MD72N4 is the largest frame in the LXM32M line and steps up from the 6 A / 1.8 kW MD18N4 for axes whose motor draws well above 1.8 kW continuous. This frame drops to 2 capture discrete inputs with STO as the only integrated safety function - no separate eSM safety card for SS1, SS2, SLS, or SOS is listed for this variant, unlike the lower-current MD18N4 and MD30M2 frames - so a machine needing category-1 stop or safe limited speed on this axis should confirm that requirement before specifying it. The wider 108 mm housing reflects the higher continuous and peak current the power stage carries.
Applications
High-load single-axis motion on the largest machines in a Lexium 32 line - main spindle or high-torque conveyor drives where the axis motor draws several kilowatts continuously.
Specification
Full specification
Main 15
| Range of Product | Lexium 32 |
|---|---|
| Device short name | LXM32M |
| Product or Component Type | Motion servo drive |
| Format of the drive | Book |
| Phase | Three phase |
| [Us] rated supply voltage | 200...240 V - 15...10 %, 380...480 V - 15...10 % |
| Supply voltage limits | 170…264 V, 323…528 V |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network Frequency | 47.5...63 Hz |
| EMC filter | Integrated |
| Continuous output current | 24 A 8 kHz |
| Output current 3s peak | 72 A 208 V 5 s, 72 A 480 V 5 s |
| Continuous power | 6500 W 208 V, 13000 W 400 V, 13000 W 480 V |
| Nominal power | 5 kW 208 V 8 kHz, 7 kW 400 V, 7 kW 480 V 8 kHz |
| Line current | 21.1 A 34 % 208 V, with external line choke 1 mH, 22.5 A 45 % 400 V, with external line choke 1 mH, 19.5 A 55 % 480 V, with external line choke 1 mH, 21.9 A 106 % 208 V, without line choke, 17.3 A 126 % 400 V, without line choke, 14.6 A 129 % 480 V, without line choke |
Complementary 35
| Switching frequency | 8 kHz |
|---|---|
| Overvoltage category | III |
| Maximum leakage current | 30 mA |
| Output voltage | <= power supply voltage |
| Electrical isolation | Between power and control |
| Type of cable | Single-strand IEC cable 122 °F (50 °C)) copper 90 °C XLPE/EPR |
| Electrical connection | Terminal 3 mm², 12 AWG CN8) |
| Tightening torque | CN8 4.4 lbf.in (0.5 N.m) |
| Discrete input number | 2 capture |
| Discrete input type | Capture CAP |
| Sampling duration | 0.25 ms |
| Discrete input voltage | 24 V DC capture |
| Discrete input logic | Positive compliment of STO_A, compliment of STO_B) 15 V EN/IEC 61131-2 type 1 |
| Response time | <= 5 ms compliment of STO_A, compliment of STO_B |
| Discrete output number | 3 |
| Discrete output type | Logic DO)24 V DC |
| Discrete output voltage | <= 30 V DC |
| Discrete output logic | Positive or negative DO)EN/IEC 61131-2 |
| Contact bounce time | <= 1 ms compliment of STO_A, compliment of STO_B |
| Braking current | 50 mA |
| Response time on output | 250 µs DO)discrete |
| Control signal type | Pulse train output (PTO) RS422 <500 kHz <328.08 ft (100 m) |
| Protection type | Against reverse polarity inputs signal |
| Safety function | STO (safe torque off), Integrated |
| Safety level | SIL 3 EN/IEC 61508 |
| Communication interface | Modbus TCP, with separated communication card, CANopen, with separated communication card, CANmotion, with separated communication card, Ethernet/IP, with separated communication card, EtherCAT, with separated communication card, Profibus, with separated communication card, Profinet, with separated communication card, Analog I/O, with separated communication card, Digital I/O, Integrated |
| Status LED | 1 LED (Red) servo drive voltage |
| Signalling function | Display of faults 7 segments |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Product compatibility | Servo motor BMH 5.5 in (140 mm), 2 |
| Width | 4.3 in (108 mm) |
| Height | 10.6 in (270 mm) |
| Depth | 9.3 in (237 mm) |
| Net Weight | 10.6 lb(US) (4.8 kg) |
Environment 13
| Electromagnetic compatibility | Conducted EMC, class A group 1 EN 55011 |
|---|---|
| Standards | EN/IEC 61800-3 |
| Product Certifications | CSA |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms EN/IEC 60028-2-27 |
| Pollution degree | 2 EN/IEC 61800-5-1 |
| Environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 |
| Relative humidity | Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3 |
| Ambient air temperature for operation | 32…122 °F (0…50 °C) UL |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Type of cooling | Integrated fan |
| Operating altitude | <= 3280.84 ft (1000 m) without derating |
Show all 77 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | LXM32MD72N4 |
|---|---|
| Type designation | LXM32M |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480216244 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 4.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
