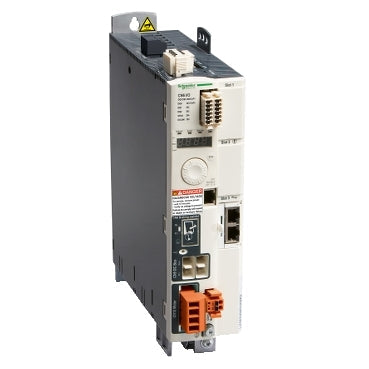

Schneider Electric LXM32MD12N4 Lexium 32 LXM32M 3A 400V Three-Phase Servo Drive

The Schneider Electric LXM32MD12N4 is a Lexium 32 LXM32M modular motion servo drive delivering 3 A continuous output current at 8 kHz from a three-phase 200-240 V / 380-480 V supply, rated 0.9 kW nominal power at 400 V. It integrates STO safety plus optional SS1/SS2/SLS/SOS functions via an eSM safety card, with 2 capture, 2 safety, and 4 logic digital inputs.

Technical Specifications

Certifications & Standards

• CE
• TÜV
• CSA
• UL
• EN/IEC 61800-5-1
• EN/IEC 61800-3

Selection Notes

The LXM32MD12N4 is the smallest LXM32M frame, at 3 A continuous / 0.9 kW — step up to the 10 A or 40 A modular variants in the same book format when the application needs more continuous torque. Beyond the base STO function, this drive supports SS1, SS2, SLS, and SOS safety functions through an add-on eSM safety card, useful where a machine guard needs a controlled stop or speed limit rather than an immediate torque cut.

Applications

Single-axis servo control on small-frame machines needing extended safety functions (SS1/SS2/SLS/SOS) beyond basic STO, at up to 0.9 kW.
