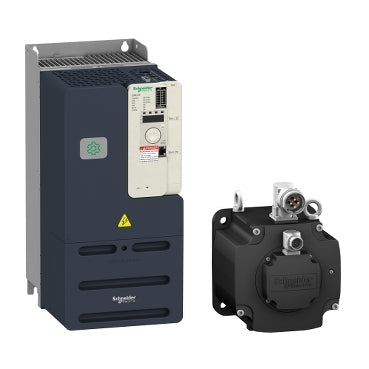

Lexium 32Schneider Electric LXM32MC10N4 Lexium 32 LXM32M 40A 400V Three-Phase Servo Drive
Lexium 32 LXM32M servo drive, 40 A continuous, 3-phase 380-480 V, 11 kW, multi-protocol card, STO, IP20.
Description
About the LXM32M
About the LXM32M
The Schneider Electric LXM32MC10N4 is a Lexium 32 LXM32M modular motion servo drive delivering 40 A continuous output current at 4 kHz from a three-phase 380-480 V supply, rated 11 kW nominal power. It supports optional Modbus TCP, CANopen, CANmotion, EtherNet/IP, EtherCAT, Profibus, or Profinet fieldbus cards alongside 2 capture inputs and 3 digital outputs.
Certifications & Standards
- CE
- CSA
- EN/IEC 61800-3
Selection Notes
The LXM32MC10N4's fieldbus connectivity is card-based rather than integrated — Modbus TCP, CANopen, CANmotion, EtherNet/IP, EtherCAT, Profibus, and Profinet are all available options, so confirm the required protocol is ordered as a separate communication card before install. At 40 A continuous / 11 kW, it sits at the low end of the LXM32M modular frame; the 100 A figure in the 3 s peak rating (not the '10' in the reference) is the 5-second overload ceiling, so size cabling and motor to the 40 A continuous rating.
Applications
Single-axis servo control on machines standardized on a specific industrial Ethernet or fieldbus protocol, paired with a BMH 190 mm servo motor at up to 11 kW.
Specification
Full specification
Main 15
| Range of Product | Lexium 32 |
|---|---|
| Device short name | LXM32M |
| Product or Component Type | Motion servo drive |
| Format of the drive | Book |
| Phase | Three phase |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Supply voltage limits | 323…528 V |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network Frequency | 47.5...63 Hz |
| EMC filter | Integrated |
| Continuous output current | 40 A 4 kHz |
| Output current 3s peak | 100 A 480 V 5 s |
| Continuous power | 11000 W 400 V, 11000 W 480 V |
| Nominal power | 11 kW 400 V 4 kHz, 11 kW 480 V 8 kHz |
| Line current | 23.3 A 140 % 480 V, without line choke, 32 A 54 % 480 V, with external line choke 0.5 mH, 38.1 A 70 % 480 V, with external line choke 0.5 mH |
Complementary 35
| Switching frequency | 4 kHz |
|---|---|
| Overvoltage category | III |
| Maximum leakage current | 30 mA |
| Output voltage | <= power supply voltage |
| Electrical isolation | Between power and control |
| Type of cable | Single-strand IEC cable 122 °F (50 °C)) copper 90 °C XLPE/EPR |
| Electrical connection | Terminal 8 mm², 8 AWG CN8) |
| Tightening torque | CN8 33.6 lbf.in (3.8 N.m) |
| Discrete input number | 2 capture |
| Discrete input type | Capture CAP |
| Sampling duration | 0.25 ms |
| Discrete input voltage | 24 V DC capture |
| Discrete input logic | Positive compliment of STO_A, compliment of STO_B) 15 V EN/IEC 61131-2 type 1 |
| Response time | <= 5 ms compliment of STO_A, compliment of STO_B |
| Discrete output number | 3 |
| Discrete output type | Logic DO)24 V DC |
| Discrete output voltage | <= 30 V DC |
| Discrete output logic | Positive or negative DO)EN/IEC 61131-2 |
| Contact bounce time | <= 1 ms compliment of STO_A, compliment of STO_B |
| Braking current | 50 mA |
| Response time on output | 250 µs DO)discrete |
| Control signal type | Pulse train output (PTO) RS422 <500 kHz <328.08 ft (100 m) |
| Protection type | Against reverse polarity inputs signal |
| Safety function | STO (safe torque off), Integrated |
| Safety level | SIL 3 EN/IEC 61508 |
| Communication interface | Modbus TCP, with separated communication card, CANopen, with separated communication card, CANmotion, with separated communication card, Ethernet/IP, with separated communication card, EtherCAT, with separated communication card, Profibus, with separated communication card, Profinet, with separated communication card, Analog I/O, with separated communication card, Digital I/O, Integrated |
| Status LED | 1 LED (Red) servo drive voltage |
| Signalling function | Display of faults 7 segments |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Product compatibility | Servo motor BMH 7.5 in (190 mm), 1, Servo motor BMH 7.5 in (190 mm), 2, Servo motor BMH 7.5 in (190 mm), 3, Servo motor BMH 7.5 in (190 mm), 4 |
| Width | 7.09 in (180 mm) |
| Height | 15.2 in (385 mm) |
| Depth | 9.4 in (240 mm) |
| Net Weight | 21.2 lb(US) (9.6 kg) |
Environment 13
| Electromagnetic compatibility | Conducted EMC, class A group 1 EN 55011 |
|---|---|
| Standards | EN/IEC 61800-3 |
| Product Certifications | CSA |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms EN/IEC 60028-2-27 |
| Pollution degree | 2 EN/IEC 61800-5-1 |
| Environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 |
| Relative humidity | Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3 |
| Ambient air temperature for operation | 32…122 °F (0…50 °C) UL |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Type of cooling | Integrated fan |
| Operating altitude | <= 3280.84 ft (1000 m) without derating |
Show all 77 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | LXM32MC10N4 |
|---|---|
| Type designation | LXM32M |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606485402420 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 9.6 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
