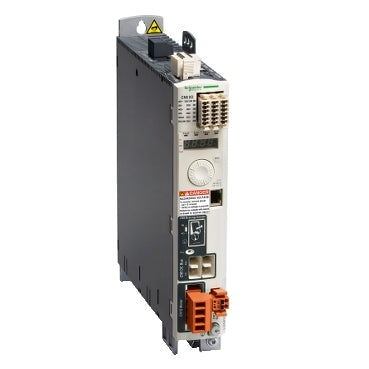

Lexium 32Schneider Electric LXM32CD72N4 Lexium 32 LXM32C 24A 400V Three-Phase Servo Drive
Lexium 32 LXM32C servo drive, 24 A continuous, 3-phase 200-480 V, 7 kW at 400 V, Modbus, STO, IP20.
Description
About the LXM32C
About the LXM32C
The Schneider Electric LXM32CD72N4 is a Lexium 32 LXM32C compact motion servo drive delivering 24 A continuous output current at 8 kHz from a three-phase 200-240 V / 380-480 V supply, rated 7 kW nominal power at 400 V. It integrates an EMC filter, 2 safety and 6 logic digital inputs, 5 discrete outputs, and Modbus over RJ45.
Certifications & Standards
- CE
- UL
- TÜV
- CSA
- EN/IEC 61800-5-1
- EN/IEC 61800-3
Selection Notes
As a 'C' variant, the LXM32CD72N4 takes command over integrated analog and pulse-train inputs plus Modbus rather than a dedicated motion fieldbus — choose the 'M' or 'S' series instead if the application needs CANopen/EtherCAT motion-bus control. At 24 A continuous / 7 kW at 400 V, it sits toward the top of the compact 'C' frame; the 72 A figure in the reference marks only the 5-second peak overload, not a continuous rating, so size the motor and cabling to the 24 A continuous figure.
Applications
Single-axis position, speed, and torque control via analog reference or pulse train, paired with BMH or BSH servo motors up to 7 kW at 400 V three-phase.
Specification
Full specification
Main 15
| Range of Product | Lexium 32 |
|---|---|
| Device short name | LXM32C |
| Product or Component Type | Motion servo drive |
| Format of the drive | Book |
| Phase | Three phase |
| [Us] rated supply voltage | 200...240 V - 15...10 %, 380...480 V - 15...10 % |
| Supply voltage limits | 170…264 V, 323…528 V |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network Frequency | 47.5...63 Hz |
| EMC filter | Integrated |
| Continuous output current | 24 A 8 kHz |
| Output current 3s peak | 72 A 208 V 5 s, 72 A 480 V 5 s |
| Continuous power | 6500 W 208 V, 13000 W 400 V, 13000 W 480 V |
| Nominal power | 5 kW 208 V 8 kHz, 7 kW 400 V 8 kHz, 7 kW 480 V 8 kHz |
| Line current | 21.1 A 34 % 208 V, with external line choke 1 mH, 22.5 A 45 % 400 V, with external line choke 1 mH, 19.5 A 55 % 480 V, with external line choke 1 mH, 21.9 A 106 % 208 V, without line choke, 17.3 A 126 % 400 V, without line choke, 14.6 A 129 % 480 V, without line choke |
Complementary 39
| Switching frequency | 8 kHz |
|---|---|
| Overvoltage category | III |
| Maximum leakage current | 30 mA |
| Output voltage | <= power supply voltage |
| Electrical isolation | Between power and control |
| Type of cable | Single-strand IEC cable 122 °F (50 °C)) copper 90 °C XLPE/EPR |
| Electrical connection | Terminal 3 mm², 12 AWG CN8), Terminal 5 mm², 10 AWG CN1), Terminal 5 mm², 10 AWG CN10) |
| Tightening torque | CN8 4.4 lbf.in (0.5 N.m), CN1 6.2 lbf.in (0.7 N.m), CN10 6.2 lbf.in (0.7 N.m) |
| Discrete input number | 2 safety, 6 logic |
| Discrete input type | Logic DI, Safety compliment of STO_A, compliment of STO_B |
| Sampling duration | ANA1+/ANA1-, ANA2+/ANA2- 0.25 ms analog, DI 0.25 ms discrete |
| Discrete input voltage | 24 V DC logic, 24 V DC safety |
| Discrete input logic | Positive compliment of STO_A, compliment of STO_B) 15 V EN/IEC 61131-2 type 1, Positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1, Positive or negative DI) 15 V EN/IEC 61131-2 type 1 |
| Response time | <= 5 ms compliment of STO_A, compliment of STO_B |
| Discrete output number | 5 |
| Discrete output type | Logic DO)24 V DC |
| Discrete output voltage | <= 30 V DC |
| Discrete output logic | Positive or negative DO)EN/IEC 61131-2 |
| Contact bounce time | <= 1 ms compliment of STO_A, compliment of STO_B, 0.25 µs...1.5 ms DI |
| Braking current | 50 mA |
| Analogue input number | 2 |
| Response time on output | 250 µs DO)discrete |
| Absolute accuracy error | < +/- 0.5 % |
| Linearity error | < +/- 0.1 % |
| Analogue input type | ANA1+/ANA1-, ANA2+/ANA2- analog input differential +/- 10 V >= 20 Ohm 14 bits |
| Control signal type | Servo motor encoder feedback, Pulse train output (PTO) RS422 <500 kHz <328.08 ft (100 m), Pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <3.3 ft (1 m), Pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <32.8 ft (10 m), Pulse/direction (P/D), A/B, CW/CCW RS422 <1000 kHz <328.08 ft (100 m) |
| Protection type | Against reverse polarity inputs signal, Against short-circuits outputs signal |
| Safety function | STO (safe torque off), Integrated |
| Safety level | SIL 3 EN/IEC 61508, PL = e ISO 13849-1 |
| Communication interface | Digital I/O, Integrated, Analog I/O, Integrated |
| Status LED | 1 LED (Red) servo drive voltage |
| Signalling function | Display of faults 7 segments |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Product compatibility | Servo motor BMH 5.5 in (140 mm), 2, Servo motor BMH 5.5 in (140 mm), 3, Servo motor BMH 7.5 in (190 mm), 1, Servo motor BMH 7.5 in (190 mm), 2, Servo motor BMH 7.5 in (190 mm), 3, Servo motor BMH 8.07 in (205 mm), 3, Servo motor BSH 5.5 in (140 mm), 2, Servo motor BSH 5.5 in (140 mm), 3, Servo motor BSH 5.5 in (140 mm), 4 |
| Width | 4.3 in (108 mm) |
| Height | 10.6 in (270 mm) |
| Depth | 9.3 in (237 mm) |
| Net Weight | 10.6 lb(US) (4.8 kg) |
Environment 13
| Electromagnetic compatibility | Conducted EMC, class A group 1 EN 55011, Conducted EMC, class A group 2 EN 55011, Conducted EMC, environment 2 category C3 EN/IEC 61800-3, Conducted EMC, category C2 EN/IEC 61800-3, Conducted EMC, environments 1 and 2 EN/IEC 61800-3, Electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2, Susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-3, 1.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5, Electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4, Radiated EMC, class A group 2 EN 55011, Radiated EMC, category C3 EN/IEC 61800-3 |
|---|---|
| Standards | EN/IEC 61800-5-1, EN/IEC 61800-3 |
| Product Certifications | UL, TÜV, CSA |
| IP degree of protection | IP20 conforming to EN/IEC 60529, IP20 conforming to EN/IEC 61800-5-1 |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6, 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms EN/IEC 60028-2-27 |
| Pollution degree | 2 EN/IEC 61800-5-1 |
| Environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 |
| Relative humidity | Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3 |
| Ambient air temperature for operation | 32…122 °F (0…50 °C) UL |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Type of cooling | Integrated fan |
| Operating altitude | <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions |
Show all 81 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | LXM32CD72N4 |
|---|---|
| Type designation | LXM32C |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480216220 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 4.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for LXM32CD72N4 4
-
Datasheet
ProductDownload PDF: Product data sheet LXM32CD72N4
Product data sheet LXM32CD72N4
-
Manual
ProductDownload PDF: User guide 0198441113761-EN
User guide 0198441113761-EN
-
Certificate
ProductDownload PDF: Environmental Disclosure ENVPEP1107005EN
Environmental Disclosure ENVPEP1107005EN
-
Brochure
ProductDownload PDF: Brochure 998-23091292_HMI_and_Lexium_32
Brochure 998-23091292_HMI_and_Lexium_32
Certifications
Certifications and standards
- UL
- CSA
- EN/IEC 61800-5-1
- EN/IEC 61800-3
Quick answers
Questions about the LXM32C
What is the rated current of LXM32C?
The rated current of LXM32C is 24 A.
Which supply voltage is LXM32C rated for?
The rated operational voltage of LXM32C is 200–240 – 380–480 V AC.
What motor power is LXM32C rated for?
The rated motor power of LXM32C is 7 (400) kW.
What is the HS code of LXM32C for customs?
The tariff (HS) code on file for LXM32C is 850152.
What is the EAN of LXM32C?
The EAN (GTIN) of LXM32C is 3606480216220.
Where does LXM32C ship from, and how fast?
LXM32C ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
