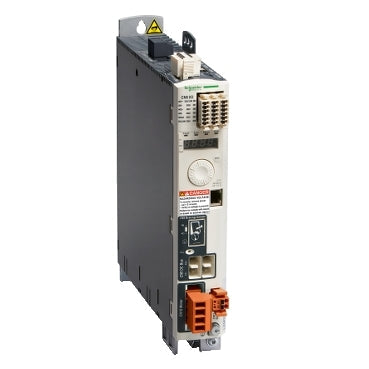

Schneider Electric LXM32CD18N4 Lexium 32 LXM32C 6A 400V Three-Phase Servo Drive

% $-804.59
Schneider Electric LXM32CD18N4 Lexium 32 LXM32C Servo Drive – 6 A Three phase
Schneider Electric LXM32CD18N4 Lexium 32 LXM32C Servo Drive – 6 A Three phase

Schneider Electric LXM32CD18N4 Lexium 32 LXM32C 6A 400V Three-Phase Servo Drive

Brand: Schneider Electric
Reference No: LXM32CD18N4
Series: Lexium 32
Tariff Code (HS): 850152
Rated Current: 6 A
Power: 1.8 kW (400 V)
Rated Voltage: 200...240 V / 380...480 V
Communication: Modbus (integrated, RJ45); digital I/O and analog I/O integrated
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$804.59

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LXM32CD18N4 is a three-phase Lexium 32 'C' compact servo drive for a single axis, rated for 6 A continuous output at 8 kHz from a 200-240 V / 380-480 V supply and 1.8 kW nominal power at 400 V. It integrates Modbus and two analog reference inputs alongside STO (SIL 3 / PL e).

Technical Specifications

Reference LXM32CD18N4
Brand Schneider Electric
Range Lexium 32
Device short name LXM32C
Product type Motion servo drive
GTIN 3606480076701
Format of the drive Book
Phase Three phase
[Us] rated supply voltage 200...240 V / 380...480 V
Supply voltage limits 170…264 V / 323…528 V
Continuous output current (8 kHz) 6 A
Output current, 3 s peak 18 A at 208 V, 18 A at 480 V (5 s)
Continuous power 1700 W at 208 V, 3300 W at 400/480 V
Nominal power 1.2 kW at 208 V, 1.8 kW at 400/480 V
Line current (with external line choke) 6 A at 208 V, 6.9 A at 400 V, 6 A at 480 V
Discrete inputs 2 safety + 6 logic, 24 V DC, plus 2 analog inputs (±10 V, 14-bit)
Discrete outputs 5, 24 V DC logic, ≤30 V DC
Safety function STO (safe torque off), integrated — SIL 3 (EN/IEC 61508), PL e (ISO 13849-1)
Servo motor compatibility Servo motor BMH 100 mm (1 or 2 pole pairs), BMH 70 mm (3), BSH 70 mm (3), BSH 100 mm (1 or 2 pole pairs)
Dimensions (W x H x D) 48 x 270 x 237 mm
Net weight 2.0 kg (4.4 lb)
IP degree of protection IP20 (EN/IEC 60529, EN/IEC 61800-5-1)
Type of cooling Integrated fan
Ambient air temperature, operation 0…50 °C (UL)

Certifications & Standards

  • CE
  • TÜV
  • UL
  • CSA
  • EN/IEC 61800-3
  • EN/IEC 61800-5-1

Selection Notes

At 1.8 kW nominal, the LXM32CD18N4 is the higher-power option in the three-phase LXM32C pair, above the 0.9 kW LXM32CD12N4; pick between them on continuous torque rather than the peak-current digits in the reference. Choose the LXM32AD18N4 instead if the machine already runs a CANopen/CANmotion network and doesn't need this drive's analog ±10 V or pulse-train inputs.

Applications

Single-axis servo control from an analog ±10 V reference or pulse-train indexer on three-phase machines up to 1.8 kW.

Technical Details

Short Description
Lexium 32 LXM32C servo drive, 6 A continuous, 3-phase 200-480 V, 1.8 kW at 400 V, Modbus, analog/pulse control, STO.
Rated Current (Ampere)
6 A
Rated Voltage (VAC)
200...240 V / 380...480 V
Protection Type
IP20
Power (kW)
1.8 kW (400 V)
Delivery Date (Days)
30 days
Model Number
LXM32C
Tariff Code
850152
