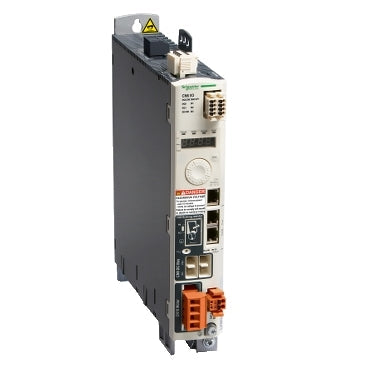

Lexium 32Schneider Electric LXM32AU90M2 Lexium 32 LXM32A 3A 230V Single-Phase Servo Drive
Lexium 32 LXM32A servo drive, 3 A continuous, single-phase 100-230 V, 0.5 kW at 230 V, CANmotion/CANopen, STO, IP20.
Description
About the LXM32A
About the LXM32A
The Schneider Electric LXM32AU90M2 is the smallest single-phase drive in the Lexium 32 LXM32A line, delivering 3 A continuous output at 8 kHz from a 100-120 V / 200-240 V supply and 0.5 kW nominal power at 230 V. It cools by natural convection rather than a fan, and integrates CANmotion, CANopen, and an STO safety function (SIL 3 / PL e).
Certifications & Standards
- CE
- TÜV
- UL
- CSA
- EN/IEC 61800-3
- EN/IEC 61800-5-1
Selection Notes
At 3 A continuous / 0.5 kW, the LXM32AU90M2 is sized for the smallest BSH 55 mm and BMH/BSH 70 mm motors in the compatibility list, and its natural-convection cooling (no fan) reflects that lower dissipation. Step up to the LXM32AD18M2 (6 A) or LXM32AD30M2 (10 A) in the same single-phase Book frame once the load exceeds this drive's 0.5 kW continuous power at 230 V.
Applications
Single-axis servo control on light-duty, single-phase machines running a CANopen or CANmotion motion network, matched to a BSH 55 mm or 70 mm servo motor.
Specification
Full specification
Main 15
| Range of Product | Lexium 32 |
|---|---|
| Device short name | LXM32A |
| Product or Component Type | Motion servo drive |
| Format of the drive | Book |
| Phase | Single phase |
| [Us] rated supply voltage | 100...120 V - 15...10 %, 200...240 V - 15...10 % |
| Supply voltage limits | 85…132 V, 170…264 V |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network Frequency | 47.5...63 Hz |
| EMC filter | Integrated |
| Continuous output current | 3 A 8 kHz |
| Output current 3s peak | 6 A 115 V 5 s, 9 A 230 V 5 s |
| Continuous power | 400 W 115 V, 900 W 230 V |
| Nominal power | 0.3 kW 115 V 8 kHz, 0.5 kW 230 V 8 kHz |
| Line current | 5.2 A 90 % 115 V, with external line choke 2 mH, 6.3 A 107 % 230 V, with external line choke 2 mH, 5.4 A 159 % 115 V, without line choke, 4.5 A 166 % 230 V, without line choke |
Complementary 40
| Switching frequency | 8 kHz |
|---|---|
| Overvoltage category | III |
| Maximum leakage current | 30 mA |
| Output voltage | <= power supply voltage |
| Electrical isolation | Between power and control |
| Type of cable | Single-strand IEC cable 122 °F (50 °C)) copper 90 °C XLPE/EPR |
| Electrical connection | Terminal 3 mm², 12 AWG CN8), Terminal 5 mm², 10 AWG CN1), Terminal 5 mm², 10 AWG CN10) |
| Tightening torque | CN8 4.4 lbf.in (0.5 N.m), CN1 6.2 lbf.in (0.7 N.m), CN10 6.2 lbf.in (0.7 N.m) |
| Discrete input number | 1 capture, 2 safety, 4 logic |
| Discrete input type | Capture CAP, Logic DI, Safety compliment of STO_A, compliment of STO_B |
| Sampling duration | DI 0.25 ms discrete |
| Discrete input voltage | 24 V DC capture, 24 V DC logic, 24 V DC safety |
| Discrete input logic | Positive compliment of STO_A, compliment of STO_B) 15 V EN/IEC 61131-2 type 1, Positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1, Positive or negative DI) 15 V EN/IEC 61131-2 type 1 |
| Response time | <= 5 ms compliment of STO_A, compliment of STO_B |
| Discrete output number | 2 |
| Discrete output type | Logic DO)24 V DC |
| Discrete output voltage | <= 30 V DC |
| Discrete output logic | Positive or negative DO)EN/IEC 61131-2 |
| Contact bounce time | <= 1 ms compliment of STO_A, compliment of STO_B, 2 µs CAP, 0.25 µs...1.5 ms DI |
| Braking current | 50 mA |
| Response time on output | 250 µs DO)discrete |
| Control signal type | Servo motor encoder feedback |
| Protection type | Against reverse polarity inputs signal, Against short-circuits outputs signal |
| Safety function | STO (safe torque off), Integrated |
| Safety level | SIL 3 EN/IEC 61508, PL = e ISO 13849-1 |
| Communication interface | CANmotion, Integrated, CANopen, Integrated |
| Connector type | RJ45 (labelled CN4 or CN5) CANmotion, RJ45 (labelled CN4 or CN5) CANopen |
| Method of access | Slave |
| Transmission rate | 1 Mbps 13.1 ft (4 m) CANopen, CANmotion, 125 kbps 1640.4 ft (500 m) CANopen, CANmotion, 250 kbps 820.2 ft (250 m) CANopen, CANmotion, 50 kbps 3280.8 ft (1000 m) CANopen, CANmotion, 500 kbps 328.08 ft (100 m) CANopen, CANmotion |
| Number of addresses | 1…127 CANopen, CANmotion |
| Communication service | 1 receive SDO CANmotion, 1 transmit SDO CANmotion, 2 PDOs conforming to DSP 402 CANmotion, 2 SDOs receive CANopen, 2 SDOs send CANopen, 4 configurable mapping PDOs CANopen, CANopen device profile drives and motion control CANopen, CANmotion, Emergency CANopen, CANmotion, Event-triggered, time-triggered, remotely requested,sync (cyclic), sync(acyclic) CANopen, Node guarding, heartbeat CANopen, Position control mode CANmotion, Position control, speed profile, torque profile and homing mode CANopen, Sync CANmotion |
| Status LED | 1 LED (Red) servo drive voltage, 1 LED error, 1 LED RUN |
| Signalling function | Display of faults 7 segments |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Product compatibility | Servo motor BMH 2.8 in (70 mm), 1, Servo motor BSH 2.8 in (70 mm), 1, Servo motor BSH 2.2 in (55 mm), 3, Servo motor BSH 2.2 in (55 mm), 1, Servo motor BSH 2.2 in (55 mm), 2 |
| Width | 1.9 in (48 mm) |
| Height | 10.6 in (270 mm) |
| Depth | 9.3 in (237 mm) |
| Net Weight | 3.7 lb(US) (1.7 kg) |
Environment 13
| Electromagnetic compatibility | Conducted EMC, class A group 1 EN 55011, Conducted EMC, class A group 2 EN 55011, Conducted EMC, environment 2 category C3 EN/IEC 61800-3, Conducted EMC, category C2 EN/IEC 61800-3, Conducted EMC, environments 1 and 2 EN/IEC 61800-3, Electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2, Susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-3, 1.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5, Electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4, Radiated EMC, class A group 2 EN 55011, Radiated EMC, category C3 EN/IEC 61800-3 |
|---|---|
| Standards | EN/IEC 61800-3, EN/IEC 61800-5-1 |
| Product Certifications | UL, CSA, TÜV |
| IP degree of protection | IP20 conforming to EN/IEC 60529, IP20 conforming to EN/IEC 61800-5-1 |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6, 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms EN/IEC 60028-2-27 |
| Pollution degree | 2 EN/IEC 61800-5-1 |
| Environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 |
| Relative humidity | Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3 |
| Ambient air temperature for operation | 32…122 °F (0…50 °C) UL |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Type of cooling | Natural convection |
| Operating altitude | <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions |
Show all 82 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | LXM32AU90M2 |
|---|---|
| Type designation | LXM32A |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480076749 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 1.7 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
