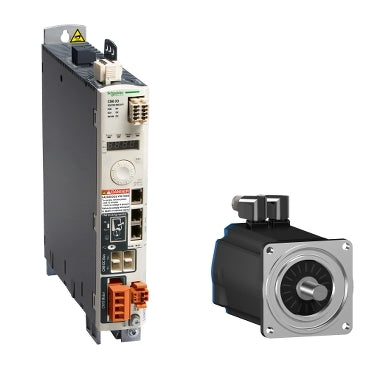

Schneider Electric LXM32AD30M2 Lexium 32 LXM32A 10A 230V Single-Phase Servo Drive

At 10 A continuous output current, the Schneider Electric LXM32AD30M2 is the highest-current LXM32A single-phase servo drive in this range, running from a 100-120 V / 200-240 V supply and reaching 1.6 kW nominal power at 230 V. It is a Lexium 32 Book-format single-axis drive with integrated CANmotion/CANopen ports and STO (SIL 3 / PL e).

Technical Specifications

Certifications & Standards

• CE
• TÜV
• UL
• CSA
• EN/IEC 61800-3
• EN/IEC 61800-5-1

Selection Notes

The wider 68 mm housing (versus 48 mm on the other LXM32A single-phase variants) reflects the higher 10 A continuous rating and its heat dissipation, not an extra feature set. The '30' in the reference marks the 230 V, 5-second peak current, not the continuous rating — at 10 A continuous / 1.6 kW it is the step above the 6 A LXM32AD18M2 in the same single-phase frame, so pick it when the load's continuous torque, not just its peak acceleration current, needs the extra headroom.

Applications

Single-axis servo control on single-phase machines whose continuous torque demand exceeds the 6 A LXM32AD18M2, running on a CANopen or CANmotion motion network.
