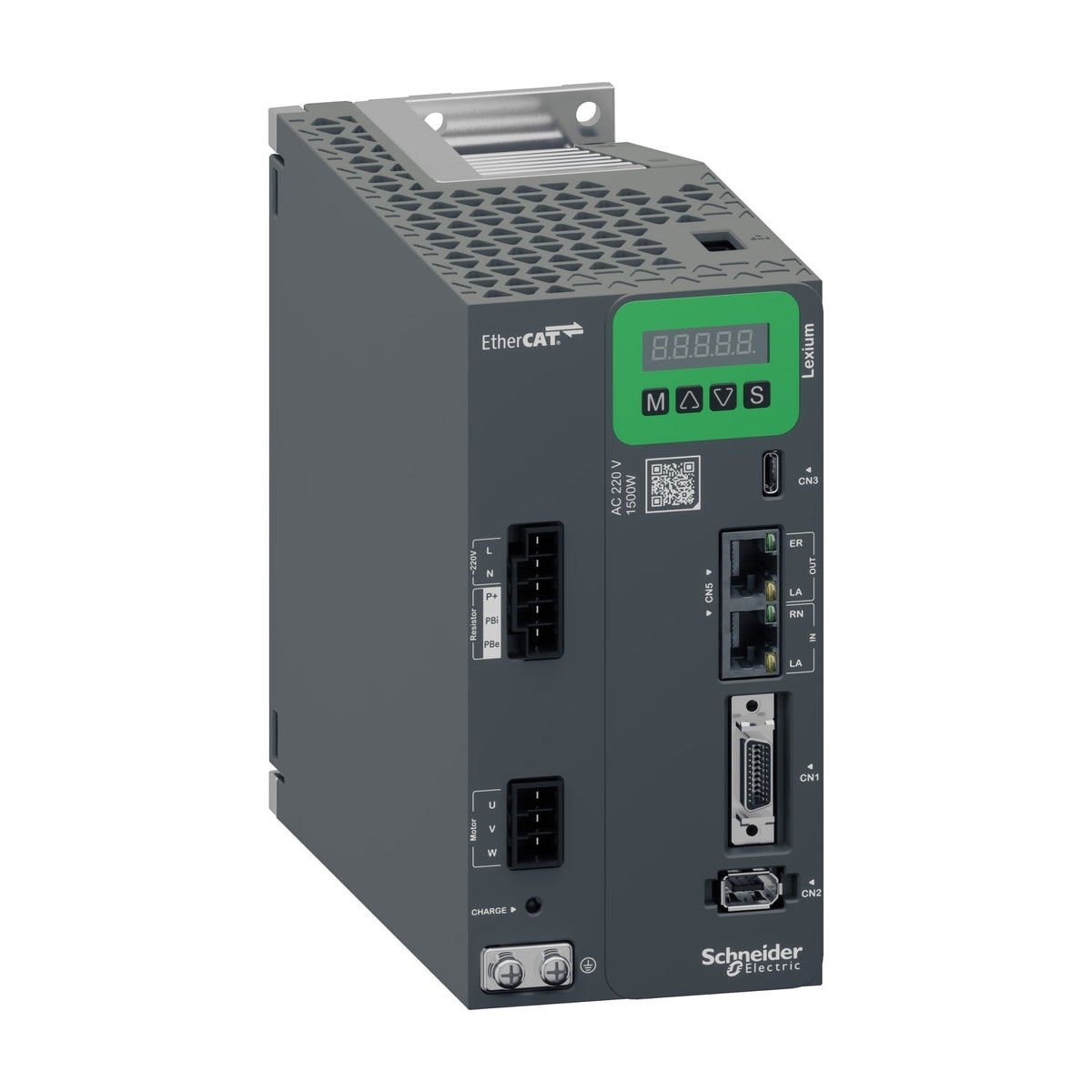

Schneider Electric LXM18ESU15M2X Lexium 18 LXM18E 1.5kW Single-Phase 220V Servo Drive

The Schneider Electric LXM18ESU15M2X is a Lexium 18 servo drive rated for 1.5 kW continuous power at 220...240 V single-phase supply, delivering 9.5 A continuous output current at 8 kHz switching frequency. It integrates EtherCAT communication, digital I/O, and Safe Torque Off (STO) in a 78 x 155.5 x 166.5 mm housing weighing 1.79 kg.

Technical Specifications

Selection Notes

The 1.5 kW / 9.5 A continuous rating is the highest single-phase output in the Lexium 18 line sharing this 78 mm housing, sized for axes near the practical limit of a 220...240 V single-phase feed before three-phase supply becomes necessary. Line current reaches 15.8 A at 220 V, which is the value to check against branch-circuit capacity rather than the 9.5 A output rating. The 29.2 A / 3 s peak covers acceleration transients only; continuous operation above 9.5 A requires moving to a three-phase Lexium 18 drive. It operates across a -5 to 45 degC ambient range and up to 1000 m altitude without derating, and ships in 7-unit packs for panel-build spares planning.
