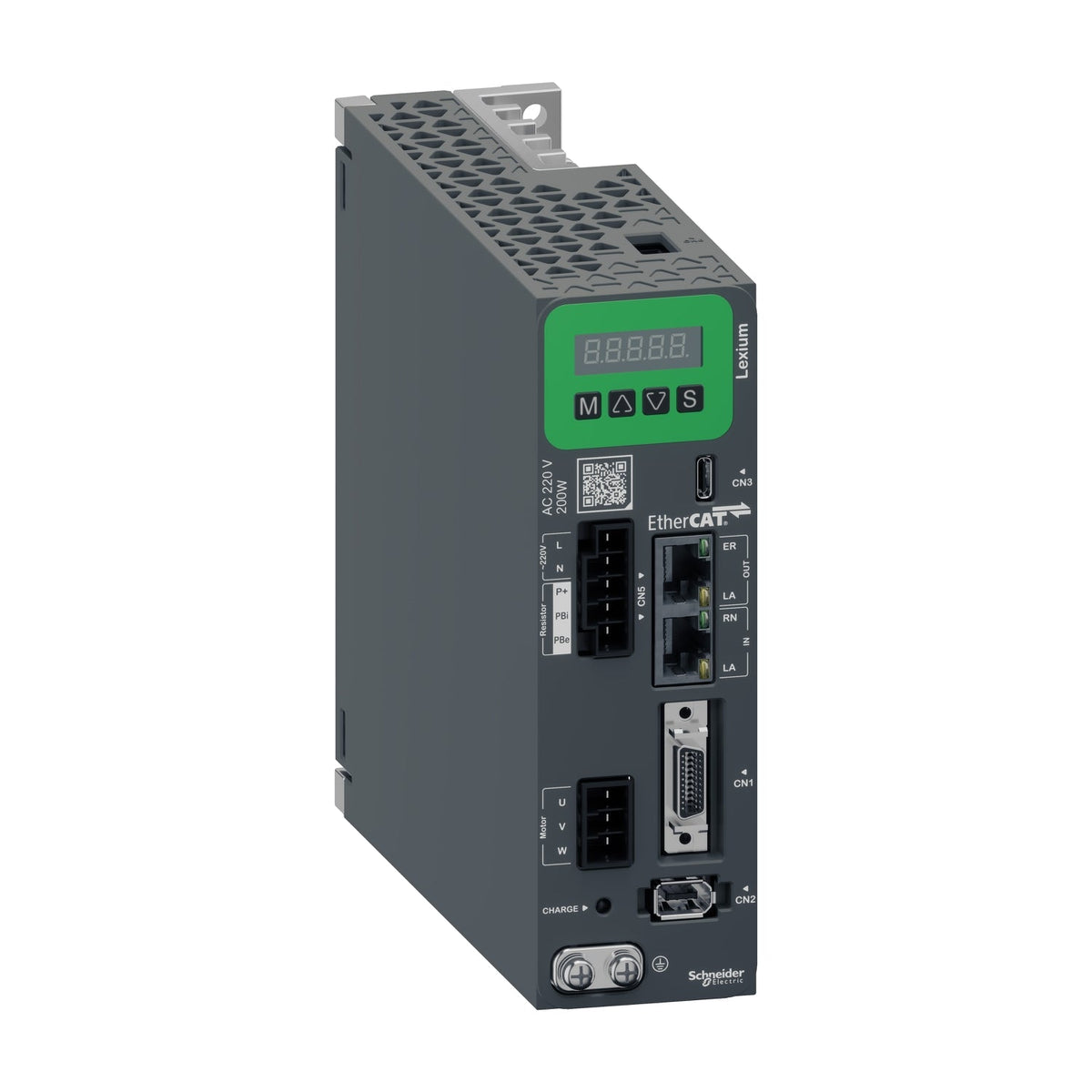

Easy Lexium 18Schneider Electric LXM18ESU02M2X Lexium 18 LXM18E 0.2kW Single-Phase 220V Servo Drive
Easy Lexium 18 servo drive, 0.2 kW, 1.6 A continuous output, EtherCAT, integrated STO, 220-240 V single-phase.
Description
About the LXM18E
About the LXM18E
The Schneider Electric LXM18ESU02M2X is an Easy Lexium 18 servo drive rated for 0.2 kW continuous power at 220...240 V single-phase supply, delivering 1.6 A continuous output current at 8 kHz switching frequency. It integrates EtherCAT communication, digital I/O, and Safe Torque Off (STO) in a compact 48 x 155.5 x 166.5 mm housing weighing 1.19 kg.
Selection Notes
The 0.2 kW / 1.6 A continuous rating is the entry point in the Easy Lexium 18 EtherCAT line, sized for low-inertia axes rather than the higher-power variants that share the same 48 mm-wide enclosure family. Because STO is integrated rather than an add-on option, the drive can be wired into a safety circuit without external safety relays for basic torque-off stop functions. EtherCAT plus onboard digital I/O lets it run as a networked axis and still expose discrete control points on the same connector set, without a separate fieldbus gateway. It operates across a -5 to 45 degC ambient range and up to 1000 m altitude without derating, and ships in 11-unit packs for panel-build spares planning.
Specification
Full specification
Main 5
| Range of product | Lexium 18 |
|---|---|
| Device short name | LXM18E |
| Product or component type | Motion servo drive |
| Format of the drive | Compact housing |
| Line current | 2.7 A 205.04 % at 220...240 V, single phase |
Complementary 15
| Network number of phases | Single phase |
|---|---|
| [Us] rated supply voltage | 220...240 V (- 15...10 %) for single phase |
| Supply voltage limits | 170…255 V single phase |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| Continuous output current | 1.6 A at 8 kHz |
| Output current 3s peak | 5.9 A |
| Nominal power | 0.2 kW at 220...240 V 8 kHz |
| Switching frequency | 8 kHz |
| Safety function | STO (safe torque off), integrated |
| Communication interface | EtherCAT, integrated, Digital I/O, integrated |
| Width | 48 mm |
| Height | 155.5 mm |
| Depth | 166.5 mm |
| Net weight | 1.19 kg |
Environment 4
| EMC filter | Without EMC filter |
|---|---|
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -5…45 °C |
| Operating altitude | 0...1000 m |
Show all 48 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | LXM18ESU02M2X |
|---|---|
| Type designation | LXM18E |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.6 cm |
| Package 1 Width | 22.1 cm |
| Package 1 Length | 20.9 cm |
| Package 1 Weight | 1.3 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 11 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 14.7 kg |
| Shipping weight | 1.19 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for LXM18ESU02M2X
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the LXM18E
What is the rated current of LXM18E?
The rated current of LXM18E is 1.6 A.
Which supply voltage is LXM18E rated for?
The rated operational voltage of LXM18E is 220–240 V AC.
What motor power is LXM18E rated for?
The rated motor power of LXM18E is 0.2 kW.
What is the HS code of LXM18E for customs?
The tariff (HS) code on file for LXM18E is 850440.
Where does LXM18E ship from, and how fast?
LXM18E ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
