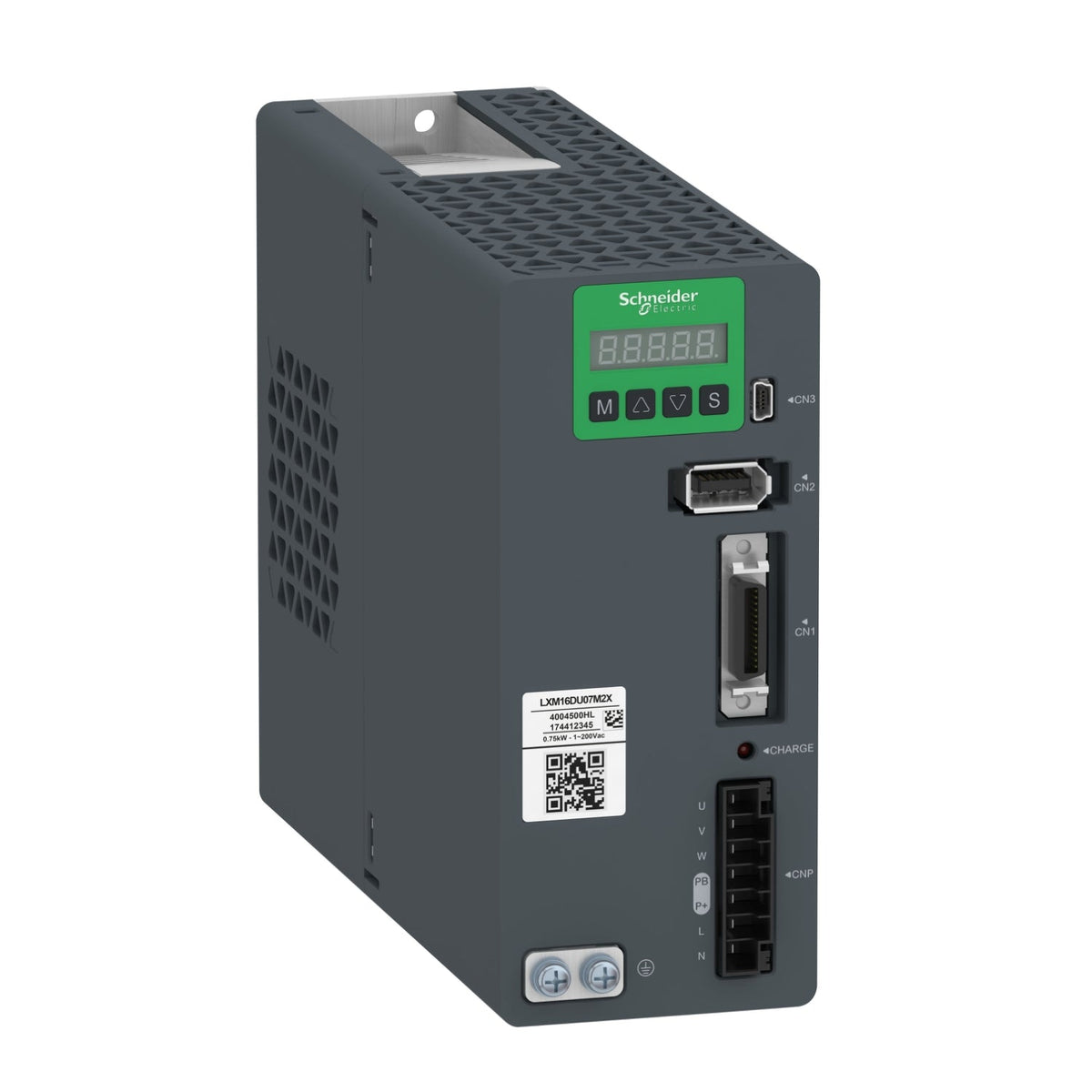

Lexium 16DSchneider Electric LXM16DU07M2X Lexium 16D LXM16D 0.75 kW 1-Phase 200-240 V Servo Drive
Lexium 16D servo drive, single-phase 200-240 V, 0.75 kW continuous power, 5.1 A output current, fan-cooled.
Description
About the LXM16D
About the LXM16D
The Schneider Electric LXM16DU07M2X is a single-phase 200-240 V Lexium 16D servo drive rated for 0.75 kW continuous power and a 5.1 A continuous output current, with a 20 A three-second peak for BCH16 servo motors up to the 80 mm frame. Fan-cooled at this power level, it integrates a Mini-B USB port for Modbus commissioning.
Certifications & Standards
- CE
- IEC 61800-5-1
Selection Notes
At 0.75 kW continuous and a 5.1 A continuous output current, the LXM16DU07M2X is the only drive in this range that needs fan cooling rather than natural convection, and it pairs with the largest BCH16 motor frame (80 mm) in a wider housing (65 mm vs 52 mm on the smaller units). The 20 A three-second peak gives roughly twice the short-term overload margin of the mid-range variant, which matters for load cycles with fast accel/decel rather than steady running. Plan for fan airflow clearance in the panel layout, unlike the smaller natural-convection units in the family.
Specification
Full specification
Main 5
| Range of product | Lexium 16D |
|---|---|
| Product or component type | Motion servo drive |
| Device short name | LXM16D |
| Format of the drive | Compact housing |
| Line current | 7.9 A 166.7 % at 220 V, single phase |
Complementary 37
| Network number of phases | Single phase |
|---|---|
| [Us] rated supply voltage | 220 V (- 15...10 %) for single phase |
| Supply voltage limits | 200…240 V single phase |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| Continuous output current | 5.1 A |
| Output current 3s peak | 20 A at 220 V |
| Continuous power | 750 W at 220 V |
| Nominal power | 0.75 kW at 220 V 8 kHz |
| Switching frequency | 8 kHz |
| Overvoltage category | III |
| Maximum leakage current | 3.5 mA |
| Output voltage | <= power supply voltage |
| Electrical isolation | Between power and control |
| Type of cable | 1 shielded twisted pair (temperature: 0…40 °C) |
| Electrical connection | Spring terminal, clamping capacity: 0.2...2.5 mm², 24 AWG...12 AWG (L, N, P+, PB, U, V, W) |
| Tightening torque | PE (ground): 1.4 N.m |
| Discrete input number | 6 programmable (CN1), 2 pulse train input (PTI) (CN1) |
| Discrete input voltage | 24 V DC for logic |
| Discrete input logic | Positive or negative (CN1) |
| Discrete output number | 3, 3 |
| Discrete output type | Logic (CN1) at 12...24 V DC, Pulse train output (PTO) (CN1) |
| Discrete output voltage | 12...24 V DC |
| Discrete output logic | Sink (CN1) |
| Control signal type | Servo motor encoder feedback CN2 |
| Protection type | Against reverse polarity: inputs signal, Against short-circuits: outputs signal, Against reverse polarity: outputs signal, Overcurrent: motor and driver, Overvoltage: driver, Undervoltage: driver, Overheating: driver, Overload: motor and driver, Overspeed: motor |
| Physical interface | Mini-B USB for Modbus Serial line slave |
| Status LED | 1 LED (red) charge |
| Signalling function | Servo status and fault codes five 7-segment display units |
| Marking | CE |
| Type of cooling | Fan |
| Operating position | Vertical |
| Product compatibility | Servo motor BCH16 (80 mm, 1 motor stacks) |
| Width | 65 mm |
| Height | 150 mm |
| Depth | 185.2 mm |
| Net weight | 1.5 kg |
Environment 11
| EMC filter | Without EMC filter |
|---|---|
| Electromagnetic compatibility | Conducted emission - test level: level 3 category C3 conforming to IEC 61800-3 |
| Standards | IEC 61800-5-1 |
| Product certifications | CE |
| IP degree of protection | IP20 |
| Vibration resistance | 3M4 amplitude = 3 mm (f = 9…200 Hz) conforming to IEC 60721-3-3 |
| Shock resistance | 10 gn, type I conforming to IEC 60721-3-3 |
| Relative humidity | 5…95 % without condensation |
| Ambient air temperature for operation | 0…40 °C (without derating), 40…55 °C (with derating factor) |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | <= 1000 m without derating, > 1000...2000 m with current derating |
Show all 77 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | LXM16DU07M2X |
|---|---|
| Type designation | LXM16D |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 20.5 cm |
| Package 1 Width | 24 cm |
| Package 1 Length | 11 cm |
| Package 1 Weight | 1.6 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 11.96 kg |
| Shipping weight | 1.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
