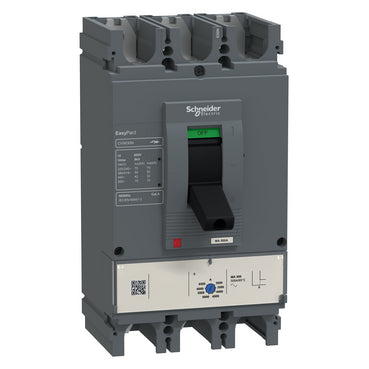

Schneider Electric LV563552 EasyPact CVS630N 3P 500 A 50 kA MA Fixed Moulded Case Circuit Breaker

% $-687.99
Schneider Electric LV563552 EasyPact CVS630N 3P 500A moulded case circuit breaker - 50kA
Schneider Electric LV563552 EasyPact CVS630N 3P 500A moulded case circuit breaker - 50kA

Schneider Electric LV563552 EasyPact CVS630N 3P 500 A 50 kA MA Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: LV563552
Catalog No: LV563552
Series: EasyPact CVS400...630
Tariff Code (HS): 85362090
Rated Current: 500 A
Breaking Type: MA
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$687.99

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV563552 is a 500 A EasyPact CVS630N moulded case circuit breaker for low-voltage distribution. Its MA trip unit gives magnetic-only short-circuit protection with an adjustable instantaneous threshold, and the 3-pole, 3D frame breaks 50 kA at 380/415 V AC under IEC 60947-2.

Technical Specifications

SKU / Reference LV563552
Brand Schneider Electric
Range EasyPact CVS630N
Device application Motor
Poles 3P
Protected poles 3D
Rated current [In] 500 A at 40 °C
Rated impulse withstand voltage [Uimp] 8 kV
Breaking capacity code N
Breaking capacity [Icu] 70 kA at 220/240 V AC, 50 kA at 380/415 V AC, 42 kA at 440 V AC
Service breaking capacity [Ics] 70 kA at 220/240 V AC, 50 kA at 380/415 V AC, 32 kA at 440 V AC
Trip unit MA, magnetic-only
Trip unit rating 500 A at 40 °C
Protection functions Short-circuit protection (magnetic)
Instantaneous pickup adjustment [Ii] 6...13 x In, adjustable
Contact position indicator Yes
Control type Toggle
Mounting Fixed, backplate support
Connection Front (upside and downside), 45 mm pitch
Dimensions (W x H x D) 140 x 255 x 110 mm
Net weight 5.2 kg
Electrical shock protection Class II
Degree of protection IP40
Ambient temperature -25...70 °C operation, -50...85 °C storage
Standards IEC 60947-2

Certifications & Standards

  • IEC
  • GOST
  • EN 60947-2
  • IEC 60947-2

Selection Notes

LV563552 uses a fixed-thermal, magnetic-only MA trip unit rather than an adjustable electronic unit, so overload protection for the 500 A rating is set at the factory and only the instantaneous threshold (6...13 x In) is field-adjustable -- a simpler, lower-cost choice where the motor or feeder's steady-state current is already known. Choose the N-frame breaking class (50 kA at 380/415 V) over a lower class whenever downstream prospective fault current exceeds a 36 kA threshold.

Technical Details

Short Description
Schneider Electric LV563552, EasyPact CVS630N, 3P 500 A, 50 kA at 380/415 V AC, MA trip
Rated Current (Ampere)
500 A
Mounting Type
Fixed, backplate
Protection Type
IP40
Catalog No
LV563552
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
CVS630N
Tariff Code
85362090
