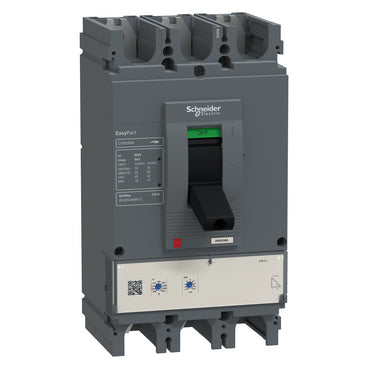

Schneider Electric LV563510 EasyPact CVS630N 3P 630 A 50 kA ETS 2.3 Fixed Moulded Case Circuit Breaker

The Schneider Electric LV563510 is a 3-pole EasyPact CVS630N moulded case circuit breaker rated 630 A with a 50 kA breaking capacity (Icu) at 380/415 V AC. It uses an electronic ETS 2.3 trip unit with adjustable long-time, short-time and instantaneous protection for distribution boards needing selective coordination. The breaker is fixed-mounted and carries IP40 front-face ingress protection.

Technical Specifications

Certifications & Standards

• GOST
• IEC
• EN 60947-2
• IEC 60947-2

Selection Notes

The ETS 2.3 electronic trip unit gives this CVS630N a 9-step adjustable long-time pick-up (Ir 250...630 A) with thermal memory, a short-time element (Isd 1.5...10x Ir) and a fixed 11x In instantaneous threshold - LSI-type selectivity the fixed-setting TM-D version of this frame cannot provide. Choose this variant over the TM-D CVS630N when the installation needs tunable overload curves or discrimination with downstream breakers rather than fixed thermal-magnetic settings.
