Part number
LV563309
Model no
CVS630F
$843.76 On request Dispatch — · From TürkiyeGet a Quote

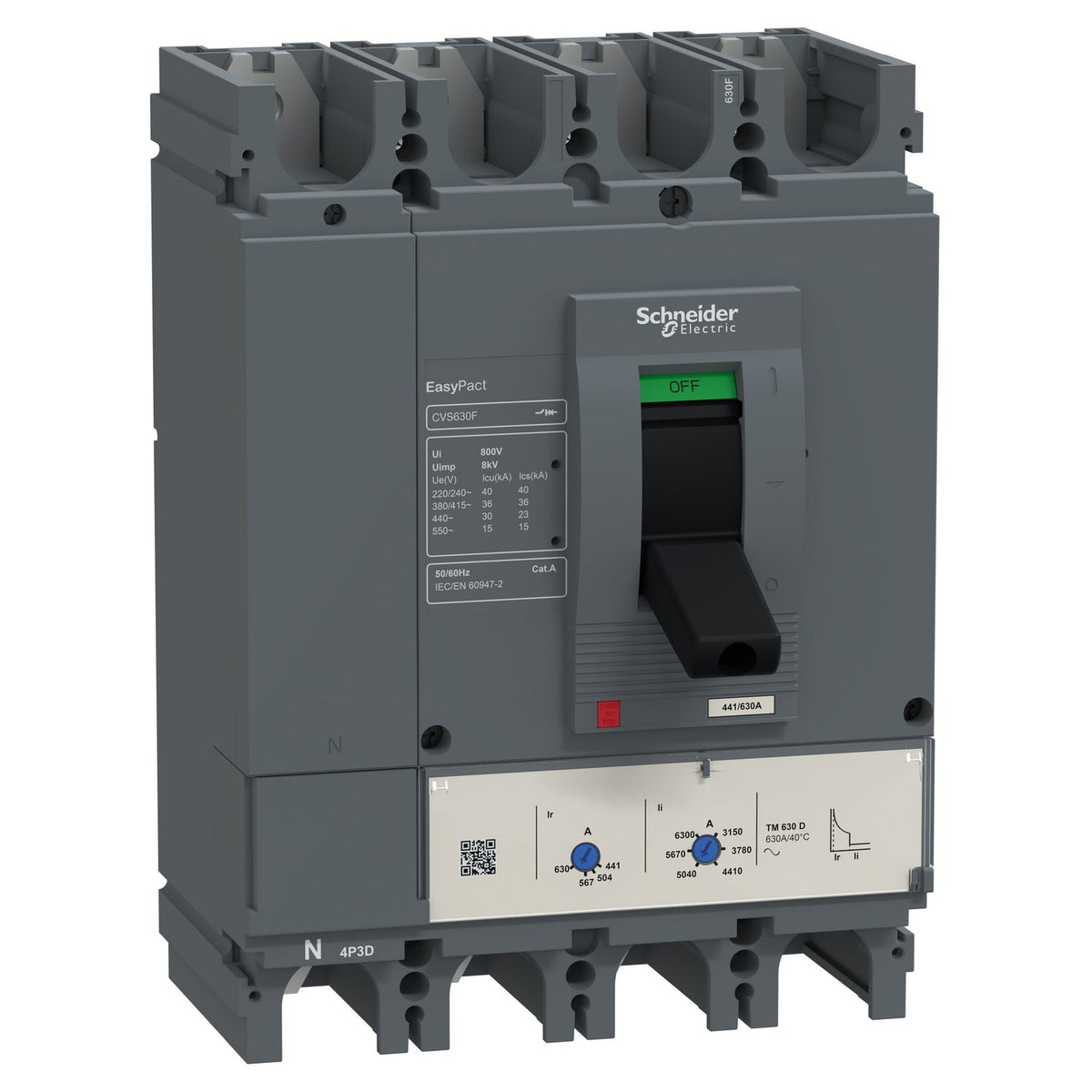

Schneider Electric LV563309 EasyPact CVS630F 4P 600 A 36 kA TM-D Fixed Moulded Case Circuit Breaker

Schneider Electric CVS630F TM-D thermal-magnetic MCCB, 600 A, 36 kA Icu, distribution protection.

Rated current
600 A
Rated operational voltage
440 V AC
Description

About the CVS630F

The Schneider Electric LV563309 is a 4-pole EasyPact CVS630F moulded case circuit breaker rated 600 A with a 36 kA breaking capacity (Icu) at 380/415 V AC. It uses a TM-D thermal-magnetic trip unit combining adjustable thermal overload with magnetic short-circuit protection for general distribution feeders. The breaker is fixed-mounted and carries IP40 front-face ingress protection.

Certifications & Standards

  • IEC
  • GOST
  • IEC 60947-2
  • EN 60947-2

Selection Notes

The TM-D trip unit pairs an adjustable thermal overload element (Ir 0.7...1x In, thermal protection adjustment range 420...600 A) with a magnetic trip (4...8x In) in one device, so this CVS630F covers both overload and short-circuit duty without a separate relay - the configuration to pick over the MA (magnetic-only) version of the same frame when no downstream overload device is installed. Its 36 kA Icu at 380/415 V AC sets the fault-current ceiling for this breaking-code-F frame; move to a higher breaking-code letter if prospective fault current exceeds that rating.

Specification

Full specification

81 values · Last verified 30 Oct 2026

Main 17

Range EasyPact
Range of product EasyPact CVS400...630
Product name EasyPact CVS
Device short name CVS630F
Product or component type Circuit breaker
Device application Distribution
Poles description 4P
Protected poles description 3D
Earth leakage protection (Vigi add on) Without
[In] rated current 600 A at 40 °C
Network type AC
Utilisation category Category A
[Icu] Breaking capacity 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 30 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit rating 600 A at 40 °C
Protection type Short-circuit protection (magnetic), Overload protection (thermal)

Complementary 27

[Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-2
Network frequency 50/60 Hz
Breaking capacity code F
[Ics] rated service breaking capacity 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 23 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Neutral position Left
Mechanical durability 15000 cycles
Electrical durability 4000 cycles 415 V In conforming to IEC 60947-2
Control type Toggle
Thermal protection adjustment range 420…600 A
Neutral protection setting No protection (3D)
Long time pick-up adjustment type Ir Adjustable
Long time pick-up adjustment range 0.7...1 x In
Long time delay adjustment type Fixed
Instantaneous pick-up adjustment type Ii Adjustable
Instantaneous pick-up adjustment range 4...8 x In
Contact position indicator Yes
Mounting support Backplate
Mounting mode Fixed
Upside connection Front
Downside connection Front
Connections - terminals Screw connection
Connection pitch 45 mm
Compatibility code CVS630
Width 185 mm
Depth 110 mm
Height 255 mm
Net weight 7.1 kg

Environment 7

Standards IEC 60947-2, EN 60947-2
Product certifications IEC, GOST
Electrical shock protection class Class II
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Show all 81 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV563309
Type designation CVS630F
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.700 cm
Package 1 Width 20.000 cm
Package 1 Length 28.900 cm
Package 1 Weight 7.080 kg
Unit Type of Package 2 S03
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 14.648 kg
Unit Type of Package 3 P12
Number of Units in Package 3 32
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 243.488 kg
Shipping weight 7.1 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV563309

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60947-2
  • EN 60947-2
Quick answers

Questions about the CVS630F

What is the rated current of CVS630F?

The rated current of CVS630F is 600 A.

Which supply voltage is CVS630F rated for?

The rated operational voltage of CVS630F is 440 V AC.

What is the HS code of CVS630F for customs?

The tariff (HS) code on file for CVS630F is 853620.

Where does CVS630F ship from, and how fast?

CVS630F ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
