Part number
LV525506
Model no
CVS250F
$314.35 On request Dispatch — · From TürkiyeGet a Quote

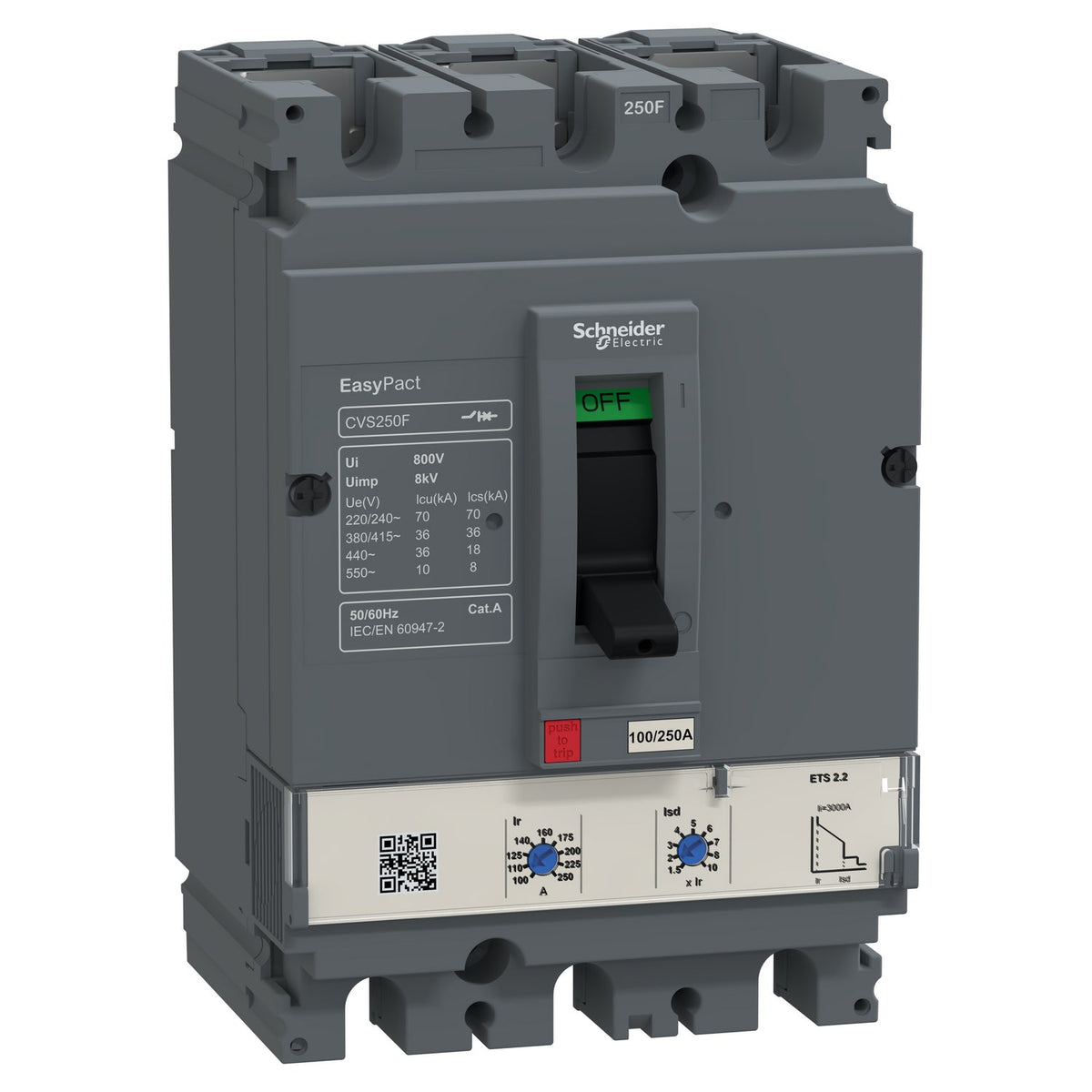

Schneider Electric LV525506 EasyPact CVS250F 3P 250 A 36 kA ETS 2.2 Fixed Moulded Case Circuit Breaker

Schneider Electric CVS250F ETS 2.2 electronic-trip MCCB, 250 A, 36 kA Icu, adjustable LSI protection.

Rated current
250 A
Rated operational voltage
440 V AC
Description

About the CVS250F

The Schneider Electric LV525506 is a 3-pole EasyPact CVS250F moulded case circuit breaker rated 250 A with a 36 kA breaking capacity (Icu) at 380/415 V AC. It uses an electronic ETS 2.2 trip unit with adjustable long-time, short-time and instantaneous protection for distribution boards needing selective coordination. The breaker is fixed-mounted and carries IP40 front-face ingress protection.

Certifications & Standards

  • CCC
  • CB
  • EN 60947-2
  • IEC 60947-2

Selection Notes

The ETS 2.2 electronic trip unit gives this CVS250F an adjustable long-time pick-up (Ir 100...250 A) plus a fixed-delay short-time element (Isd 1.5...10x Ir, 0.02 s) ahead of the 3000 A instantaneous threshold - protection a thermal-magnetic TM-D breaker in the same frame cannot replicate. Pick this variant over the TM-D or MA versions of the CVS250 frame when the board needs tunable overload curves or must discriminate with downstream breakers rather than fixed thermal-magnetic settings.

Specification

Full specification

82 values · Last verified 30 Oct 2026

Main 16

Range EasyPact
Range of product EasyPact CVS100...250
Product name EasyPact CVS
Device short name CVS250F
Product or component type Circuit breaker
Device application Distribution
Poles description 3P
Protected poles description 3D
Earth leakage protection (Vigi add on) Without
[In] rated current 250 A at 40 °C
Network type AC
Utilisation category Category A
[Icu] Breaking capacity 36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Trip unit name ETS 2.2
Trip unit technology Electronic
Protection type Short time short-circuit protection with fixed delay, Overload protection (long time), Instantaneous short-circuit protection

Complementary 29

[Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-2
Network frequency 50/60 Hz
Breaking capacity code F
[Ics] rated service breaking capacity 18 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 20000 cycles
Electrical durability 10000 cycles 415 V In conforming to IEC 60947-2
Control type Toggle
Long time pick-up adjustment type Ir Adjustable 9 settings
Long time pick-up adjustment range 100...250 A
Long time delay adjustment type Fixed
[tr] long-time delay adjustment range 11 s at 7.2 x Ir, 16 s at 6 x Ir, 400 s at 1.5 x Ir
Short-time pick-up adjustment type Isd Adjustable 9 settings
[Isd] short-time pick-up adjustment range 1.5...10 x Ir
Short-time delay adjustment type Fixed
[tsd] short-time delay adjustment range 0.02 s
Instantaneous pick-up adjustment type Ii Fixed
Instantaneous pick-up adjustment range 3000 A
Contact position indicator Yes
Mounting support Backplate
Mounting mode Fixed
Upside connection Front
Downside connection Front
Connections - terminals Screw connection
Connection pitch 35 mm
Compatibility code CVS250
Width 105 mm
Depth 86 mm
Height 161 mm
Net weight 2.19 kg

Environment 7

Standards EN 60947-2, IEC 60947-2
Product certifications CCC, CB
Electrical shock protection class Class II
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Show all 82 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV525506
Type designation CVS250F
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 13.000 cm
Package 1 Length 19.000 cm
Package 1 Weight 1.986 kg
Unit Type of Package 2 S02
Number of Units in Package 2 4
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 8.204 kg
Unit Type of Package 3 P12
Number of Units in Package 3 64
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 143.264 kg
Shipping weight 2.19 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV525506

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CCC
  • EN 60947-2
  • IEC 60947-2
Quick answers

Questions about the CVS250F

What is the rated current of CVS250F?

The rated current of CVS250F is 250 A.

Which supply voltage is CVS250F rated for?

The rated operational voltage of CVS250F is 440 V AC.

What is the HS code of CVS250F for customs?

The tariff (HS) code on file for CVS250F is 853620.

Where does CVS250F ship from, and how fast?

CVS250F ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
