Schneider Electric LV510330 EasyPact CVS100F 3P 16 A 36 kA TM-D Fixed Moulded Case Circuit Breaker

% $-108.66
Schneider Electric LV510330 EasyPact CVS100F TM-D Moulded Case Circuit Breaker
Schneider Electric LV510330 EasyPact CVS100F TM-D Moulded Case Circuit Breaker

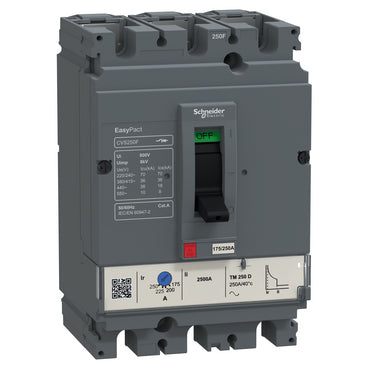

Schneider Electric LV510330 EasyPact CVS100F 3P 16 A 36 kA TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: LV510330
Catalog No: LV510330
Series: EasyPact CVS100...250
Tariff Code (HS): 85362090
Rated Current: 16 A
Breaking Type: TM-D
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$108.66

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV510330 is a 3-pole EasyPact CVS100F moulded case circuit breaker rated 16 A, with a breaking capacity of 36 kA at 380/415 V AC. It uses a TM-D thermal-magnetic trip unit, combining adjustable thermal overload protection with a fixed magnetic short-circuit trip, and mounts as a fixed, backplate-mounted device for distribution applications up to 16 A.

Technical Specifications

SKU / Reference LV510330
Brand Schneider Electric
Range of Product EasyPact CVS100...250
Device short name CVS100F
Product type Circuit breaker
Device application Distribution
Poles 3P (3D protected)
[In] Rated current 16 A at 40 °C
[Icu] Breaking capacity 70 kA at 220/240 V AC, 36 kA at 380/415 V AC, 36 kA at 440 V AC
[Ics] Rated service breaking capacity 70 kA at 220/240 V AC, 36 kA at 380/415 V AC, 18 kA at 440 V AC
[Uimp] Rated impulse withstand voltage 8 kV
Trip unit TM-D (thermal-magnetic)
Protection type Overload protection (thermal), short-circuit protection (magnetic)
Thermal protection adjustment range 11.2…16 A
Instantaneous pick-up [Ii] 190 A (fixed)
Mounting / Connection Fixed, backplate mounted, front/front screw connection
Dimensions (W x H x D) 105 x 161 x 86 mm
Net weight 1.5 kg
IP degree of protection IP40
Electrical shock protection class Class II (front face)

Certifications & Standards

  • IEC
  • GOST
  • IEC 60947-2
  • EN 60947-2

Selection Notes

The TM-D trip unit on the LV510330 pairs an adjustable thermal overload stage (11.2–16 A) with a fixed magnetic instantaneous trip at 190 A, so the overload threshold can be tuned to the connected load while the short-circuit threshold stays fixed. In the CVS100F frame, 36 kA at 380/415 V AC covers distribution circuits exposed to higher prospective fault currents than the CVS100B (25 kA) code supports.

Technical Details

Short Description
Schneider Electric LV510330 – EasyPact CVS100F 3P 16 A MCCB, 36 kA at 415 V AC, TM-D trip unit.
Rated Current (Ampere)
16 A
Mounting Type
Fixed
Protection Type
IP40
Catalog No
LV510330
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
CVS100F
Tariff Code
85362090

Downloads

Customers say

Pairs well with

Related products
