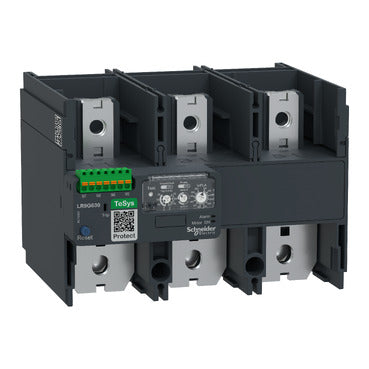

Schneider Electric LR9G630 TeSys Giga Electronic Overload Relay 160-630 A Class 5E-30E LC1G Relay

TeSys Giga electronic overload relay, 160-630 A, class 5E-30E, ground-fault and phase-imbalance protection.

Rated current
630 A
Rated operational voltage
24–500 V AC
Display
LED, trip indicator
EAN
3606481912589
Description

About the LR9G

The Schneider Electric LR9G630 is a TeSys LRG electronic thermal overload relay for the TeSys Giga (LC1G) high-power contactor range, adjustable over 160-630 A with a selectable class 5E-30E trip curve, push-in control connection, and built-in ground-fault and phase-imbalance protection.

Certifications & Standards

  • CB Scheme
  • CCC
  • cULus
  • UKCA
  • ATEX
  • EAC
  • IEC 60947-4-1
  • IEC 60947-5-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1

Selection Notes

The 160-630 A range sizes this relay to the TeSys Giga contactor it is paired with; set the class dial to 10E for general-purpose duty and move to 20E or 30E only for high-inertia loads with long starting times, since a higher class number tolerates a longer overcurrent before tripping. Built-in ground-fault and phase-imbalance alarm outputs remove the need for a separate earth-fault relay on the same feeder, and the push-in control terminals cut the wiring time against the screw-clamp LR9D/LR97D relays used on the smaller TeSys D/K frames.

Specification

Full specification

53 values · Last verified 30 Oct 2026

Main 8

Range TeSys
Product name TeSys LRG
Product or Component Type Electronic thermal overload relay
Device short name LR9G
Relay application Motor protection
Network type AC
Thermal overload class Class 5E...30E IEC 60947-4-1
Thermal protection adjustment range 160…630 A

Complementary 19

Network Frequency 30...60 Hz, 100 Hz
Overvoltage category III
Tripping threshold 1.125 +/- 0.07 In IEC 60947-4-1
Protection type Ground fault protection 0…1 s - alarm circuit IEC 60947-4-1, Ground fault protection 0…1 s - alarm circuit UL 60947-4-1, Phase loss 0…4 s - alarm circuit, Phase imbalance 0…5 s - alarm circuit IEC 60947-4-1, Phase imbalance 0…5 s - alarm circuit UL 60947-4-1
Local signalling LED, Trip indicator
Contacts type and composition 1 NO + 1 NC
[Ith] conventional free air thermal current 5 A
[Uc] control circuit voltage 24...500 V AC 50/60 Hz, 24...250 V DC
[Ue] rated operational voltage 1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
Reset Automatic reset, Manual
Mechanical durability 7000 cycles
Surge withstand 4 kV
Electromagnetic compatibility EMC immunity conforming to IEC 60947-4-1, Emission tests criteria A conforming to IEC 60947-4-1, Immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3, Voltage dips and interruptions immunity test conforming to SEMI F47
Connections - terminals Power circuit: bar - busbar cross section: 50 x 10 mm, Power circuit: lugs-ring terminals 1 0.5 in² (300 mm²), Control circuit: push-in 1 0.0003…0.004 in² (0.2…2.5 mm²) - cable stiffness: solid stranded without cable end, Control circuit: push-in 1 0.0004…0.004 in² (0.25…2.5 mm²) - cable stiffness: flexible with cable end, Control circuit: push-in 2 0.0008…0.002 in² (0.5…1.0 mm²) with cable end
Tightening torque 58 N.m
Mounting support Direct on contactor, Plate
Standards EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ, UL 60335-1
Product Certifications CB Scheme, CCC, cULus, UKCA, ATEX, EU-RO-MR by DNV-GL, EAC

Environment 12

IP degree of protection IP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Protective treatment TH
Ambient air temperature for operation -13…140 °F (-25…60 °C)
Ambient Air Temperature for Storage -76…176 °F (-60…80 °C)
Permissible ambient air temperature around the device -40…140 °F (-40…60 °C) at Uc
Adjustment of dial setting -13…140 °F (-25…60 °C)
Mechanical robustness Vibrations 5…300 Hz 6 gn contactor open, Shocks 15 gn 11 ms contactor closed
Height 5.8 in (148 mm)
Width 8.3 in (211 mm)
Depth 7.3 in (186 mm)
Net Weight 6.4 lb(US) (2.9 kg)
color Dark grey
Show all 53 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LR9G630
Type designation LR9G
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481912589

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CN
Shipping weight 2.9 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
