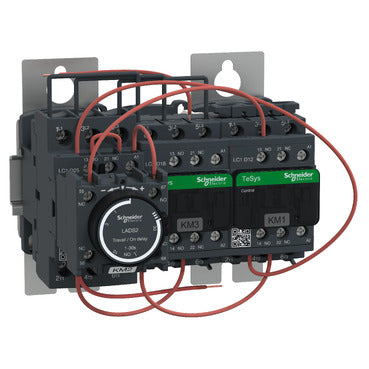

Schneider Electric LC3D18AF7 TeSys Deca Star-Delta Starter 18 A 18.5 kW 400 V 110 V AC Coil Motor Starter

Schneider Electric TeSys Deca star-delta starter, 18 A AC-3, 18.5 kW at 400 V delta connection, 110 V AC control circuit.

Rated current
18 A
Rated operational voltage
110 V AC
Motor power
18.5 kW
EAN
3389110546101
Description

About the LC3D

The Schneider Electric LC3D18AF7 is a pre-assembled TeSys Deca star-delta starter rated 18 A AC-3, delivering 18.5 kW at 400 V in delta connection from three LC1D contactors. It runs on a 110 V AC control circuit, includes a 1-30 s adjustable time-delay block and a mechanical interlock between the line and delta contactors, and mounts on a plate.

Certifications & Standards

  • RINA
  • GL
  • GOST
  • BV
  • DNV
  • CCC
  • CSA
  • LROS
  • UL
  • EN 60947-5-1
  • EN 60947-4-1
  • UL 508
  • CSA C22.2 No 14
  • IEC 60947-4-1
  • IEC 60947-5-1
  • IEC 60335-1

Selection Notes

This pre-wired assembly delivers 18.5 kW at 400 V in delta connection by sequencing three LC1D contactors through a 1-30 s adjustable time-delay block, which limits inrush current during the star-to-delta transition compared with switching a single contactor direct-on-line. The mechanical interlock keeps the line and delta contactors from closing together even if the control logic fails. Schneider ships this starter without a thermal overload relay — add one sized to the motor's full-load current before commissioning.

Specification

Full specification

67 values · Last verified 30 Oct 2026

Main 24

Range TeSys, TeSys Deca
Product name TeSys Deca
Product or Component Type Star delta starter
Device short name LC3D
Contactor application Motor control
Utilisation category AC-3
Device presentation Pre-wired
Poles description 3 x 3P
power pole contact composition 3 x 3 NO
[Ue] rated operational voltage Power circuit <= 690 V AC 25...400 Hz
[Ie] rated operational current 18 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit
Motor power kW 11 kW 220/230 V AC 50/60 Hz, 22 kW 415 V AC 50/60 Hz, 22 kW 440 V AC 50/60 Hz, 18.5 kW 380/400 V AC 50/60 Hz
Control circuit type AC 50/60 Hz
[Uc] control circuit voltage 110 V AC 50/60 Hz
Auxiliary contact composition 1 NC KM1 star contactor
[Uimp] rated impulse withstand voltage 6 kV IEC 60947
Overvoltage category III
[Ui] rated insulation voltage Power circuit 690 V IEC 60947-4-1, Power circuit 600 V CSA, Power circuit 600 V UL, Signalling circuit 690 V IEC 60947-1, Signalling circuit 600 V CSA, Signalling circuit 600 V UL
Electrical durability 1.65 Mcycles 18 A AC-3 <= 440 V
safety cover Protective cover
Interlocking type Mechanical
Mounting Support Plate
Standards EN 60947-5-1, EN 60947-4-1, UL 508, IEC 60947-4-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60335-1
Product Certifications RINA, DNV, GOST, BV, LROS (Lloyds register of shipping), GL, CSA, UL, CCC

Complementary 18

Connections - terminals Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end, Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end, Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible with cable end, Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end, Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable end, Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable end, Power circuit: screw clamp terminals 1 0.002…0.009 in² (1.5…6 mm²) - cable stiffness: flexible without cable end, Power circuit: screw clamp terminals 2 0.002…0.009 in² (1.5…6 mm²) - cable stiffness: flexible without cable end, Power circuit: screw clamp terminals 1 0.002…0.009 in² (1…6 mm²) - cable stiffness: flexible with cable end, Power circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible with cable end, Power circuit: screw clamp terminals 1 0.002…0.009 in² (1.5…6 mm²) - cable stiffness: solid without cable end, Power circuit: screw clamp terminals 2 0.002…0.009 in² (1.5…6 mm²) - cable stiffness: solid without cable end
Tightening torque Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm, Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2, Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm, Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2, Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2, Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2
Maximum operating rate 30 cyc/h 140 °F (60 °C)
Starting time 30 s
Coil technology Without built-in suppressor module
Control circuit voltage limits Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <140 °F (60 °C)), Operational: 0.8...1.1 Uc at 50 Hz (at <140 °F (60 °C)), Operational: 0.85...1.1 Uc at 60 Hz (at <140 °F (60 °C))
Inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)), 70 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))
Hold-in power consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)), 7 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))
Heat dissipation 2…3 W 50/60 Hz
Auxiliary contacts type Mechanically linked IEC 60947-5-1 3 x 1 NO + 1 NC, Mirror contact IEC 60947-4-1 3 x 1 NC
Signalling circuit frequency 25...400 Hz
Minimum switching current 5 mA for signalling circuit
minimum switching voltage 17 V signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Width 5.7 in (144 mm)
Height 4.9 in (124 mm)
Depth 5.6 in (143 mm)
Net Weight 3.81 lb(US) (1.73 kg)

Environment 11

Insulation resistance > 10 MOhm for signalling circuit
IP degree of protection IP20 front face IEC 60529
Climatic withstand IACS E10, IEC 60947-1 Annex Q category D
Protective treatment TH IEC 60068-2-30
Pollution degree 3
Ambient Air Temperature for Storage -76…176 °F (-60…80 °C)
Ambient air temperature for operation -40…158 °F (-40…70 °C) at Uc
Operating altitude 9842.52 ft (3000 m) without derating
Fire resistance 1562 °F (850 °C) IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open2 Gn, 5...300 Hz, Vibrations contactor closed4 Gn, 5...300 Hz, Shocks contactor open10 Gn for 11 ms, Shocks contactor closed15 Gn for 11 ms
Show all 67 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LC3D18AF7
Type designation LC3D
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110546101

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 1.73 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LC3D18AF7

No documents are on file for this part yet.
