Part number
LC3D09AB7
Model no
LC3D
$215.18 On request Dispatch — · From TürkiyeGet a Quote

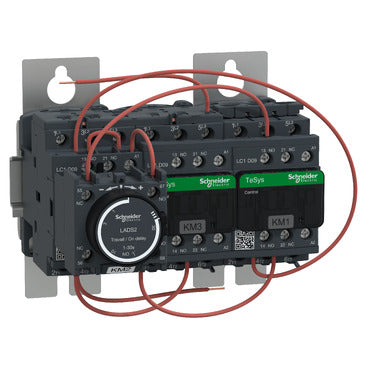

Schneider Electric LC3D09AB7 TeSys Deca Star-Delta Starter 9 A 7.5 kW 400 V 24 V AC Coil Motor Starter

Schneider Electric TeSys Deca star-delta starter, 9 A AC-3, 7.5 kW at 400 V delta connection, 24 V AC control circuit.

Rated current
9 A
Rated operational voltage
24 V AC
Motor power
7.5 kW
Description

About the LC3D

The Schneider Electric LC3D09AB7 is a pre-assembled TeSys Deca star-delta starter rated 9 A AC-3, delivering 7.5 kW at 400 V in delta connection from three LC1D contactors. It runs on a 24 V AC control circuit, includes a 1-30 s adjustable time-delay block and a mechanical interlock between the line and delta contactors, and mounts on a plate.

Certifications & Standards

  • RINA
  • GL
  • GOST
  • BV
  • DNV
  • CCC
  • CSA
  • LROS
  • UL
  • EN 60947-5-1
  • EN 60947-4-1
  • UL 508
  • CSA C22.2 No 14
  • IEC 60947-4-1
  • IEC 60947-5-1
  • IEC 60335-1

Selection Notes

This pre-wired assembly delivers 7.5 kW at 400 V in delta connection by sequencing three LC1D contactors through a 1-30 s adjustable time-delay block, which limits inrush current during the star-to-delta transition compared with switching a single contactor direct-on-line. The mechanical interlock keeps the line and delta contactors from closing together even if the control logic fails. Schneider ships this starter without a thermal overload relay — add one sized to the motor's full-load current before commissioning.

Specification

Full specification

78 values · Last verified 30 Oct 2026

Main 24

Range TeSys, TeSys Deca
Product name TeSys Deca
Product or component type Star delta starter
Device short name LC3D
Contactor application Motor control
Utilisation category AC-3
Device presentation Pre-wired
Poles description 3 x 3P
power pole contact composition 3 x 3 NO
[Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Motor power kW 4 kW at 220/230 V AC 50/60 Hz, 7.5 kW at 380/400 V AC 50/60 Hz, 7.5 kW at 415 V AC 50/60 Hz, 7.5 kW at 440 V AC 50/60 Hz
Control circuit type AC at 50/60 Hz
[Uc] control circuit voltage 24 V AC 50/60 Hz
Auxiliary contact composition 1 NC for KM1 star contactor
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Overvoltage category III
[Ui] rated insulation voltage Power circuit: 690 V conforming to IEC 60947-4-1, Power circuit: 600 V CSA certified, Power circuit: 600 V UL certified, Signalling circuit: 690 V conforming to IEC 60947-1, Signalling circuit: 600 V CSA certified, Signalling circuit: 600 V UL certified
Electrical durability 2 Mcycles 9 A AC-3 at Ue <= 440 V
safety cover Protective cover
Interlocking type Mechanical
Mounting support Plate
Standards EN 60947-5-1, UL 508, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-4-1, EN 60947-4-1, IEC 60335-1
Product certifications CCC, UL, BV, RINA, GOST, DNV, GL, CSA, LROS (Lloyds register of shipping)

Complementary 19

Connections - terminals Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end, Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end, Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end, Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end, Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end, Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end, Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end, Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end, Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end, Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Tightening torque Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Mechanical durability 15 Mcycles
Maximum operating rate 30 cyc/h 60 °C
Starting time 30 s
Coil technology Without built-in suppressor module
Control circuit voltage limits Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C), Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C), Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 20 °C), 70 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 20 °C), 7 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation 2…3 W at 50/60 Hz
Auxiliary contacts type Mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NC, Mirror contact conforming to IEC 60947-4-1 3 x 1 NC
Signalling circuit frequency 25...400 Hz
Minimum switching current 5 mA for signalling circuit
minimum switching voltage 17 V for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Width 143 mm
Height 124 mm
Depth 143 mm
Net weight 1.53 kg

Environment 11

Insulation resistance > 10 MOhm for signalling circuit
IP degree of protection IP20 front face conforming to IEC 60529
Climatic withstand conforming to IACS E10, conforming to IEC 60947-1 Annex Q category D
Protective treatment TH conforming to IEC 60068-2-30
Pollution degree 3
Ambient air temperature for storage -60…80 °C
Ambient air temperature for operation -40…70 °C at Uc
Operating altitude 3000 m without derating
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open: 2 Gn, 5...300 Hz, Vibrations contactor closed: 4 Gn, 5...300 Hz, Shocks contactor open: 10 Gn for 11 ms, Shocks contactor closed: 15 Gn for 11 ms
Show all 78 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LC3D09AB7
Type designation LC3D
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 16.000 cm
Package 1 Width 17.700 cm
Package 1 Length 23.200 cm
Package 1 Weight 1.582 kg
Unit Type of Package 2 S04
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 10.732 kg
Shipping weight 1.53 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LC3D09AB7

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CCC
  • EN 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • IEC 60947-4-1
  • EN 60947-4-1
  • IEC 60335-1
Quick answers

Questions about the LC3D

What is the rated current of LC3D?

The rated current of LC3D is 9 A.

Which supply voltage is LC3D rated for?

The rated operational voltage of LC3D is 24 V AC.

What motor power is LC3D rated for?

The rated motor power of LC3D is 7.5 kW.

What is the HS code of LC3D for customs?

The tariff (HS) code on file for LC3D is 85365080.

Where does LC3D ship from, and how fast?

LC3D ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
