Part number
LC1G500LSEA
Model no
LC1G
$2,355.33 On request Dispatch — · From TürkiyeGet a Quote

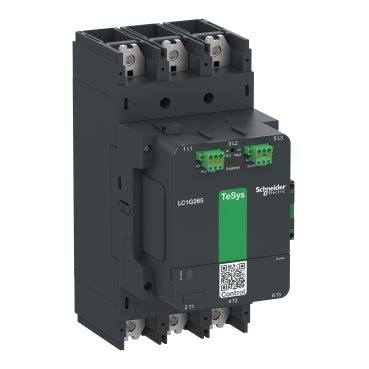

Schneider Electric LC1G500LSEA TeSys Giga Contactor 3P 3NO AC-3 500 A 250 kW 200-500 V AC/DC Coil Contactor

TeSys Giga contactor, 3P 3NO, 500 A AC-3, 250 kW at 400 V, 200-500 V AC/DC coil.

Rated current
500 A
Rated operational voltage
200–500 V AC
Motor power
250 kW
Poles
3P
EAN
3606481922496
Description

About the LC1G

The Schneider Electric LC1G500LSEA is a 3-pole TeSys Giga contactor rated 500 A AC-3, switching motors up to 250 kW at 400 V. It runs on a 200-500 V AC/DC wide-band electronic coil with PLC-level control input and remote contact-wear diagnosis, ships with a 1 NO + 1 NC auxiliary block, and withstands 4.0 kA for 10 s on a short circuit on the 290 x 140 mm Giga frame.

Certifications & Standards

  • CE
  • UKCA
  • CCC
  • cULus
  • EN/IEC 60947-4-1

Selection Notes

Rated 500 A AC-3 (250 kW at 400 V), the LC1G500LSEA is sized for motor starting and running duty; the 4.0 kA short-time withstand for 10 s is the figure to check against the upstream breaker's let-through when coordinating selectivity on a motor feeder. Its 200-500 V AC/DC coil accepts PLC-level control signals directly and reports contact wear remotely, which matters when this 290 mm-tall frame sits in a line-up a technician can't walk up to on every shift. Where the motor load is close to the 250 kW boundary, the next current step up in the same Giga 3-pole family keeps the AC-3 rating comfortably inside its nameplate rather than at the ceiling.

Specification

Full specification

64 values · Last verified 29 Oct 2026

Main 11

Range TeSys
Range of Product TeSys Giga
Product or Component Type Contactor
Device short name LC1G
Contactor application Power switching Motor control
Utilisation category AC-1 AC-3 AC-3e AC-4 AC-5a AC-5b AC-6a AC-6b AC-8b AC-8a DC-1 DC-3 DC-5
Poles description 3P
[Ue] rated operational voltage <= 1000 V AC 50/60 Hz <= 460 V DC
[Ie] rated operational current 700 A (at <104 °F (40 °C)) at <= 1000 V AC-1 500 A (at <140 °F (60 °C)) at <= 440 V AC-3
[Uc] control circuit voltage 200...500 V AC 50/60 Hz 200...500 V DC
Control circuit voltage limits Operational: 0.8 Uc Min...1.1 Uc Max (at <140 °F (60 °C)) Drop-out: 0.1 Uc Max...0.45 Uc Min (at <140 °F (60 °C))

Complementary 32

[Uimp] rated impulse withstand voltage 8 kV
Overvoltage category III
Rated breaking capacity 4600 A at 440 V
[Icw] rated short-time withstand current 4.0 kA - 10 s 2.8 kA - 30 s 2.2 kA - 1 min 1.5 kA - 3 min 1.2 kA - 10 min
Associated fuse rating 500 A aM at <= 440 V for motor 400 A aM at <= 690 V for motor 800 A gG at <= 690 V 600 A UL Type L at <= 600 V
Average impedance 0.00008 Ohm
[Ui] rated insulation voltage 1000 V
Power dissipation per pole 40 W AC-1 - Ith 700 A 20 W AC-3 - Ith 500 A
Compatibility code LC1G
Pole contact composition 3 NO
Auxiliary contact composition 1 NO + 1 NC
Motor power kW 147 kW at 230 V AC 50/60 Hz (AC-3e) 250 kW at 400 V AC 50/60 Hz (AC-3e) 250 kW at 415 V AC 50/60 Hz (AC-3e) 280 kW at 440 V AC 50/60 Hz (AC-3e) 315 kW at 500 V AC 50/60 Hz (AC-3e) 355 kW at 690 V AC 50/60 Hz (AC-3e) 335 kW at 1000 V AC 50/60 Hz (AC-3e) 160 kW at 230 V AC 50/60 Hz (AC-3) 250 kW at 400 V AC 50/60 Hz (AC-3) 250 kW at 415 V AC 50/60 Hz (AC-3) 315 kW at 440 V AC 50/60 Hz (AC-3) 355 kW at 500 V AC 50/60 Hz (AC-3) 355 kW at 690 V AC 50/60 Hz (AC-3) 335 kW at 1000 V AC 50/60 Hz (AC-3) 150 kW at 230 V AC 50/60 Hz (AC-4) 250 kW at 400 V AC 50/60 Hz (AC-4) 250 kW at 415 V AC 50/60 Hz (AC-4) 295 kW at 440 V AC 50/60 Hz (AC-4) 295 kW at 500 V AC 50/60 Hz (AC-4) 355 kW at 690 V AC 50/60 Hz (AC-4) 280 kW at 1000 V AC 50/60 Hz (AC-4)
Maximum Horse Power Rating 150 hp at 200/208 V 60 Hz 200 hp at 230/240 V 60 Hz 400 hp at 460/480 V 60 Hz 450 hp at 575/600 V 60 Hz
Coil technology Built-in bidirectional peak limiting
Safety reliability level B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1 B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Mechanical durability 8 Mcycles
inrush power in VA (50/60 Hz, AC) 535 VA
inrush power in W (DC) 300 W
hold-in power consumption in VA (50/60 Hz, AC) 15.4 VA
hold-in power consumption in W (DC) 8.6 W
Operating time 40...70 ms closing 15...50 ms opening
Maximum operating rate 600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1 150 cyc/h AC-4
Connections - terminals Power circuit: bar 2 - busbar cross section: 32 x 10 mm Power circuit: lugs-ring terminals 1 0.3 in2 (185 mm2) Power circuit: bolted connection Control circuit: push-in 1 0.0003...0.004 in2 (0.2...2.5 mm2) - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.0004...0.004 in2 (0.25...2.5 mm2) - cable stiffness: flexible with cable end Control circuit: push-in 2 0.0008...0.002 in2 (0.5...1.0 mm2) with cable end Control circuit: push-in 0.001...0.004 in2 (0.75...2.5 mm2) - cable stiffness: solid stranded without cable end Control circuit: push-in 0.001...0.004 in2 (0.75...2.5 mm2) - cable stiffness: flexible with cable end
Connection pitch 1.8 in (45 mm)
Mounting Support Plate
Standards EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-1 UL 60335-2-40:Annex JJ
Product Certifications CB Scheme CCC cULus EAC CE UKCA EU-RO-MR by DNV-GL
Tightening torque 309.8 lbf.in (35 N.m)
Height 11.4 in (290 mm)
Width 5.5 in (140 mm)
Depth 8.9 in (226 mm)
Net Weight 17.2 lb(US) (7.8 kg)

Environment 7

IP degree of protection IP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106
Ambient Air Temperature for Operation -13...140 °F (-25...60 °C)
Ambient Air Temperature for Storage -76...176 °F (-60...80 °C)
Mechanical robustness Vibrations 5...300 Hz 2 gn contactor open Vibrations 5...300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed
color Dark grey
Protective treatment TH
Permissible ambient air temperature around the device -40...158 °F (-40...70 °C) at Uc
Show all 64 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LC1G500LSEA
Type designation LC1G
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481922496

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CZ
Shipping weight 7.8 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 29 Oct 2026

Documents

Documents for LC1G500LSEA

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
  • UKCA
  • CCC
  • EAC
  • CB Scheme
Quick answers

Questions about the LC1G

What is the rated current of LC1G?

The rated current of LC1G is 500 A.

Which supply voltage is LC1G rated for?

The rated operational voltage of LC1G is 200–500 V AC.

What motor power is LC1G rated for?

The rated motor power of LC1G is 250 kW.

What is the HS code of LC1G for customs?

The tariff (HS) code on file for LC1G is 85365080.

What is the EAN of LC1G?

The EAN (GTIN) of LC1G is 3606481922496.

Where does LC1G ship from, and how fast?

LC1G ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
