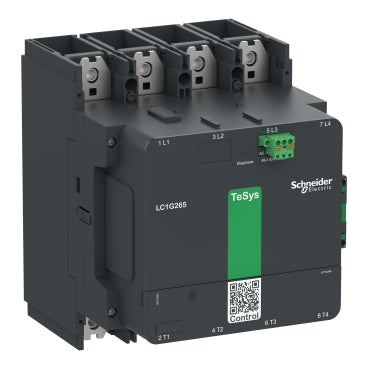

TeSys Giga contactor, 4P 4NO, 385 A AC-1, 48-130 V AC/DC V AC/DC coil.
The Schneider Electric LC1G2654EHEN is a 4-pole TeSys Giga contactor rated 385 A AC-1 at up to 440 V, for heavy resistive and power-switching duty such as heater banks, capacitor banks or bypass circuits. It runs on a 48-130 V AC/DC wide-band electronic coil for low-voltage control loops and ships with a 1 NO + 1 NC auxiliary block factory-fitted on the 225 x 185 mm Giga frame.
Rated 385 A AC-1, the LC1G2654EHEN is sized for power-switching and resistive duty — heater banks, capacitor banks, bus-tie and bypass circuits — rather than motor starting; the 2380 A breaking capacity and 2.2 kA 10 s short-time withstand are what matter for coordinating with an upstream breaker on this frame. It carries a 48-130 V AC/DC coil. Local contact-wear diagnosis (CWD) is read directly at the device; where the panel is inaccessible or centrally monitored, the LSEA electronic-coil variant of the same current frame adds remote diagnostics without changing the mechanical footprint.
| Range | TeSys |
|---|---|
| Range of Product | TeSys Giga |
| Product or Component Type | Contactor |
| Device short name | LC1G |
| Contactor application | Power switching |
| Utilisation category | AC-3 AC-3e AC-1 AC-5a AC-5b AC-6a AC-6b DC-1 DC-3 DC-5 |
| Poles description | 4P |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz <= 460 V DC |
| [Ie] rated operational current | 265 A (at <140 °F (60 °C)) at <= 440 V AC-3 385 A (at <104 °F (40 °C)) at <= 1000 V AC-1 |
| [Uc] control circuit voltage | 48...130 V AC 50/60 Hz 48...130 V DC |
| Control circuit voltage limits | Operational: 0.8 Uc Min...1.1 Uc Max (at <140 °F (60 °C)) Drop-out: 0.1 Uc Max...0.45 Uc Min (at <140 °F (60 °C)) |
| [Uimp] rated impulse withstand voltage | 8 kV |
|---|---|
| Overvoltage category | III |
| [Ith] conventional free air thermal current | 385 A (at 104 °F (40 °C)) |
| Rated breaking capacity | 2380 A at 440 V |
| [Icw] rated short-time withstand current | 2.2 kA - 10 s 1.23 kA - 30 s 0.95 kA - 1 min 0.62 kA - 3 min 0.48 kA - 10 min |
| Associated fuse rating | 315 A aM at <= 440 V for motor 250 A aM at <= 690 V for motor 400 A gG at <= 690 V 450 A UL Type J at <= 600 V |
| Average impedance | 0.000144 Ohm |
| [Ui] rated insulation voltage | 1000 V |
| Power dissipation per pole | 20 W AC-1 - Ith 385 A 11 W AC-3 - Ith 265 A |
| Compatibility code | LC1G |
| Pole contact composition | 4 NO |
| Auxiliary contact composition | 1 NO + 1 NC |
| Irms rated making capacity | 3320 A at 440 V |
| Coil technology | Built-in bidirectional peak limiting |
| Safety reliability level | B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1 B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Mechanical durability | 8 Mcycles |
| inrush power in VA (50/60 Hz, AC) | 780 VA |
| inrush power in W (DC) | 695 W |
| hold-in power consumption in VA (50/60 Hz, AC) | 17.6 VA |
| hold-in power consumption in W (DC) | 7.8 W |
| Operating time | 40...70 ms closing 15...50 ms opening |
| Maximum operating rate | 600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1 |
| Connections - terminals | Power circuit: bar 2 - busbar cross section: 32 x 10 mm Power circuit: lugs-ring terminals 1 0.3 in2 (185 mm2) Control circuit: push-in 1 0.0003...0.004 in2 (0.2...2.5 mm2) - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.0004...0.004 in2 (0.25...2.5 mm2) - cable stiffness: flexible with cable end Control circuit: push-in 2 0.0008...0.002 in2 (0.5...1.0 mm2) with cable end Control circuit: push-in 0.001...0.004 in2 (0.75...2.5 mm2) - cable stiffness: solid stranded without cable end Control circuit: push-in 0.001...0.004 in2 (0.75...2.5 mm2) - cable stiffness: flexible with cable end |
| Connection pitch | 1.8 in (45 mm) |
| Mounting Support | Plate |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 UL 60335-1 UL 60335-2-40:Annex JJ |
| Product Certifications | CB Scheme CCC cULus EAC CE UKCA EU-RO-MR by DNV-GL |
| Tightening torque | 309.8 lbf.in (35 N.m) |
| Height | 8.9 in (225 mm) |
| Width | 7.3 in (185 mm) |
| Depth | 8.9 in (226 mm) |
| Net Weight | 18.3 lb(US) (8.3 kg) |
| IP degree of protection | IP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106 |
|---|---|
| Ambient Air Temperature for Operation | -13...140 °F (-25...60 °C) |
| Ambient Air Temperature for Storage | -76...176 °F (-60...80 °C) |
| Mechanical robustness | Vibrations 5...300 Hz 2 gn contactor open Vibrations 5...300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed |
| color | Dark grey |
| Protective treatment | TH |
| Permissible ambient air temperature around the device | -40...158 °F (-40...70 °C) at Uc |
| Part number | LC1G2654EHEN |
|---|---|
| Type designation | LC1G |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481922069 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CZ |
|---|---|
| Shipping weight | 8.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 29 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of LC1G is 385 A.
The rated operational voltage of LC1G is 48–130–DC V DC.
The tariff (HS) code on file for LC1G is 85365080.
The EAN (GTIN) of LC1G is 3606481922069.
