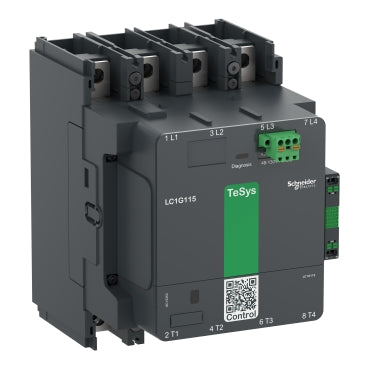

Schneider Electric LC1G2254EHEN TeSys Giga Contactor 4P 4NO AC-1 330 A 48-130 V AC/DC V AC/DC Coil Contactor

The Schneider Electric LC1G2254EHEN is a 4-pole TeSys Giga contactor rated 330 A AC-1 at up to 440 V, for heavy resistive and power-switching duty such as heater banks, capacitor banks or bypass circuits. It runs on a 48-130 V AC/DC wide-band electronic coil for low-voltage control loops and ships with a 1 NO + 1 NC auxiliary block factory-fitted on the 193 x 143 mm Giga frame.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• CCC
• cULus
• EN/IEC 60947-4-1

Selection Notes

Rated 330 A AC-1, the LC1G2254EHEN is sized for power-switching and resistive duty — heater banks, capacitor banks, bus-tie and bypass circuits — rather than motor starting; the 2050 A breaking capacity and 1.8 kA 10 s short-time withstand are what matter for coordinating with an upstream breaker on this frame. It carries a 48-130 V AC/DC coil. Local contact-wear diagnosis (CWD) is read directly at the device; where the panel is inaccessible or centrally monitored, the LSEA electronic-coil variant of the same current frame adds remote diagnostics without changing the mechanical footprint.
