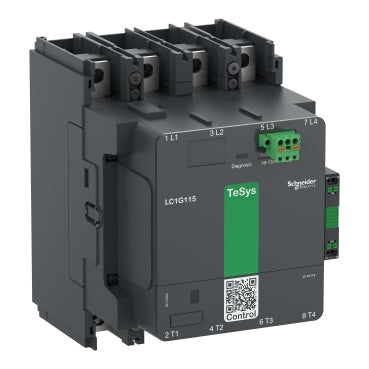

TeSys Giga contactor, 4P 4NO, 305 A AC-1, 48-130 V AC/DC V AC/DC coil.
The Schneider Electric LC1G1854EHEN is a 4-pole TeSys Giga contactor rated 305 A AC-1 at up to 440 V, for heavy resistive and power-switching duty such as heater banks, capacitor banks or bypass circuits. It runs on a 48-130 V AC/DC wide-band electronic coil for low-voltage control loops and ships with a 1 NO + 1 NC auxiliary block factory-fitted on the 193 x 143 mm Giga frame.
Rated 305 A AC-1, the LC1G1854EHEN is sized for power-switching and resistive duty — heater banks, capacitor banks, bus-tie and bypass circuits — rather than motor starting; the 1610 A breaking capacity and 1.5 kA 10 s short-time withstand are what matter for coordinating with an upstream breaker on this frame. It carries a 48-130 V AC/DC coil. Local contact-wear diagnosis (CWD) is read directly at the device; where the panel is inaccessible or centrally monitored, the LSEA electronic-coil variant of the same current frame adds remote diagnostics without changing the mechanical footprint.
| Range | TeSys |
|---|---|
| Range of Product | TeSys Giga |
| Product or Component Type | Contactor |
| Device short name | LC1G |
| Contactor application | Power switching |
| Utilisation category | AC-3 AC-3e AC-1 AC-5a AC-5b AC-6a AC-6b DC-1 DC-3 DC-5 |
| Poles description | 4P |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz <= 460 V DC |
| [Ie] rated operational current | 185 A (at <140 °F (60 °C)) at <= 440 V AC-3 305 A (at <104 °F (40 °C)) at <= 1000 V AC-1 |
| [Uc] control circuit voltage | 48...130 V AC 50/60 Hz 48...130 V DC |
| Control circuit voltage limits | Operational: 0.8 Uc Min...1.1 Uc Max (at <140 °F (60 °C)) Drop-out: 0.1 Uc Max...0.45 Uc Min (at <140 °F (60 °C)) |
| [Uimp] rated impulse withstand voltage | 8 kV |
|---|---|
| Overvoltage category | III |
| [Ith] conventional free air thermal current | 305 A (at 104 °F (40 °C)) |
| Rated breaking capacity | 1610 A at 440 V |
| [Icw] rated short-time withstand current | 1.5 kA - 10 s 0.92 kA - 30 s 0.74 kA - 1 min 0.5 kA - 3 min 0.4 kA - 10 min |
| Associated fuse rating | 200 A aM at <= 440 V for motor 160 A aM at <= 690 V for motor 315 A gG at <= 690 V 300 A UL Type J at <= 600 V |
| Average impedance | 0.00017 Ohm |
| [Ui] rated insulation voltage | 1000 V |
| Power dissipation per pole | 20 W AC-1 - Ith 305 A 6 W AC-3 - Ith 185 A |
| Compatibility code | LC1G |
| Pole contact composition | 4 NO |
| Auxiliary contact composition | 1 NO + 1 NC |
| Irms rated making capacity | 2310 A at 440 V |
| Coil technology | Built-in bidirectional peak limiting |
| Safety reliability level | B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1 B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Mechanical durability | 8 Mcycles |
| inrush power in VA (50/60 Hz, AC) | 640 VA |
| inrush power in W (DC) | 445 W |
| hold-in power consumption in VA (50/60 Hz, AC) | 18.7 VA |
| hold-in power consumption in W (DC) | 7.8 W |
| Operating time | 40...70 ms closing 15...50 ms opening |
| Maximum operating rate | 600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1 |
| Connections - terminals | Power circuit: bar 2 - busbar cross section: 25 x 6 mm Power circuit: lugs-ring terminals 1 0.3 in2 (185 mm2) Control circuit: push-in 1 0.0003...0.004 in2 (0.2...2.5 mm2) - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.0004...0.004 in2 (0.25...2.5 mm2) - cable stiffness: flexible with cable end Control circuit: push-in 2 0.0008...0.002 in2 (0.5...1.0 mm2) with cable end Control circuit: push-in 0.001...0.004 in2 (0.75...2.5 mm2) - cable stiffness: solid stranded without cable end Control circuit: push-in 0.001...0.004 in2 (0.75...2.5 mm2) - cable stiffness: flexible with cable end |
| Connection pitch | 1.4 in (35 mm) |
| Mounting Support | Plate |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 UL 60335-1 UL 60335-2-40:Annex JJ |
| Product Certifications | CB Scheme CCC cULus EAC CE UKCA EU-RO-MR by DNV-GL |
| Tightening torque | 159.3 lbf.in (18 N.m) |
| Height | 7.6 in (193 mm) |
| Width | 5.6 in (143 mm) |
| Depth | 7.6 in (193 mm) |
| Net Weight | 9.3 lb(US) (4.2 kg) |
| IP degree of protection | IP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106 |
|---|---|
| Ambient Air Temperature for Operation | -13...140 °F (-25...60 °C) |
| Ambient Air Temperature for Storage | -76...176 °F (-60...80 °C) |
| Mechanical robustness | Vibrations 5...300 Hz 2 gn contactor open Vibrations 5...300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed |
| color | Dark grey |
| Protective treatment | TH |
| Permissible ambient air temperature around the device | -40...158 °F (-40...70 °C) at Uc |
| Part number | LC1G1854EHEN |
|---|---|
| Type designation | LC1G |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481922045 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CZ |
|---|---|
| Shipping weight | 4.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
