Part number
LC1G115EHEN
Model no
LC1G
$353.84 On request Dispatch — · From TürkiyeGet a Quote

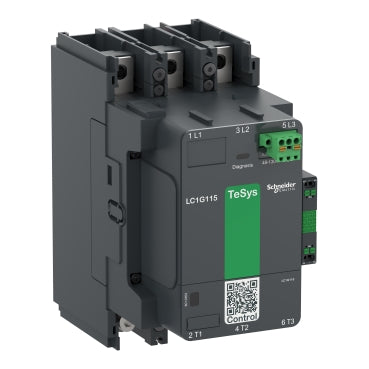

Schneider Electric LC1G115EHEN TeSys Giga Contactor 3P 3NO AC-3 115 A 55 kW 48-130 V AC/DC Coil Contactor

TeSys Giga contactor, 3P 3NO, 115 A AC-3, 55 kW at 400 V, 48-130 V AC/DC coil.

Rated current
115 A
Rated operational voltage
48–130 V AC
Motor power
55 kW
Poles
4P
EAN
3606481921826
Description

About the LC1G

The Schneider Electric LC1G115EHEN is a 3-pole TeSys Giga contactor rated 115 A AC-3, switching motors up to 55 kW at 400 V. It runs on a 48-130 V AC/DC wide-band electronic coil for low-voltage control loops, ships with a 1 NO + 1 NC auxiliary block, and withstands 1.1 kA for 10 s on a short circuit on the 193 x 108 mm Giga frame.

Certifications & Standards

  • CB Scheme
  • CCC
  • cULus
  • EAC
  • CE
  • UKCA
  • EU-RO-MR by DNV-GL
  • EN/IEC 60947-4-1
  • EN/IEC 60947-5-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
  • JIS C8201-4-1
  • JIS C8201-5-1
  • IEC 60335-1
  • IEC 60335-2-40
  • UL 60335-1
  • UL 60335-2-40

Selection Notes

Rated 115 A AC-3 (55 kW at 400 V), the LC1G115EHEN is sized for motor starting and running duty; the 1.1 kA short-time withstand for 10 s is the figure to check against the upstream breaker's let-through when coordinating selectivity on a motor feeder. Its 48-130 V AC/DC coil keeps the design simple for panels already running a low-voltage control loop, with contact-wear status read locally at the device. Where the motor load is close to the 55 kW boundary, the next current step up in the same Giga 3-pole family keeps the AC-3 rating comfortably inside its nameplate rather than at the ceiling.

Specification

Full specification

66 values · Last verified 29 Oct 2026

Main 11

Range TeSys
Range of Product TeSys Giga
Product or Component Type Contactor
Device short name LC1G
Contactor application Power switching Motor control
Utilisation category AC-1 AC-3 AC-3e AC-4 AC-5a AC-5b AC-6a AC-6b AC-8b AC-8a DC-1 DC-3 DC-5
Poles description 3P
[Ue] rated operational voltage <= 1000 V AC 50/60 Hz <= 460 V DC
[Ie] rated operational current 250 A (at <104 °F (40 °C)) at <= 1000 V AC-1 115 A (at <140 °F (60 °C)) at <= 440 V AC-3
[Uc] control circuit voltage 48...130 V AC 50/60 Hz 48...130 V DC
Control circuit voltage limits Operational: 0.8 Uc Min...1.1 Uc Max (at <140 °F (60 °C)) Drop-out: 0.1 Uc Max...0.45 Uc Min (at <140 °F (60 °C))

Complementary 34

[Uimp] rated impulse withstand voltage 8 kV
Overvoltage category III
[Ith] conventional free air thermal current 250 A (at 104 °F (40 °C))
Rated breaking capacity 1040 A at 440 V
[Icw] rated short-time withstand current 1.1 kA - 10 s 0.64 kA - 30 s 0.52 kA - 1 min 0.4 kA - 3 min 0.32 kA - 10 min
Associated fuse rating 125 A aM at <= 440 V for motor 125 A aM at <= 690 V for motor 315 A gG at <= 690 V 300 A UL Type J at <= 600 V
Average impedance 0.00018 Ohm
[Ui] rated insulation voltage 1000 V
Power dissipation per pole 10 W AC-1 - Ith 250 A 3 W AC-3 - Ith 115 A
Compatibility code LC1G
Pole contact composition 3 NO
Auxiliary contact composition 1 NO + 1 NC
Motor power kW 30 kW at 230 V AC 50/60 Hz (AC-3e) 55 kW at 400 V AC 50/60 Hz (AC-3e) 55 kW at 415 V AC 50/60 Hz (AC-3e) 75 kW at 440 V AC 50/60 Hz (AC-3e) 75 kW at 500 V AC 50/60 Hz (AC-3e) 75 kW at 690 V AC 50/60 Hz (AC-3e) 30 kW at 230 V AC 50/60 Hz (AC-3) 55 kW at 400 V AC 50/60 Hz (AC-3) 55 kW at 415 V AC 50/60 Hz (AC-3) 75 kW at 440 V AC 50/60 Hz (AC-3) 75 kW at 500 V AC 50/60 Hz (AC-3) 75 kW at 690 V AC 50/60 Hz (AC-3) 30 kW at 230 V AC 50/60 Hz (AC-4) 55 kW at 400 V AC 50/60 Hz (AC-4) 55 kW at 415 V AC 50/60 Hz (AC-4) 65 kW at 440 V AC 50/60 Hz (AC-4) 65 kW at 500 V AC 50/60 Hz (AC-4) 75 kW at 690 V AC 50/60 Hz (AC-4)
Maximum Horse Power Rating 30 hp at 200/208 V 60 Hz 40 hp at 230/240 V 60 Hz 75 hp at 460/480 V 60 Hz 100 hp at 575/600 V 60 Hz
Irms rated making capacity 1560 A at 440 V
Coil technology Built-in bidirectional peak limiting
Safety reliability level B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1 B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Mechanical durability 8 Mcycles
inrush power in VA (50/60 Hz, AC) 640 VA
inrush power in W (DC) 445 W
hold-in power consumption in VA (50/60 Hz, AC) 18.7 VA
hold-in power consumption in W (DC) 7.8 W
Operating time 40...70 ms closing 15...50 ms opening
Maximum operating rate 600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1 150 cyc/h AC-4
Connections - terminals Power circuit: bar 2 - busbar cross section: 25 x 6 mm Power circuit: lugs-ring terminals 1 0.3 in2 (185 mm2) Power circuit: bolted connection Control circuit: push-in 1 0.0003...0.004 in2 (0.2...2.5 mm2) - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.0004...0.004 in2 (0.25...2.5 mm2) - cable stiffness: flexible with cable end Control circuit: push-in 2 0.0008...0.002 in2 (0.5...1.0 mm2) with cable end Control circuit: push-in 0.001...0.004 in2 (0.75...2.5 mm2) - cable stiffness: solid stranded without cable end Control circuit: push-in 0.001...0.004 in2 (0.75...2.5 mm2) - cable stiffness: flexible with cable end
Connection pitch 1.4 in (35 mm)
Mounting Support Plate
Standards EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-1 UL 60335-2-40:Annex JJ
Product Certifications CB Scheme CCC cULus EAC CE UKCA EU-RO-MR by DNV-GL
Tightening torque 159.3 lbf.in (18 N.m)
Height 7.6 in (193 mm)
Width 4.3 in (108 mm)
Depth 7.6 in (193 mm)
Net Weight 7.7 lb(US) (3.5 kg)

Environment 7

IP degree of protection IP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106
Ambient Air Temperature for Operation -13...140 °F (-25...60 °C)
Ambient Air Temperature for Storage -76...176 °F (-60...80 °C)
Mechanical robustness Vibrations 5...300 Hz 2 gn contactor open Vibrations 5...300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed
color Dark grey
Protective treatment TH
Permissible ambient air temperature around the device -40...158 °F (-40...70 °C) at Uc
Show all 66 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LC1G115EHEN
Type designation LC1G
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481921826

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CZ
Shipping weight 3.5 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 29 Oct 2026

Documents

Documents for LC1G115EHEN

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
  • UKCA
  • CCC
  • EAC
  • CB Scheme
Quick answers

Questions about the LC1G

What is the rated current of LC1G?

The rated current of LC1G is 115 A.

Which supply voltage is LC1G rated for?

The rated operational voltage of LC1G is 48–130 V AC.

What motor power is LC1G rated for?

The rated motor power of LC1G is 55 kW.

What is the HS code of LC1G for customs?

The tariff (HS) code on file for LC1G is 85365080.

What is the EAN of LC1G?

The EAN (GTIN) of LC1G is 3606481921826.

Where does LC1G ship from, and how fast?

LC1G ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
