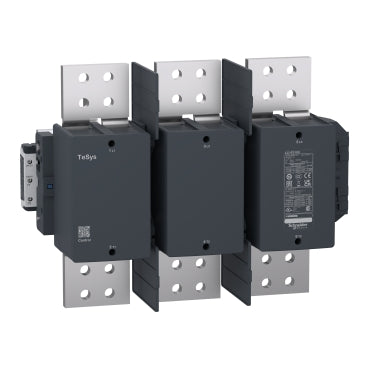

The Schneider Electric LC1F2100M7 is a 3-pole TeSys F contactor rated 2100 A AC-1 at up to 1000 V AC, the top current step of the TeSys F resistive-load range for heater banks, bus-tie and non-inductive switching duty. It carries a 220 V AC coil and bolted bus-bar power terminals, with a 3150 A rated breaking capacity and a 10 kA short-time withstand for 10 s.
The LC1F2100M7 sits at the top of the TeSys F frame on 2100 A AC-1, 400 A above the next lower current step, while keeping the same 332 x 438 mm bolted-bar housing — a useful property when a panel layout is fixed and only the current rating changes between projects. The 4-cable busbar termination (versus 3 cables on the lower-current variant) reflects the higher continuous current and should be matched with correspondingly rated busbar cross-section on the installation side. As with the rest of the AC-1 TeSys F line, this is a resistive/non-inductive switching device, not a motor starter; for motor duty, the AC-3-rated TeSys Giga range is the appropriate choice.
| Range | TeSys |
|---|---|
| Range of product | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| Contactor application | Resistive load |
| Utilisation category | AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz <= 460 V DC |
| [Uc] control circuit voltage | 220 V AC 40...400 Hz |
| [Ie] rated operational current | 2100 A (at <40 °C) AC AC-1 |
| [Uimp] rated impulse withstand voltage | 8 kV |
|---|---|
| [Ith] conventional free air thermal current | 2100 A (at 40 °C) |
| Rated breaking capacity | 3150 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 10000 A 40 °C - 10 s 7500 A 40 °C - 30 s 5500 A 40 °C - 1 min 4200 A 40 °C - 3 min 3000 A 40 °C - 10 min |
| Associated fuse rating | 2000 A gG at <= 440 V |
| Average impedance | 0.1 mOhm - Ith 2100 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 1500 V conforming to VDE 0110 group C 1000 V conforming to UL 60947-4-1 |
| Power dissipation per pole | 200 W AC-1 |
| Overvoltage category | III |
| power pole contact composition | 3 NO |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C) |
| Inrush power in VA | 2200 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 36 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Maximum operating rate | 600 cyc/h 55 °C |
| Operating time | 100...170 ms opening 40...75 ms closing |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 1...4 mm2flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1...4 mm2flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 1...4 mm2flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1...2.5 mm2flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1...4 mm2solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1...4 mm2solid without cable end Power circuit: bar 4 cable(s) - busbar cross section: 100 x 5 mm Power circuit: bolted connection |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 58 N.m |
| Mounting support | Plate |
| Heat dissipation | 36 W |
| Standards | IEC 60947-1 IEC 60947-4-1 JIS C8201-4-1 EN 60947-1 EN 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
| Product certifications | UL CSA CCC CB Scheme EAC UKCA |
| Compatibility code | LC1F |
| Control circuit type | AC at 40...400 Hz |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for operation | -5...40 °C |
| Ambient air temperature for storage | -60...80 °C |
| Permissible ambient air temperature around the device | -40...60 °C |
| Height | 332 mm |
| Width | 438 mm |
| Depth | 238.6 mm |
| Operating altitude | 3000 m without derating |
| Net weight | 31 kg |
| Part number | LC1F2100M7 |
|---|---|
| Type designation | LC1F |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 39.5 cm |
| Package 1 Width | 50.0 cm |
| Package 1 Length | 62.0 cm |
| Package 1 Weight | 31.0 kg |
| Shipping weight | 31.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
