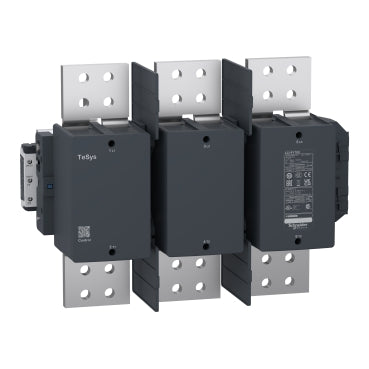

The Schneider Electric LC1F1700M7 is a 3-pole TeSys F contactor rated 1700 A AC-1 at up to 1000 V AC, built for switching large non-inductive loads such as resistive heater banks, transformer primaries and bus-tie applications. It carries a 220 V AC coil and bolted bus-bar power terminals, with a 2550 A rated breaking capacity and a 10 kA short-time withstand for 10 s.
At 1700 A AC-1, the LC1F1700M7 is sized for resistive and non-inductive duty, not motor starting — the 2550 A breaking capacity and bolted bar terminals suit fixed heater-bank or bus-tie installations where the load current is steady rather than inrush-heavy. The 220 V AC coil draws 36 VA holding power, so panel designers standardising on a single 220 V control transformer across a switchboard can use the same coil spec on the lower-current TeSys F frames. Where the application needs higher continuous current in the same bolted-bar frame, the next size up in the TeSys F range carries the identical 332 x 438 mm footprint and mounting pattern.
| Range | TeSys |
|---|---|
| Range of product | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| Contactor application | Resistive load |
| Utilisation category | AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz <= 460 V DC |
| [Uc] control circuit voltage | 220 V AC 40...400 Hz |
| [Ie] rated operational current | 1700 A (at <40 °C) AC AC-1 |
| [Uimp] rated impulse withstand voltage | 8 kV |
|---|---|
| [Ith] conventional free air thermal current | 1700 A (at 40 °C) |
| Rated breaking capacity | 2550 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 10000 A 40 °C - 10 s 7500 A 40 °C - 30 s 5500 A 40 °C - 1 min 4200 A 40 °C - 3 min 3000 A 40 °C - 10 min |
| Associated fuse rating | 1600 A gG at <= 440 V |
| Average impedance | 0.1 mOhm - Ith 1700 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 1500 V conforming to VDE 0110 group C 1000 V conforming to UL 60947-4-1 |
| Power dissipation per pole | 200 W AC-1 |
| Overvoltage category | III |
| power pole contact composition | 3 NO |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C) |
| Inrush power in VA | 2200 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 36 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Maximum operating rate | 600 cyc/h 55 °C |
| Operating time | 100...170 ms opening 40...75 ms closing |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 1...4 mm2flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1...4 mm2flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 1...4 mm2flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1...2.5 mm2flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1...4 mm2solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1...4 mm2solid without cable end Power circuit: bar 3 cable(s) - busbar cross section: 100 x 5 mm Power circuit: bolted connection |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 58 N.m |
| Mounting support | Plate |
| Heat dissipation | 36 W |
| Standards | EN 60947-4-1 JIS C8201-4-1 IEC 60947-1 IEC 60947-4-1 EN 60947-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
| Product certifications | UL CSA CCC CB Scheme EAC UKCA |
| Compatibility code | LC1F |
| Control circuit type | AC at 40...400 Hz |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for operation | -5...40 °C |
| Ambient air temperature for storage | -60...80 °C |
| Permissible ambient air temperature around the device | -40...60 °C |
| Height | 332 mm |
| Width | 438 mm |
| Depth | 238.6 mm |
| Operating altitude | 3000 m without derating |
| Net weight | 30 kg |
| Part number | LC1F1700M7 |
|---|---|
| Type designation | LC1F |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 39.5 cm |
| Package 1 Width | 50.0 cm |
| Package 1 Length | 62.0 cm |
| Package 1 Weight | 30.0 kg |
| Shipping weight | 30.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 29 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of LC1F is 1700 A.
The rated operational voltage of LC1F is 220 V AC.
The tariff (HS) code on file for LC1F is 85365080.
LC1F ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
