Part number
LC1F1250M7
Model no
LC1F
$3,374.42 On request Dispatch — · From TürkiyeGet a Quote
TeSys F

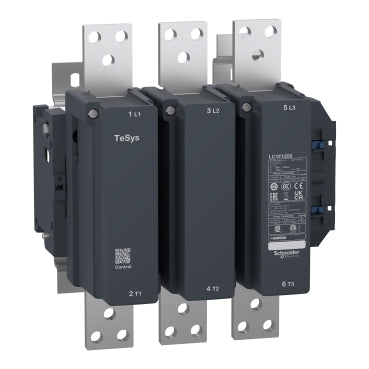

Schneider Electric LC1F1250M7 TeSys F Contactor 3P 3NO AC-1 1260 A 220 V AC Coil Contactor

TeSys F contactor, 3P 3NO, 1260 A AC-1, 220 V AC coil, bolted bar power terminals.

Rated current
1260 A
Rated operational voltage
220–40 V AC
Poles
3P
EAN
3606485242590
Description

About the LC1F

The Schneider Electric LC1F1250M7 is a 3-pole TeSys F contactor rated 1260 A AC-1 at up to 690 V, built for heavy resistive and distribution switching duty rather than everyday motor starting. It runs on a low-consumption 220 V AC 40-400 Hz coil and connects power through bolted bar terminals, backed by a 1890 A breaking capacity.

Certifications & Standards

  • CB Scheme
  • UL
  • CSA
  • CQC
  • CE
  • UKCA
  • CCC
  • EN 60947-4-1
  • IEC 60947-4-1
  • IEC 60947-1
  • EN 60947-1
  • JIS C8201-4-1

Selection Notes

At 1260 A this frame is sized for panel-mains or distribution switching rather than individual motor starters, and its drawer-mounted coil makes field coil replacement possible without disturbing the power terminals. Pick this 220 V AC coil over the 110 V sibling when the control transformer runs that tap, or move to the LC1F1700 frame when the continuous AC-1 current needs to exceed 1260 A.

Applications

Main incomer and bus-tie switching in low-voltage switchboards, capacitor bank and resistive load switching, and distribution panels where a 1260 A continuous rating and 1200 cycles/h duty are specified. The drawer-mounted coil design also simplifies maintenance in panels with limited access, since the coil can be swapped without disconnecting the power bars.

Specification

Full specification

56 values · Last verified 29 Oct 2026

Main 10

Range TeSys
Range of Product TeSys F
Product or Component Type Contactor
Device short name LC1F
Contactor application Resistive load
Utilisation category AC-1
Poles description 3P
[Ue] rated operational voltage <= 460 V DC <= 690 V AC 50/60 Hz
[Uc] control circuit voltage 220 V AC 40...400 Hz
[Ie] rated operational current 1260 A (at <104 °F (40 °C)) AC-1

Complementary 23

[Uimp] rated impulse withstand voltage 8 kV
[Ith] conventional free air thermal current 1260 A (at 104 °F (40 °C))
Rated breaking capacity 1890 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current 3000 A 104 °F (40 °C) - 3 min 8000 A 104 °F (40 °C) - 10 s 5200 A 104 °F (40 °C) - 30 s 4000 A 104 °F (40 °C) - 1 min 2000 A 104 °F (40 °C) - 10 min
Associated fuse rating 1000 A gG at <= 440 V
Average impedance 0.12 mOhm - Ith 1260 A 50 Hz
[Ui] rated insulation voltage 1000 V IEC 60947-4-1 1500 V VDE 0110 group C
Power dissipation per pole 120 W AC-1
Overvoltage category III
power pole contact composition 3 NO
Control circuit voltage limits Operational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C)) Drop-out 0.25...0.5 Uc 40...400 Hz 131 °F (55 °C))
Inrush power in VA 1650 VA, 40...400 Hz 0.9 68 °F (20 °C))
Hold-in power consumption in VA 22 VA, 40...400 Hz 0.9 68 °F (20 °C))
Maximum operating rate 1200 cyc/h 131 °F (55 °C)
Operating time 40...80 ms closing 100...200 ms opening
Connections - terminals Control circuit screw clamp terminals 1 0.002...0.006 in2 (1...4 mm2)flexible without cable end Control circuit screw clamp terminals 2 0.002...0.006 in2 (1...4 mm2)flexible without cable end Control circuit screw clamp terminals 1 0.002...0.006 in2 (1...4 mm2)flexible with cable end Control circuit screw clamp terminals 2 0.002...0.004 in2 (1...2.5 mm2)flexible with cable end Control circuit screw clamp terminals 1 0.002...0.006 in2 (1...4 mm2)solid without cable end Control circuit screw clamp terminals 2 0.002...0.006 in2 (1...4 mm2)solid without cable end Power circuit bar 2 100 x 5 mm Power circuit bolted connection
Tightening torque Control circuit 10.6 lbf.in (1.2 N.m) Power circuit 513.3 lbf.in (58 N.m)
Mounting Support Plate
Heat dissipation 20 W
Standards EN 60947-4-1 IEC 60947-4-1 IEC 60947-1 EN 60947-1 JIS C8201-4-1
Product Certifications CB UL CSA CQC CE UKCA CCC
Compatibility code LC1F
Control circuit type AC 40...400 Hz

Environment 9

Protective treatment TH
Ambient Air Temperature for Operation 23...104 °F (-5...40 °C)
Ambient Air Temperature for Storage -76...176 °F (-60...80 °C)
Permissible ambient air temperature around the device -40...140 °F (-40...60 °C)
Height 13.3 in (338 mm)
Width 12.2 in (309 mm)
Depth 10.04 in (255 mm)
Operating altitude 9842.52 ft (3000 m) without derating
Net Weight 41.9 lb(US) (19 kg)
Show all 56 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LC1F1250M7
Type designation LC1F
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606485242590

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CZ
Shipping weight 19.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 29 Oct 2026

Documents

Documents for LC1F1250M7

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • UKCA
  • CCC
  • CQC
Quick answers

Questions about the LC1F

What is the rated current of LC1F?

The rated current of LC1F is 1260 A.

Which supply voltage is LC1F rated for?

The rated operational voltage of LC1F is 220–40 V AC.

What is the HS code of LC1F for customs?

The tariff (HS) code on file for LC1F is 85365080.

What is the EAN of LC1F?

The EAN (GTIN) of LC1F is 3606485242590.

Where does LC1F ship from, and how fast?

LC1F ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
