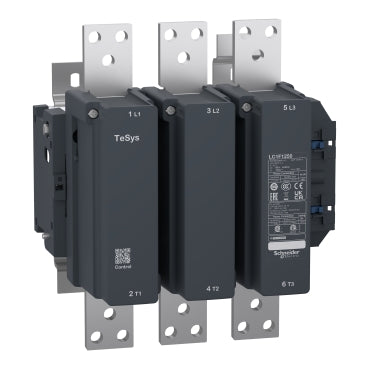

The Schneider Electric LC1F1250F7 is a 3-pole TeSys F contactor rated 1260 A AC-1 at up to 690 V, built for heavy resistive and distribution switching duty rather than everyday motor starting. It runs on a 110 V AC 40-400 Hz coil and connects power through bolted bar terminals rather than screw clamps, with a 1890 A breaking capacity behind it.
At 1260 A this frame is sized for panel-mains or distribution switching rather than individual motor starters, and the bolted bar power connections are rated for a 58 N.m tightening torque instead of a screw-clamp spec. Pick the 220 V AC coil sibling instead when the control transformer runs that tap, or the LC1F1700 frame when the continuous AC-1 current needs to exceed 1260 A.
Main incomer and bus-tie switching in low-voltage switchboards, capacitor bank and resistive load switching, and distribution panels where a 1260 A continuous rating and 1200 cycles/h duty are specified. The 338 mm frame and bar-connection power terminals also suit retrofit of older electromechanical contactors in existing switchgear.
| Range | TeSys |
|---|---|
| Range of Product | TeSys F |
| Product or Component Type | Contactor |
| Device short name | LC1F |
| Contactor application | Resistive load |
| Utilisation category | AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 460 V DC <= 690 V AC 50/60 Hz |
| [Uc] control circuit voltage | 110 V AC 40...400 Hz |
| [Ie] rated operational current | 1260 A (at <104 °F (40 °C)) AC-1 |
| [Uimp] rated impulse withstand voltage | 8 kV |
|---|---|
| [Ith] conventional free air thermal current | 1260 A (at 104 °F (40 °C)) |
| Rated breaking capacity | 1890 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 3000 A 104 °F (40 °C) - 3 min 8000 A 104 °F (40 °C) - 10 s 5200 A 104 °F (40 °C) - 30 s 4000 A 104 °F (40 °C) - 1 min 2000 A 104 °F (40 °C) - 10 min |
| Associated fuse rating | 1000 A gG at <= 440 V |
| Average impedance | 0.12 mOhm - Ith 1260 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V IEC 60947-4-1 1500 V VDE 0110 group C |
| Power dissipation per pole | 120 W AC-1 |
| Overvoltage category | III |
| power pole contact composition | 3 NO |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C)) Drop-out 0.25...0.5 Uc 40...400 Hz 131 °F (55 °C)) |
| Inrush power in VA | 1650 VA, 40...400 Hz 0.9 68 °F (20 °C)) |
| Hold-in power consumption in VA | 22 VA, 40...400 Hz 0.9 68 °F (20 °C)) |
| Maximum operating rate | 1200 cyc/h 131 °F (55 °C) |
| Operating time | 40...80 ms closing 100...200 ms opening |
| Connections - terminals | Control circuit screw clamp terminals 1 0.002...0.006 in2 (1...4 mm2)flexible without cable end Control circuit screw clamp terminals 2 0.002...0.006 in2 (1...4 mm2)flexible without cable end Control circuit screw clamp terminals 1 0.002...0.006 in2 (1...4 mm2)flexible with cable end Control circuit screw clamp terminals 2 0.002...0.004 in2 (1...2.5 mm2)flexible with cable end Control circuit screw clamp terminals 1 0.002...0.006 in2 (1...4 mm2)solid without cable end Control circuit screw clamp terminals 2 0.002...0.006 in2 (1...4 mm2)solid without cable end Power circuit bar 2 100 x 5 mm Power circuit bolted connection |
| Tightening torque | Control circuit 10.6 lbf.in (1.2 N.m) Power circuit 513.3 lbf.in (58 N.m) |
| Mounting Support | Plate |
| Heat dissipation | 20 W |
| Standards | EN 60947-1 IEC 60947-1 IEC 60947-4-1 JIS C8201-4-1 EN 60947-4-1 |
| Product Certifications | CB UL CSA CQC CE UKCA CCC |
| Compatibility code | LC1F |
| Control circuit type | AC 40...400 Hz |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Operation | 23...104 °F (-5...40 °C) |
| Ambient Air Temperature for Storage | -76...176 °F (-60...80 °C) |
| Permissible ambient air temperature around the device | -40...140 °F (-40...60 °C) |
| Height | 13.3 in (338 mm) |
| Width | 12.2 in (309 mm) |
| Depth | 10.04 in (255 mm) |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Net Weight | 41.9 lb(US) (19 kg) |
| Part number | LC1F1250F7 |
|---|---|
| Type designation | LC1F |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606485242552 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CZ |
|---|---|
| Shipping weight | 19.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
