Part number
LC1E95004M7
Model no
LC1E
$173.26 On request Dispatch — · From TürkiyeGet a Quote

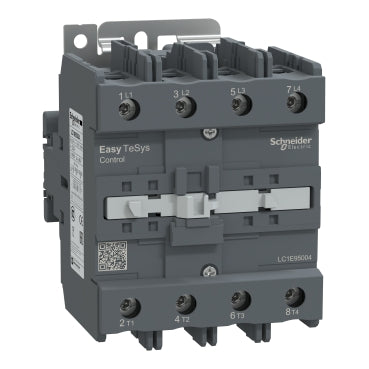

Schneider Electric LC1E95004M7 Easy TeSys Contactor 4P 4NO AC-1 125 A 220 V AC Coil Contactor

Schneider Electric LC1E95004M7 Easy TeSys contactor, 4P 4NO, AC-1 125 A, 220 V AC coil.

Rated current
125 A
Rated operational voltage
220 V AC
Poles
3P
Description

About the LC1E

The Schneider Electric LC1E95004M7 is a 4-pole Easy TeSys contactor rated 125 A AC-1 (up to 440 V) for resistive and non-motor switching duty, with a rated breaking capacity of 760 A at 440 V. It carries a 220 V AC coil, no built-in auxiliary contact, and screw clamp terminals on the power circuit for DIN-rail or plate mounting.

Certifications & Standards

  • CB Scheme
  • CCC
  • CE
  • EAC
  • EN/IEC 60947-4-1

Selection Notes

Rated strictly for AC-1 resistive duty, it is not sized for direct motor starting at this current; pick the equivalent AC-3 TeSys Deca frame for motor loads. It ships without a built-in auxiliary contact, so add a separate auxiliary contact block where interlock or run-feedback signalling is required. The 760 A breaking capacity at 440 V sets the ceiling for downstream short-circuit protection coordination.

Specification

Full specification

71 values · Last verified 29 Oct 2026

Main 10

Range Easy TeSys
Range of product Easy TeSys Control
Product or component type Contactor
Device short name LC1E
Contactor application Resistive load
Utilisation category AC-1
Poles description 4P
[Ue] rated operational voltage Power circuit: <= 690 V AC 50/60 Hz
[Ie] rated operational current 125 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
[Uc] control circuit voltage 220 V AC 50/60 Hz

Complementary 25

Pole contact composition 4 NO
[Ith] conventional free air thermal current 125 A (at 55 °C) for power circuit
Irms rated making capacity 950 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity 760 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 135 A 40 °C - 600 s for power circuit 800 A 40 °C - 10 s for power circuit 400 A 40 °C - 60 s for power circuit
Associated fuse rating 160 A gG at <= 690 V coordination type 1 for power circuit
Average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole 7.2 W AC-3 12 W AC-1
[Ui] rated insulation voltage 690 V conforming to IEC 60947-4-1
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Mechanical durability 3000000 cycles
Electrical durability 900000 cycles AC-3 350000 cycles AC-1
Control circuit type AC at 50/60 Hz
Control circuit voltage limits 0.85...1.1 Uc (-5...55 °C):operational 50/60 Hz 0.3...0.6 Uc (-5...55 °C):drop-out 50/60 Hz
Inrush power in VA 200 VA 50 Hz cos phi 0.75 (at 20 °C) 220 VA 60 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA 22 VA 60 Hz cos phi 0.3 (at 20 °C) 20 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation 6...10 W for control circuit
Operating time 20...35 ms on closing 6...30 ms on opening
Maximum operating rate 1200 cyc/h 60 °C
Connections - terminals Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1...4 mm2 - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1...2.5 mm2 - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1...4 mm2 - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 4...50 mm2 - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 4...16 mm2 - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 4...50 mm2 - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 4...50 mm2 - cable stiffness: solid without cable end
Tightening torque Control circuit: 1.2 N.m Power circuit: 12 N.m
Auxiliary contact composition Without
Mounting support Plate DIN rail

Environment 12

Standards EN/IEC 60947-1 EN/IEC 60947-4-1 GB/T 14048.1 GB/T 14048.4
Product certifications CB Scheme CCC CE EAC
IP degree of protection IP2X conforming to IEC 60529
Protective treatment TH (pollution degree 3) conforming to IEC 60068-2-30
Permissible ambient air temperature around the device -20...70 °C at Uc -60...80 °C storage -5...55 °C operation
Operating altitude 3000 m without derating
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms)
Height 127 mm
Width 95 mm
Depth 135 mm
Net weight 1.6 kg
Show all 71 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LC1E95004M7
Type designation LC1E
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 10.9 cm
Package 1 Width 13.5 cm
Package 1 Length 15.5 cm
Package 1 Weight 1.622 kg
Unit Type of Package 2 S03
Number of Units in Package 2 6
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 10.273 kg
Shipping weight 1.6 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 29 Oct 2026

Documents

Documents for LC1E95004M7

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CCC
  • EAC
  • CB Scheme
Quick answers

Questions about the LC1E

What is the rated current of LC1E?

The rated current of LC1E is 125 A.

Which supply voltage is LC1E rated for?

The rated operational voltage of LC1E is 220 V AC.

What is the HS code of LC1E for customs?

The tariff (HS) code on file for LC1E is 85365080.

Where does LC1E ship from, and how fast?

LC1E ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
