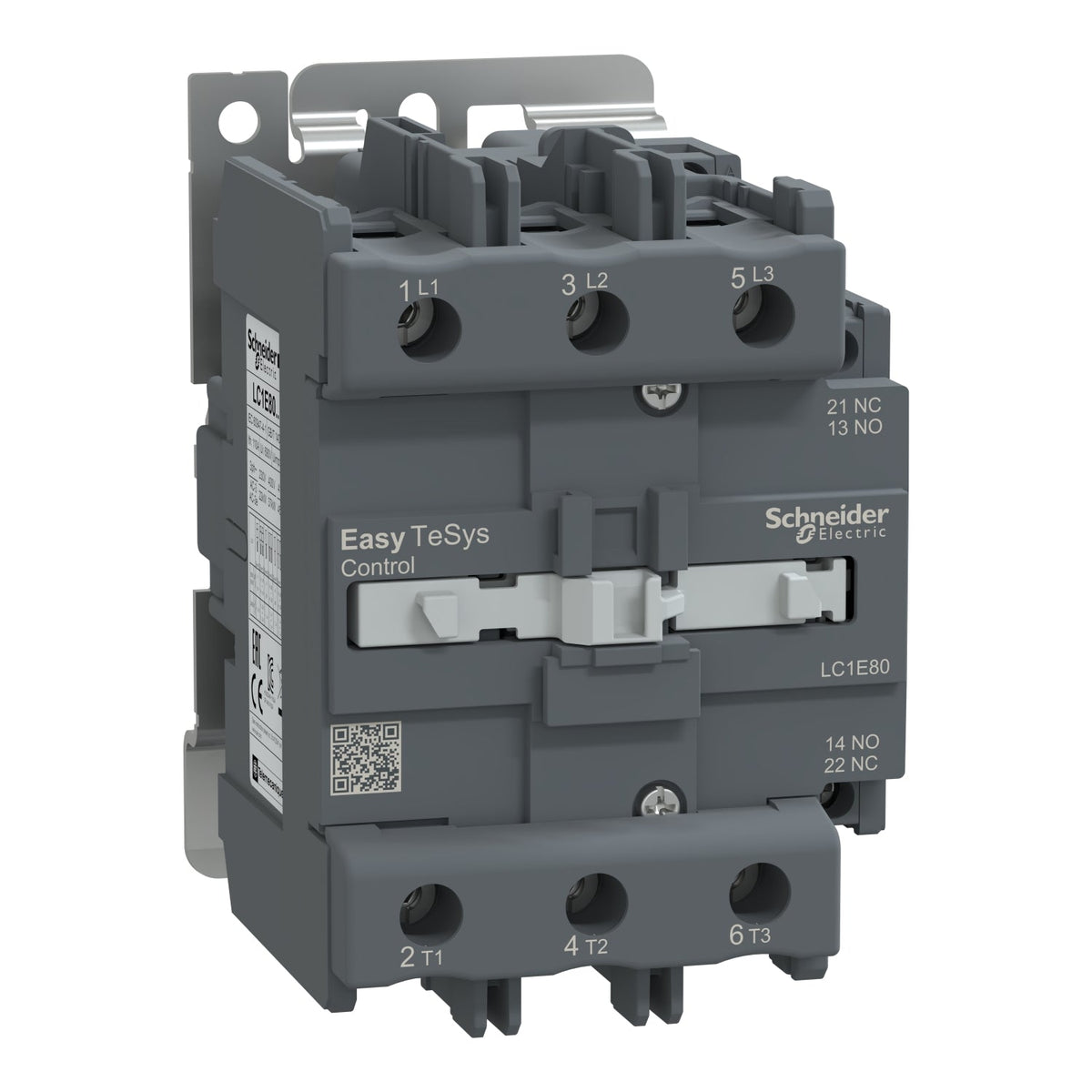

Schneider Electric LC1E80B5 Easy TeSys Contactor 3P 3NO AC-3 80 A 24 V AC Coil Contactor

The Schneider Electric LC1E80B5 is a 3-pole Easy TeSys Control contactor rated 80 A (AC-3) / 37 kW at 400 V, with a 24 V AC 50 Hz coil and 1 NO + 1 NC auxiliary contacts.

Poles
3
AC-3 current (400 V)
80 A
Motor power (400 V)
37 kW
Coil voltage
24 V AC
Auxiliary contacts
1 NO + 1 NC
Description

About the LC1E80B5

The Schneider Electric LC1E80B5 is a 3-pole Easy TeSys (EasyPact TVS) contactor rated 80 A AC-3 at up to 440 V, switching motors up to 37 kW at 400 V and 45 kW at 415-440 V. It runs on a 24 V AC 50 Hz coil and includes 1 built-in normally-open and 1 normally-closed auxiliary contact, with screw clamp power and control terminals.

Certifications & Standards

  • CB Scheme
  • CCC
  • CE
  • EAC
  • EN/IEC 60947-4-1
  • EN/IEC 60335-1

Selection Notes

The LC1E80B5 extends the Easy TeSys 3-pole line to 80 A AC-3, with the standard 1NO+1NC built-in auxiliary contact for interlocking or status feedback. Its 110 A AC-1 rating gives headroom for resistive loads above the motor-control current. For lower motor power, the 65 A (LC1E65B5) frame saves panel width; for higher power, the 120 A (LC1E120B5) frame is the next step up.

Applications (manufacturer): Motor control, Resistive load

Specification

Full specification

98 values · Last verified 03 Nov 2026

General 5

Series Easy TeSys Control
Contactor size / frame E80
Number of poles 3
Main contact configuration 3 NO
Utilisation categories AC-3 AC-3e AC-1

Electrical 8

Rated operational current Ie, AC-3, 400 V 80 A
Rated motor power, AC-3, 400 V 37 kW
Motor power at other voltages, AC-3 22 kW @ 220/230 V · 45 kW @ 415/440 V · 45 kW @ 500 V · 45 kW @ 660/690 V · 45 kW @ 660...690 V
Rated operational current, AC-1 (60 °C) 110 A
Conventional free-air thermal current Ith 130 A
Max. rated operational voltage Ue 690 V
Rated insulation voltage Ui 690 V
Rated impulse withstand voltage Uimp 6 kV

Control circuit 4

Rated control supply voltage Uc 24 V
Coil type AC
Coil frequency 50 Hz
Coil holding power 22 W | VA
Show all 49 specifications ↓ Show less ↑32 more values in Identification, Auxiliary contacts, Mechanical, Dimensions and weight, Environmental, Certifications and standards, Logistics. 49 more as published by Schneider Electric are shown on request.

Identification 10

Part number LC1E80B5
Model code E80
Brand Schneider Electric
Series Easy TeSys Control
Family Contactors
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
Catalogue number explained LC1 = 3-pole contactor; E = Easy TeSys Control range; 80 = 80 A AC-3 rating; B5 = coil code (24 V AC 50 Hz)

Auxiliary contacts 4

Built-in auxiliary contacts, NO 1
Built-in auxiliary contacts, NC 1
Auxiliary contacts 1 NO + 1 NC
Mirror contact (IEC 60947-4-1 Annex F) No

Mechanical 2

Main circuit connection Screw terminal
Mounting 35 mm DIN rail, Panel (screw) mounting

Dimensions and weight 4

Width 85 mm
Height 127 mm
Depth 121 mm
Net weight 1.52 kg

Environmental 4

Ambient operating temperature -5 … 55 °C
Degree of protection IP2X
Mechanical durability 3000000 cycles
Max. operating frequency, AC-3 1200 cycles/h

Certifications and standards 2

Certifications CB Scheme, CCC, CE, EAC
Conforming standards EN/IEC 60335-1, EN/IEC 60335-2-40, EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.1, GB/T 14048.4, GB/T 14048.5

Logistics 6

Package dimensions (L × W × H) 155 × 152 × 110 mm
Package weight 1.519 kg
Shipping weight 1.52 kg
Ships from Türkiye
Dispatch —
Stock On request
Additional manufacturer data 49 49 more values as published by Schneider Electric, shown on request.

Additional manufacturer data 49

Range Easy TeSys
Product or component type Contactor
Device short name LC1E
Irms rated making capacity 960 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity 680 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 640 A 40 °C - 10 s for power circuit 320 A 40 °C - 60 s for power circuit 135 A 40 °C - 600 s for power circuit
Associated fuse rating 160 A gG at <= 690 V coordination type 1 for power circuit 10 A gG at <= 690 V for auxiliary contact circuit conforming to IEC 60947-5-1
Average impedance 0.8 mOhm - Ith 130 A 50 Hz for power circuit
Power dissipation per pole 5.1 W AC-3 9.7 W AC-1
Overvoltage category III
Pollution degree 3
Electrical durability 350000 cycles AC-1 900000 cycles AC-3
Control circuit type AC at 50 Hz
Control circuit voltage limits 0.85...1.1 Uc (-5...55 °C):operational 50 Hz 0.3...0.6 Uc (-5...55 °C):drop-out 50 Hz
Inrush power in VA 200 VA 50 Hz cos phi 0.75 (at 20 °C) 220 VA 60 Hz cos phi 0.75 (at 20 °C)
Heat dissipation 6...10 W for control circuit
Operating time 20...35 ms on closing 6...30 ms on opening
Tightening torque Control circuit: 1.2 N.m Power circuit: 12 N.m
Minimum switching voltage 17 V for auxiliary contact circuit
Minimum switching current 5 mA for auxiliary contact circuit
Insulation resistance > 10 MOhm for auxiliary contact circuit
Non-overlap time 1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact
Protective treatment TH (pollution degree 3) conforming to IEC 60068-2-30
Operating altitude 3000 m without derating
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms)
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Unit Type of Package 2 S03
Number of Units in Package 2 5
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 8.086 kg
Total lifecycle Carbon footprint 1 015 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 10 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 2 kg CO2 eq.
Carbon footprint of the installation phase [A5] 0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6] 1 001 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4] 2 kg CO2 eq.
Environmental Disclosure Product Environmental Profile
Packaging made with recycled cardboard Yes
Packaging without single use plastic Yes
SCIP Number D35ed203-a299-4dcd-95fe-2a4557618485
Repair No
Recyclability potential, in % 64
End of life manual availability End of Life Information
Take-back No
WEEE Label The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Source: manufacturer data · Last verified: 03 Nov 2026
