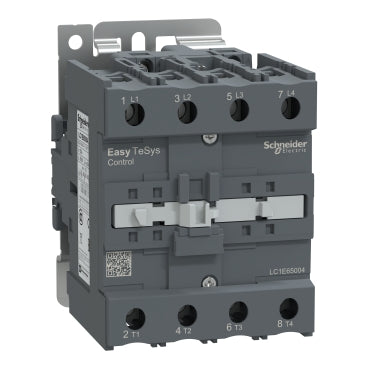

Schneider Electric LC1E65004M7 Easy TeSys contactor, 4P 4NO, AC-1 80 A, 220 V AC coil.
The Schneider Electric LC1E65004M7 is a 4-pole Easy TeSys contactor rated 80 A AC-1 (up to 440 V) for resistive and non-motor switching duty, with a rated breaking capacity of 520 A at 440 V. It carries a 220 V AC coil, no built-in auxiliary contact, and screw clamp terminals on the power circuit for DIN-rail or plate mounting.
Rated strictly for AC-1 resistive duty, it is not sized for direct motor starting at this current; pick the equivalent AC-3 TeSys Deca frame for motor loads. It ships without a built-in auxiliary contact, so add a separate auxiliary contact block where interlock or run-feedback signalling is required. The 520 A breaking capacity at 440 V sets the ceiling for downstream short-circuit protection coordination.
| Range | Easy TeSys |
|---|---|
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Device short name | LC1E |
| Contactor application | Resistive load |
| Utilisation category | AC-1 |
| Poles description | 4P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 80 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Pole contact composition | 4 NO |
|---|---|
| [Ith] conventional free air thermal current | 80 A (at 55 °C) for power circuit |
| Irms rated making capacity | 650 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 520 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 520 A 40 °C - 10 s for power circuit 260 A 40 °C - 60 s 110 A 40 °C - 600 s |
| Associated fuse rating | 125 A gG at <= 690 V coordination type 1 for power circuit |
| Average impedance | 1 mOhm - Ith 80 A 50 Hz for power circuit |
| Power dissipation per pole | 4.2 W AC-3 6.4 W AC-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Mechanical durability | 5000000 cycles |
| Electrical durability | 350000 cycles AC-1 900000 cycles AC-3 |
| Control circuit type | AC at 50/60 Hz |
| Control circuit voltage limits | 0.85...1.1 Uc (-5...55 °C):operational 50/60 Hz 0.3...0.6 Uc (-5...55 °C):drop-out 50/60 Hz |
| Inrush power in VA | 160 VA 50 Hz cos phi 0.75 (at 20 °C) 140 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 15 VA 50 Hz cos phi 0.3 (at 20 °C) 13 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 6...10 W for control circuit |
| Operating time | 20...26 ms on closing 8...12 ms on opening |
| Maximum operating rate | 1200 cyc/h 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1...4 mm2 - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1...2.5 mm2 - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1...4 mm2 - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 2.5...25 mm2 - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 2.5...10 mm2 - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 2.5...25 mm2 - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 2.5...16 mm2 - cable stiffness: solid without cable end |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 5 N.m |
| Auxiliary contact composition | Without |
| Mounting support | DIN rail Plate |
| Standards | EN/IEC 60947-1 EN/IEC 60947-4-1 GB/T 14048.1 GB/T 14048.4 |
|---|---|
| Product certifications | CB Scheme CCC CE EAC |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Permissible ambient air temperature around the device | -20...70 °C at Uc -60...80 °C storage -5...55 °C operation |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms) |
| Height | 127 mm |
| Width | 85 mm |
| Depth | 125 mm |
| Net weight | 1.3 kg |
| Part number | LC1E65004M7 |
|---|---|
| Type designation | LC1E |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.5 cm |
| Package 1 Width | 13.5 cm |
| Package 1 Length | 15.0 cm |
| Package 1 Weight | 1.362 kg |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.807 kg |
| Shipping weight | 1.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
