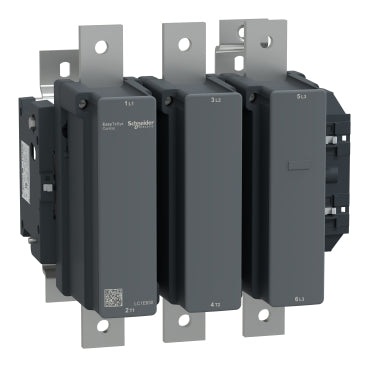

Easy TeSys Control 3P power contactor, 630A AC-3 at 440V, 220V AC coil, 335kW motor rating, bar terminals.
The Schneider Electric LC1E630M7 is a 3-pole Easy TeSys Control contactor rated 630 A (AC-3) at up to 440 V AC, built for direct-on-line motor control up to 335 kW at 400 V. It carries a 220 V AC coil and no built-in auxiliary contact, making it a bar-terminal power contactor for plate-mounted motor starter and switching panels.
The 630 A AC-3 rating supports direct-on-line starting of motors up to 335 kW at 400 V AC, a step above the lower-current members of this power-contactor frame. Bar terminals with a 60 x 5 mm busbar cross-section and a 58 N.m power-circuit tightening torque reflect the bolted, high-current connections needed at this rating. The 5050 A / 10 s short-time withstand current gives margin to hold through fault current until the 800 A gG upstream fuses clear. With no built-in auxiliary contact, an add-on auxiliary contact block is required for any status or interlock signal.
| Range | Easy TeSys |
|---|---|
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Device short name | LC1E |
| Contactor application | Motor control Resistive load |
| Utilisation category | AC-3 AC-3e AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 630 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 500 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 1000 A (at <40 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Motor power kW | 185 kW at 220/230 V AC 50/60 Hz 335 kW at 380/400 V AC 375 kW at 415 V AC 400 kW at 440 V AC 400 kW at 500 V AC 450 kW at 660/690 V AC |
|---|---|
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 1000 A (at 40 °C) for power circuit |
| Irms rated making capacity | 6300 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 5040 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 5050 A 40 °C - 10 s for power circuit |
| Associated fuse rating | 800 A gG at <= 690 V coordination type 1 for power circuit |
| Average impedance | 0.12 mOhm - Ith 1000 A 50 Hz for power circuit |
| Power dissipation per pole | 48 W AC-3 120 W AC-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 8 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 4000000 cycles |
| Electrical durability | 200000 cycles AC-1 600000 cycles AC-3 |
| Control circuit type | AC at 50/60 Hz |
| Control circuit voltage limits | 0.85...1.1 Uc (-5...55 °C):operational 50/60 Hz 0.25...0.5 Uc (-5...55 °C):drop-out 50/60 Hz |
| Inrush power in VA | 1650 VA 50 Hz cos phi 0.9 (at 20 °C) 1650 VA 60 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 22 VA 50 Hz cos phi 0.9 (at 20 °C) 22 VA 60 Hz cos phi 0.9 (at 20 °C) |
| Heat dissipation | 20 W for control circuit 20 W |
| Operating time | 40...80 ms on closing 100...200 ms on opening |
| Maximum operating rate | 1200 cyc/h 55 °C |
| Connections - terminals | Power circuit: bars 2 1...4 mm2 - cable stiffness: flexible without cable end - busbar cross section: 60 x 5 mm Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1...4 mm2 - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1...2.5 mm2 - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1...4 mm2 - cable stiffness: solid without cable end Power circuit: bars 2 - busbar cross section: 60 x 5 mm |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 58 N.m |
| Auxiliary contact composition | Without |
| Mounting support | Plate |
| Standards | EN/IEC 60947-1 EN/IEC 60947-4-1 GB/T 14048.1 GB/T 14048.4 |
|---|---|
| Product certifications | CB Scheme CCC CE EAC |
| IP degree of protection | IP00 conforming to IEC 60529 |
| Permissible ambient air temperature around the device | -20...70 °C at Uc -60...80 °C storage -5...55 °C operation |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (15 Gn for 11 ms) Vibrations contactor open (2 Gn, 5...300 Hz) Vibrations contactor closed (4 Gn, 5...300 Hz) |
| Height | 304 mm |
| Width | 309 mm |
| Depth | 255 mm |
| Net weight | 18.6 kg |
| Part number | LC1E630M7 |
|---|---|
| Type designation | LC1E |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 30.000 cm |
| Package 1 Width | 46.500 cm |
| Package 1 Length | 36.500 cm |
| Package 1 Weight | 18.847 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 83.888 kg |
| Shipping weight | 18.6 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 29 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of LC1E is 630 A.
The rated operational voltage of LC1E is 440 V AC.
The rated motor power of LC1E is 335 kW.
The tariff (HS) code on file for LC1E is 85365080.
LC1E ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
