Easy TeSys contactor, 3P, 250 A AC-3, 140 kW at 415/440 V, 24 V AC coil, no built-in auxiliary contacts.

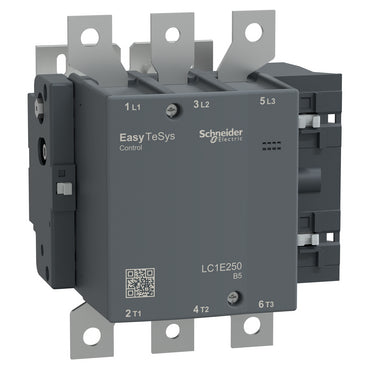

The Schneider Electric LC1E250B5 is a 3-pole Easy TeSys contactor rated 250 A AC-3 at up to 440 V, switching motors up to 140 kW at 415/440 V. It carries a 24 V AC 50 Hz coil with no built-in auxiliary contacts, power connections by cable lug or busbar, and control connections by screw clamp terminals in a 168.5 mm wide plate-mounted housing.
The LC1E250B5 is the highest-current Easy TeSys 3-pole contactor in this data set, sized for 140 kW motors at 415/440 V, and its IP00 rating means the power terminals are open and the device needs an enclosure that itself provides touch protection. Power connects by 32x4 mm busbar or cable lug rather than screw terminals; for motors below 140 kW, the lower-current steps of this frame are available with screw-terminal power connections.
| Range | Easy TeSys |
|---|---|
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Device short name | LC1E |
| Contactor application | Motor control Resistive load |
| Utilisation category | AC-3 AC-3e AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 250 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 190 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 300 A (at <40 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 24 V AC 50 Hz |
| Motor power kW | 75 kW at 220/230 V AC 50/60 Hz 132 kW at 380/400 V AC 140 kW at 415/440 V AC 160 kW at 500 V AC 160 kW at 660/690 V AC 160 kW at 660...690 V |
|---|---|
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 300 A (at 40 °C) for power circuit |
| Irms rated making capacity | 2500 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 2000 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 1800 A 40 °C - 10 s for power circuit |
| Associated fuse rating | 315 A gG at <= 690 V coordination type 1 for power circuit |
| Average impedance | 0.32 mOhm - Ith 300 A 50 Hz for power circuit |
| Power dissipation per pole | 20 W AC-3 29 W AC-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 8 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 5000000 cycles |
| Electrical durability | 200000 cycles AC-1 700000 cycles AC-3 |
| Control circuit type | AC at 50 Hz |
| Control circuit voltage limits | 0.85...1.1 Uc (-5...55 °C):operational 50 Hz 0.35...0.55 Uc (-5...55 °C):drop-out 50 Hz |
| Inrush power in VA | 805 VA 50 Hz cos phi 0.3 (at 20 °C) 970 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Hold-in power consumption in VA | 55 VA 50 Hz cos phi 0.3 (at 20 °C) 66 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 18...24 W for control circuit |
| Operating time | 20...35 ms on closing 7...15 ms on opening |
| Maximum operating rate | 1200 cyc/h 55 °C |
| Connections - terminals | Power circuit: cable with lug 1 1...4 mm2 - external diameter: 185 mm - cable stiffness: flexible without cable end Power circuit: bars 2 1...4 mm2 - cable stiffness: flexible without cable end - busbar cross section: 32 x 4 mm Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1...4 mm2 - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1...2.5 mm2 - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1...2.5 mm2 - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1...4 mm2 - external diameter: 185 mm - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1...4 mm2 - cable stiffness: solid without cable end - busbar cross section: 32 x 4 mm |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 35 N.m |
| Auxiliary contact composition | Without |
| Mounting support | Plate |
| Standards | EN/IEC 60947-1 EN/IEC 60947-4-1 GB/T 14048.1 GB/T 14048.4 |
|---|---|
| Product certifications | CB Scheme CCC CE EAC |
| IP degree of protection | IP00 conforming to IEC 60529 |
| Permissible ambient air temperature around the device | -20...70 °C at Uc -60...80 °C storage -5...55 °C operation |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms) |
| Height | 197 mm |
| Width | 168.5 mm |
| Depth | 181 mm |
| Net weight | 4.7 kg |
| Part number | LC1E250B5 |
|---|---|
| Type designation | LC1E |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 21.5 cm |
| Package 1 Width | 24 cm |
| Package 1 Length | 26 cm |
| Package 1 Weight | 5.4 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 77 cm |
| Package 2 Width | 80 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 57.404 kg |
| Unit Type of Package 3 | S06 |
| Number of Units in Package 3 | 12 |
| Package 3 Height | 73.5 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 77.8 kg |
| Shipping weight | 4.7 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
