Part number
LC1E25004M7
Model no
LC1E
$39.41 On request Dispatch — · From TürkiyeGet a Quote

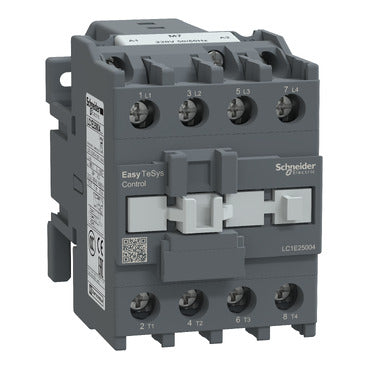

Schneider Electric LC1E25004M7 Easy TeSys Contactor 4P 4NO AC-1 40 A 220 V AC Coil Contactor

Easy TeSys contactor, 4P, 40 A AC-1 resistive load, 220 V AC coil, DIN rail mount.

Rated current
40 A
Rated operational voltage
220 V AC
Poles
3P
Description

About the LC1E

The Schneider Electric LC1E25004M7 is a 4-pole Easy TeSys contactor rated 40 A AC-1 for resistive-load switching at up to 440 V. It carries a 220 V AC 50/60 Hz coil with built-in 4NO auxiliary contacts, power and control connections by screw clamp terminals in a 45 mm wide DIN-rail housing.

Certifications & Standards

  • CB Scheme
  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-4-1

Selection Notes

The LC1E25004M7 is rated AC-1 only, so its 40 A figure applies to resistive loads such as heating elements and must not be read against AC-3 motor contactors of similar current. Four normally-open poles let it switch a complete 3-phase-plus-neutral heating circuit in one device; where motor starting is the application, the 3-pole AC-3 Easy TeSys contactors are the correct choice instead.

Specification

Full specification

77 values · Last verified 29 Oct 2026

Main 10

Range Easy TeSys
Range of product Easy TeSys Control
Product or component type Contactor
Device short name LC1E
Contactor application Resistive load
Utilisation category AC-1
Poles description 4P
[Ue] rated operational voltage Power circuit: <= 690 V AC 50/60 Hz
[Ie] rated operational current 40 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
[Uc] control circuit voltage 220 V AC 50/60 Hz

Complementary 25

Pole contact composition 4 NO
[Ith] conventional free air thermal current 40 A (at 55 °C) for power circuit
Irms rated making capacity 250 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity 200 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 240 A 40 °C - 10 s for power circuit 120 A 40 °C - 60 s for power circuit 50 A 40 °C - 600 s for power circuit
Associated fuse rating 40 A gG at <= 690 V coordination type 1 for power circuit
Average impedance 2.5 mOhm - Ith 40 A 50 Hz for power circuit
Power dissipation per pole 1.6 W AC-3 3.2 W AC-1
[Ui] rated insulation voltage 690 V conforming to IEC 60947-4-1
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Mechanical durability 10000000 cycles
Electrical durability 1200000 cycles AC-3 350000 cycles AC-1
Control circuit type AC at 50/60 Hz
Control circuit voltage limits 0.85...1.1 Uc (-5...55 °C):operational 50/60 Hz 0.3...0.6 Uc (-5...55 °C):drop-out 50/60 Hz
Inrush power in VA 95 VA 50 Hz cos phi 0.75 (at 20 °C) 95 VA 60 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA 8.3 VA 50 Hz cos phi 0.3 (at 20 °C) 8.5 VA 60 Hz cos phi 0.3 (at 20 °C)
Heat dissipation 2...3 W for control circuit
Operating time 12...22 ms on closing 4...19 ms on opening
Maximum operating rate 1800 cyc/h 60 °C
Connections - terminals Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1...4 mm2 - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1...2.5 mm2 - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1...4 mm2 - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1.5...6 mm2 - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1.5...6 mm2 - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1...6 mm2 - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1...4 mm2 - cable stiffness: flexible with cable end
Tightening torque Control circuit: 1.2 N.m Power circuit: 1.5 N.m
Auxiliary contact composition Without
Mounting support DIN rail Plate

Environment 12

Standards EN/IEC 60947-1 EN/IEC 60947-4-1 GB/T 14048.1 GB/T 14048.4
Product certifications CB Scheme CCC CE EAC
IP degree of protection IP2X conforming to IEC 60529
Protective treatment TH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Permissible ambient air temperature around the device -20...70 °C at Uc -60...80 °C storage -5...55 °C operation
Operating altitude 3000 m without derating
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor closed (10 Gn for 11 ms) Shocks contactor open (6 Gn for 11 ms)
Height 64 mm
Width 56 mm
Depth 93 mm
Net weight 0.52 kg
Show all 77 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LC1E25004M7
Type designation LC1E
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.9 cm
Package 1 Width 5.7 cm
Package 1 Length 8.4 cm
Package 1 Weight 554 g
Unit Type of Package 2 S02
Number of Units in Package 2 22
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 12.188 kg
Unit Type of Package 3 P06
Number of Units in Package 3 352
Package 3 Height 60 cm
Package 3 Width 80 cm
Package 3 Length 75 cm
Package 3 Weight 203.008 kg
Shipping weight 0.52 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 29 Oct 2026

Documents

Documents for LC1E25004M7

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CCC
  • EAC
  • CB Scheme
Quick answers

Questions about the LC1E

What is the rated current of LC1E?

The rated current of LC1E is 40 A.

Which supply voltage is LC1E rated for?

The rated operational voltage of LC1E is 220 V AC.

What is the HS code of LC1E for customs?

The tariff (HS) code on file for LC1E is 85365080.

Where does LC1E ship from, and how fast?

LC1E ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
