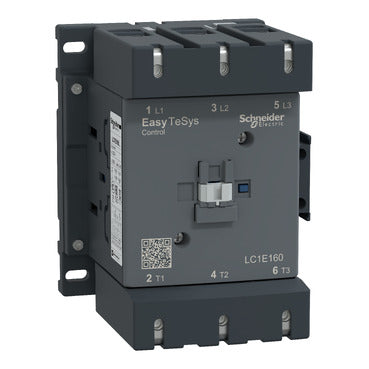

Schneider Electric LC1E160B5 Easy TeSys Contactor 3P 3NO AC-3 160 A 80 kW 24 V AC Coil Contactor

Easy TeSys contactor, 3P, 160 A AC-3, 80 kW at 415/440 V, 24 V AC coil, 1NO+1NC auxiliary contacts.

Rated current
160 A
Rated operational voltage
24 V AC
Motor power
80 kW
Poles
3P
Description

About the LC1E

The Schneider Electric LC1E160B5 is a 3-pole Easy TeSys contactor rated 160 A AC-3 at up to 440 V, switching motors up to 80 kW at 415/440 V. It carries a 24 V AC 50 Hz coil and built-in 1NO+1NC auxiliary contacts, with power connections by screw clamp terminals in a 120 mm wide DIN-rail or plate-mounted housing.

Certifications & Standards

  • CB Scheme
  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-4-1

Selection Notes

The LC1E160B5 is sized for 80 kW motors at 415/440 V and needs a 315 A gG fuse upstream for type-1 coordination at its 1280 A rated breaking capacity. With built-in 1NO+1NC contacts it covers both a run-feedback and a stop-interlock signal without an add-on block; its 0.8 Mcycles AC-3 durability and 1200 cycles/hour maximum rate reflect the heavier contact mass of this current class compared with the smaller-frame Easy TeSys units.

Specification

Full specification

78 values · Last verified 29 Oct 2026

Main 10

Range Easy TeSys
Range of product Easy TeSys Control
Product or component type Contactor
Device short name LC1E
Contactor application Motor control Resistive load
Utilisation category AC-3 AC-3e AC-1
Poles description 3P
[Ue] rated operational voltage Power circuit: <= 690 V AC 50/60 Hz
[Ie] rated operational current 160 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 100 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 200 A (at <40 °C) at <= 440 V AC AC-1 for power circuit
[Uc] control circuit voltage 24 V AC 50 Hz

Complementary 30

Motor power kW 45 kW at 220/230 V AC 50/60 Hz 75 kW at 380/400 V AC 80 kW at 415/440 V AC 90 kW at 500 V AC 100 kW at 660/690 V AC 100 kW at 660...690 V
Pole contact composition 3 NO
[Ith] conventional free air thermal current 200 A (at 40 °C) for power circuit
Irms rated making capacity 1600 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity 1280 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 1400 A 40 °C - 10 s for power circuit
Associated fuse rating 315 A gG at <= 690 V coordination type 1 for power circuit 10 A gG at <= 690 V for auxiliary contact circuit conforming to IEC 60947-5-1
Average impedance 0.6 mOhm - Ith 200 A 50 Hz for power circuit
Power dissipation per pole 24 W AC-1 15 W AC-3
[Ui] rated insulation voltage 690 V conforming to IEC 60947-4-1
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 8 kV coil not connected to the power circuit conforming to IEC 60947
Mechanical durability 4000000 cycles
Electrical durability 800000 cycles AC-3 250000 cycles AC-1
Control circuit type AC at 50 Hz
Control circuit voltage limits 0.85...1.1 Uc (-5...55 °C):operational 50 Hz 0.35...0.55 Uc (-5...55 °C):drop-out 50 Hz
Inrush power in VA 300 VA 50 Hz cos phi 0.9 (at 20 °C) 300 VA 60 Hz cos phi 0.9 (at 20 °C)
Hold-in power consumption in VA 22 VA 50 Hz cos phi 0.9 (at 20 °C) 22 VA 60 Hz cos phi 0.9 (at 20 °C)
Heat dissipation 3...8 W for control circuit
Operating time 20...50 ms on closing 6...20 ms on opening
Maximum operating rate 1200 cyc/h 55 °C
Connections - terminals Power circuit: screw clamp terminals 1 10...120 mm2 - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 10...120 mm2 - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 10...120 mm2 - cable stiffness: solid without cable end Control circuit: screw clamp terminals 1 1...2.5 mm2 - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1...2.5 mm2 - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1...2.5 mm2 - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1...2.5 mm2 - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1...2.5 mm2 - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1...2.5 mm2 - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 10...120 mm2 - cable stiffness: solid without cable end
Tightening torque Power circuit: 1.2 N.m Control circuit: 1.2 N.m
Auxiliary contact composition 1 NO + 1 NC
Minimum switching voltage 17 V for auxiliary contact circuit
Minimum switching current 5 mA for auxiliary contact circuit
Insulation resistance > 10 MOhm for auxiliary contact circuit
Non-overlap time 1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact
Mounting support Plate DIN rail

Environment 12

Standards EN/IEC 60947-1 EN/IEC 60947-4-1 EN/IEC 60947-5-1 GB/T 14048.1 GB/T 14048.4 GB/T 14048.5
Product certifications CB Scheme CCC CE EAC
IP degree of protection IP2X conforming to IEC 60529
Protective treatment TH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Permissible ambient air temperature around the device -20...70 °C at Uc -60...80 °C storage -5...55 °C operation
Operating altitude 3000 m without derating
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms)
Height 158 mm
Width 120 mm
Depth 132 mm
Net weight 2.3 kg
Show all 78 specifications ↓ Show less ↑26 more values in Identification, Contractual warranty, Logistics.

Identification 9

Part number LC1E160B5
Type designation LC1E
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
Last order date 30 Jun 2026 · as announced for Türkiye, our sourcing market
Replaced by LC1G1154EHEN · recommended by Schneider Electric

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 16.500 cm
Package 1 Width 17.500 cm
Package 1 Length 21.000 cm
Package 1 Weight 2.410 kg
Unit Type of Package 2 S06
Number of Units in Package 2 24
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 70.500 kg
Shipping weight 2.3 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 29 Oct 2026
