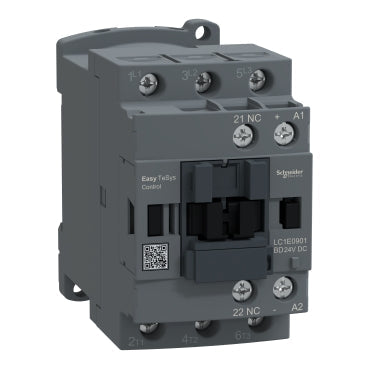

Schneider Electric LC1E0901BD Easy TeSys Control LC1E 3P 9A 24VDC Contactor

The Schneider Electric LC1E0901BD is a 3-pole Easy TeSys Control contactor rated 9 A (AC-3) / 4 kW at 400 V, with a 24 V DC coil and 1 NC auxiliary contacts.

Poles
3
AC-3 current (400 V)
9 A
Motor power (400 V)
4 kW
Coil voltage
24 V DC
Auxiliary contacts
1 NC
Description

About the LC1E0901BD

The Schneider Electric LC1E0901BD is an Easy TeSys Control LC1E contactor with three main poles (3 NO), rated 9 A AC-3 at up to 440 V and a 24 V DC coil. It switches motors up to 4 kW at 380/400 V and includes one normally-closed auxiliary contact, giving a fail-safe signal that opens when the contactor energizes.

Certifications & Standards

  • CB Scheme
  • CCC
  • CE
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-4-1
  • EN/IEC 60947-5-1
  • GB/T 14048.1
  • GB/T 14048.4
  • GB/T 14048.5

Selection Notes

At 9 A AC-3, the LC1E0901BD covers motors up to 4 kW at 380/400 V, one step above the 6 A LC1E frame in the same Easy TeSys Control range. Its 1 NC auxiliary contact opens when the contactor energizes, useful for interlocking or signalling that the main circuit is live — pick the 1 NO version instead if the application needs a run-confirmation signal. The 24 V DC coil suits control panels already running a 24 V DC rail.

Applications

Used as the motor-switching contactor in Easy TeSys Control motor-control panels and machine-building enclosures where a compact 45 mm-wide DIN-rail contactor with a 24 V DC coil and one auxiliary contact is needed for mid-size three-phase motors.

Applications (manufacturer): Motor control, Resistive load

Specification

Full specification

101 values · Last verified 03 Nov 2026

General 5

Series Easy TeSys Control
Contactor size / frame E09
Number of poles 3
Main contact configuration 3 NO
Utilisation categories AC-3 AC-3e AC-1

Electrical 8

Rated operational current Ie, AC-3, 400 V 9 A
Rated motor power, AC-3, 400 V 4 kW
Motor power at other voltages, AC-3 2.2 kW @ 220/230 V · 4 kW @ 415/440 V · 4 kW @ 500 V · 4 kW @ 660/690 V · 5.5 kW @ 660...690 V
Rated operational current, AC-1 (60 °C) 25 A
Conventional free-air thermal current Ith 25 A
Max. rated operational voltage Ue 690 V
Rated insulation voltage Ui 690 V
Rated impulse withstand voltage Uimp 6 kV

Control circuit 3

Rated control supply voltage Uc 24 V
Coil type DC
Coil holding power 6 W | VA
Show all 48 specifications ↓ Show less ↑32 more values in Identification, Auxiliary contacts, Mechanical, Dimensions and weight, Environmental, Certifications and standards, Logistics. 53 more as published by Schneider Electric are shown on request.

Identification 10

Part number LC1E0901BD
Model code E09
Brand Schneider Electric
Series Easy TeSys Control
Family Contactors
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
Catalogue number explained LC1 = 3-pole contactor; E = Easy TeSys Control range; 09 = 9 A AC-3 rating; 01 = built-in auxiliary contact (1 NC); BD = coil code (24 V DC)

Auxiliary contacts 4

Built-in auxiliary contacts, NO 0
Built-in auxiliary contacts, NC 1
Auxiliary contacts 1 NC
Mirror contact (IEC 60947-4-1 Annex F) No

Mechanical 2

Main circuit connection Screw terminal
Mounting 35 mm DIN rail, Panel (screw) mounting

Dimensions and weight 4

Width 45 mm
Height 77 mm
Depth 93 mm
Net weight 0.48 kg

Environmental 4

Ambient operating temperature -5 … 55 °C
Degree of protection IP20
Mechanical durability 10000000 cycles
Max. operating frequency, AC-3 1800 cycles/h

Certifications and standards 2

Certifications CB Scheme, CCC, CE, EAC
Conforming standards EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.1, GB/T 14048.4, GB/T 14048.5

Logistics 6

Package dimensions (L × W × H) 112 × 94 × 52 mm
Package weight 0.487 kg
Shipping weight 0.48 kg
Ships from Türkiye
Dispatch —
Stock On request
Additional manufacturer data 53 53 more values as published by Schneider Electric, shown on request.

Additional manufacturer data 53

Range Easy TeSys
Product or component type Contactor
Device short name LC1E
Irms rated making capacity 117 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity 76.5 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 105 A 40 °C - 10 s for power circuit 61 A 40 °C - 60 s for power circuit 30 A 40 °C - 600 s for power circuit
Associated fuse rating 20 A gG at <= 690 V coordination type 1 for power circuit 10 A gG at <= 690 V for auxiliary contact circuit conforming to IEC 60947-5-1
Average impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit
Power dissipation per pole 0.2 W AC-3 1.6 W AC-1
Overvoltage category III
Pollution degree 3
Electrical durability 1400000 cycles AC-3 at Ue <= 440 V 150000 cycles AC-1 at Ue <= 440 V
Control circuit type DC
Control circuit voltage limits 0.85...1.1 Uc (-5...55 °C):operational DC 0.1...0.25 Uc (-5...55 °C):drop-out DC
Inrush power in W 6 W (at 20 °C)
Operating time 53...72 ms on closing 16...24 ms on opening
Time constant 28 ms
Tightening torque Power circuit: 1.7 N.m Control circuit: 1.7 N.m
Minimum switching voltage 17 V for auxiliary contact circuit
Minimum switching current 5 mA for auxiliary contact circuit
Insulation resistance > 10 MOhm for auxiliary contact circuit
Protective treatment TH conforming to IEC 60068-2-30 test Db
Operating altitude 3000 m without derating
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness Shocks contactor open (5 Gn for 11 ms) conforming to IEC 60068-2-7 Shocks contactor closed (10 Gn for 11 ms) conforming to IEC 60068-2-7 Vibrations contactor open (1.5 Gn, 5...300 Hz) conforming to IEC 60068-2-6 Vibrations contactor closed (3 Gn, 5...300 Hz) conforming to IEC 60068-2-6
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Unit Type of Package 2 S02
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.604 kg
Unit Type of Package 3 P06
Number of Units in Package 3 240
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 129.000 kg
Total lifecycle Carbon footprint 475 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 3 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 0.1 kg CO2 eq.
Carbon footprint of the installation phase [A5] 0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6] 470 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4] 1 kg CO2 eq.
Environmental Disclosure Product Environmental Profile
Packaging made with recycled cardboard Yes
Packaging without single use plastic Yes
SCIP Number 66d8b16b-4ee4-4193-a748-b691b2425131
Recyclability potential, in % 73
End of life manual availability End of Life Information
Take-back No
WEEE Label The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Source: manufacturer data · Last verified: 03 Nov 2026
