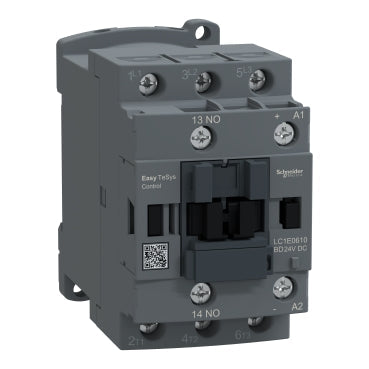

Schneider Electric LC1E0610BD Easy TeSys Control LC1E 3P 6A 24VDC Contactor

The Schneider Electric LC1E0610BD is an Easy TeSys Control LC1E contactor with three main poles (3 NO), rated 6 A AC-3 at up to 440 V and a 24 V DC coil. It switches motors up to 2.2 kW at 380/400 V and includes one normally-open auxiliary contact, giving a confirmation signal when the contactor is energized.

Technical Specifications

Certifications & Standards

• CB Scheme
• CCC
• CE
• EAC
• EN/IEC 60947-1
• EN/IEC 60947-4-1
• EN/IEC 60947-5-1
• GB/T 14048.1
• GB/T 14048.4
• GB/T 14048.5

Selection Notes

The LC1E0610BD's 1 NO auxiliary contact closes when the main contacts engage, giving a confirmation signal for PLC feedback or an indicator lamp — the 1 NC version in the same LC1E frame is the one to pick instead when the application needs a fail-safe open-on-energize signal. At 6 A AC-3 it covers motors up to 2.2 kW at 380/400 V. The 24 V DC coil suits panels already running a 24 V DC control rail.

Applications

Used as the motor-switching contactor in Easy TeSys Control motor-control panels and machine-building enclosures where a compact 45 mm-wide DIN-rail contactor with a 24 V DC coil and a run-confirmation auxiliary contact is needed for small three-phase motors.
