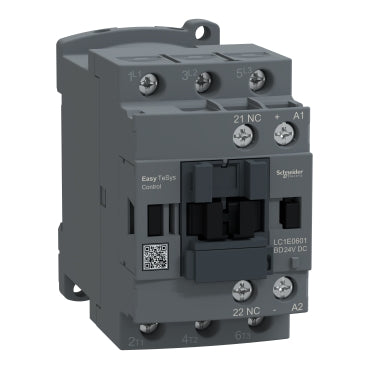

Easy TeSys Control LC1E contactor, 3P, 6A AC-3, 24V DC coil, 1 NC auxiliary contact, IP20.
The Schneider Electric LC1E0601BD is an Easy TeSys Control LC1E contactor with three main poles (3 NO), rated 6 A AC-3 at up to 440 V and a 24 V DC coil. It switches motors up to 2.2 kW at 380/400 V and includes one normally-closed auxiliary contact, giving a fail-safe signal that opens when the contactor energizes.
The LC1E0601BD's 1 NC auxiliary contact opens when the contactor energizes, useful for interlocking or for signalling that the main circuit has gone live. At 6 A AC-3, it covers motors up to 2.2 kW at 380/400 V; the same LC1E frame scales up to higher current ratings for larger motors without changing the mounting footprint. Its 24 V DC coil suits control systems already running a 24 V DC rail, avoiding a separate AC control transformer.
Used as the motor-switching contactor in Easy TeSys Control motor-control panels and machine-building enclosures where a compact 45 mm-wide DIN-rail contactor with a 24 V DC coil and one auxiliary contact is needed for small three-phase motors.
| Range | Easy TeSys |
|---|---|
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Device short name | LC1E |
| Contactor application | Motor control Resistive load |
| Utilisation category | AC-3 AC-3e AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 6 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 6 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 20 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 24 V DC |
| Motor power kW | 1.1 kW at 220/230 V AC 50/60 Hz 2.2 kW at 380/400 V AC 2.2 kW at 415/440 V AC 3 kW at 500 V AC 3 kW at 660/690 V AC 3 kW at 660...690 V |
|---|---|
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 20 A (at 55 °C) for power circuit |
| Irms rated making capacity | 78 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 51 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 80 A 40 °C - 10 s for power circuit 45 A 40 °C - 60 s for power circuit 20 A 40 °C - 600 s for power circuit |
| Associated fuse rating | 12 A gG at <= 690 V coordination type 1 for power circuit 10 A gG at <= 690 V for auxiliary contact circuit conforming to IEC 60947-5-1 |
| Average impedance | 2.5 mOhm - Ith 20 A 50 Hz for power circuit |
| Power dissipation per pole | 0.09 W AC-3 1 W AC-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 1400000 cycles AC-3 at Ue <= 440 V 150000 cycles AC-1 at Ue <= 440 V |
| Control circuit type | DC |
| Control circuit voltage limits | 0.85...1.1 Uc (-5...55 °C):operational DC 0.1...0.25 Uc (-5...55 °C):drop-out DC |
| Inrush power in W | 6 W (at 20 °C) |
| Hold-in power consumption in W | 6 W at 20 °C |
| Operating time | 53...72 ms on closing 16...24 ms on opening |
| Time constant | 28 ms |
| Maximum operating rate | 1800 cyc/h 60 °C |
| Connections - terminals | Power circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 1...2.5 mm2 - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1...4 mm2 - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1...4 mm2 - cable stiffness: solid without cable end Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1...2.5 mm2 - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1...4 mm2 - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1...4 mm2 - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1...4 mm2 - cable stiffness: solid without cable end |
| Tightening torque | Power circuit: 1.7 N.m Control circuit: 1.7 N.m |
| Auxiliary contact composition | 1 NC |
| Minimum switching voltage | 17 V for auxiliary contact circuit |
| Minimum switching current | 5 mA for auxiliary contact circuit |
| Insulation resistance | > 10 MOhm for auxiliary contact circuit |
| Mounting support | DIN rail Plate |
| Standards | EN/IEC 60947-1 EN/IEC 60947-4-1 EN/IEC 60947-5-1 GB/T 14048.1 GB/T 14048.4 GB/T 14048.5 |
|---|---|
| Product certifications | CB Scheme CCC CE EAC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068-2-30 test Db |
| Permissible ambient air temperature around the device | -20...70 °C at Uc -60...80 °C storage -5...55 °C operation |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Shocks contactor open (5 Gn for 11 ms) conforming to IEC 60068-2-7 Shocks contactor closed (10 Gn for 11 ms) conforming to IEC 60068-2-7 Vibrations contactor open (1.5 Gn, 5...300 Hz) conforming to IEC 60068-2-6 Vibrations contactor closed (3 Gn, 5...300 Hz) conforming to IEC 60068-2-6 |
| Height | 77 mm |
| Width | 45 mm |
| Depth | 93 mm |
| Net weight | 0.48 kg |
| Part number | LC1E0601BD |
|---|---|
| Type designation | LC1E |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.400 cm |
| Package 1 Width | 9.400 cm |
| Package 1 Length | 11.200 cm |
| Package 1 Weight | 490.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.620 kg |
| Shipping weight | 0.48 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
