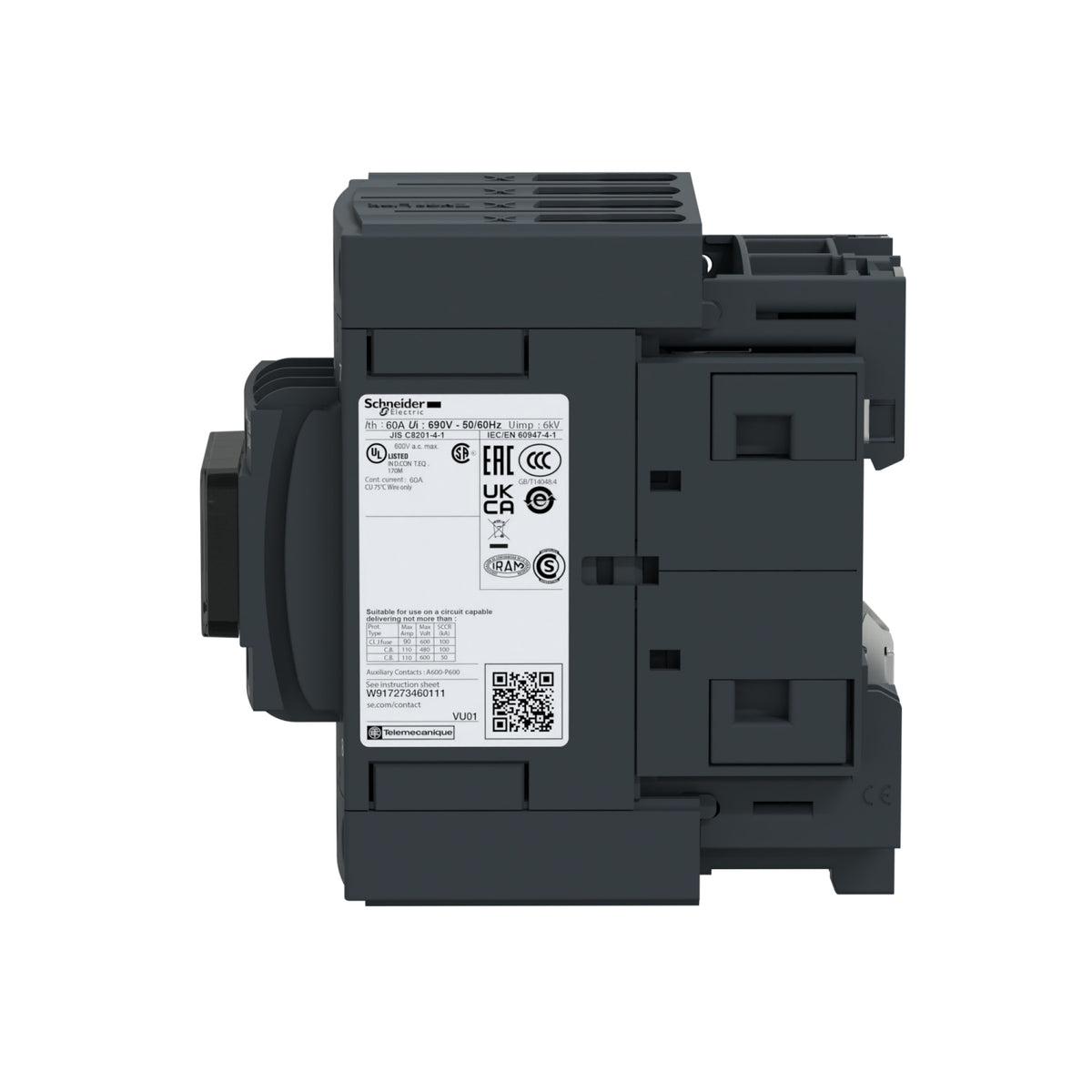

Schneider Electric LC1DT60AM7 TeSys Deca Contactor 4P 4NO AC-1 60 A 220 V AC Coil Contactor

The Schneider Electric LC1DT60AM7 is a 4-pole TeSys Deca contactor rated 60 A AC-1 for non-inductive and resistive loads up to 440 V. It runs on a 220 V AC 50/60 Hz coil, connects power via EverLink BTR screw connectors, and includes a built-in 1 NO + 1 NC auxiliary block with a mirror-certified NC contact.

Technical Specifications

Certifications & Standards

• LROS
• UL
• GOST
• BV
• CCC
• CSA
• RINA
• DNV
• GL
• CSA C22.2 No 14
• EN 60947-4-1
• EN 60947-5-1
• IEC 60947-4-1
• IEC 60947-5-1
• UL 60947-4-1
• IEC 60335-1

Selection Notes

The EverLink BTR power connectors hold their torque through thermal cycling better than plain screw clamp terminals, which matters at 60 A where repeated heat-up and cool-down can loosen a standard terminal. The 220 V AC coil matches a higher control transformer tap; pick the 110 V coil sibling instead when the control voltage differs, and move to the LC1DT80 frame only if the resistive load exceeds 60 A.

Applications

Lighting banks, heater circuits, and resistive-load distribution panels up to 60 A, including marine and offshore boards covered by the GL/DNV/LROS/RINA/BV society approvals. The EverLink terminals also suit panels with frequent maintenance disconnections.
