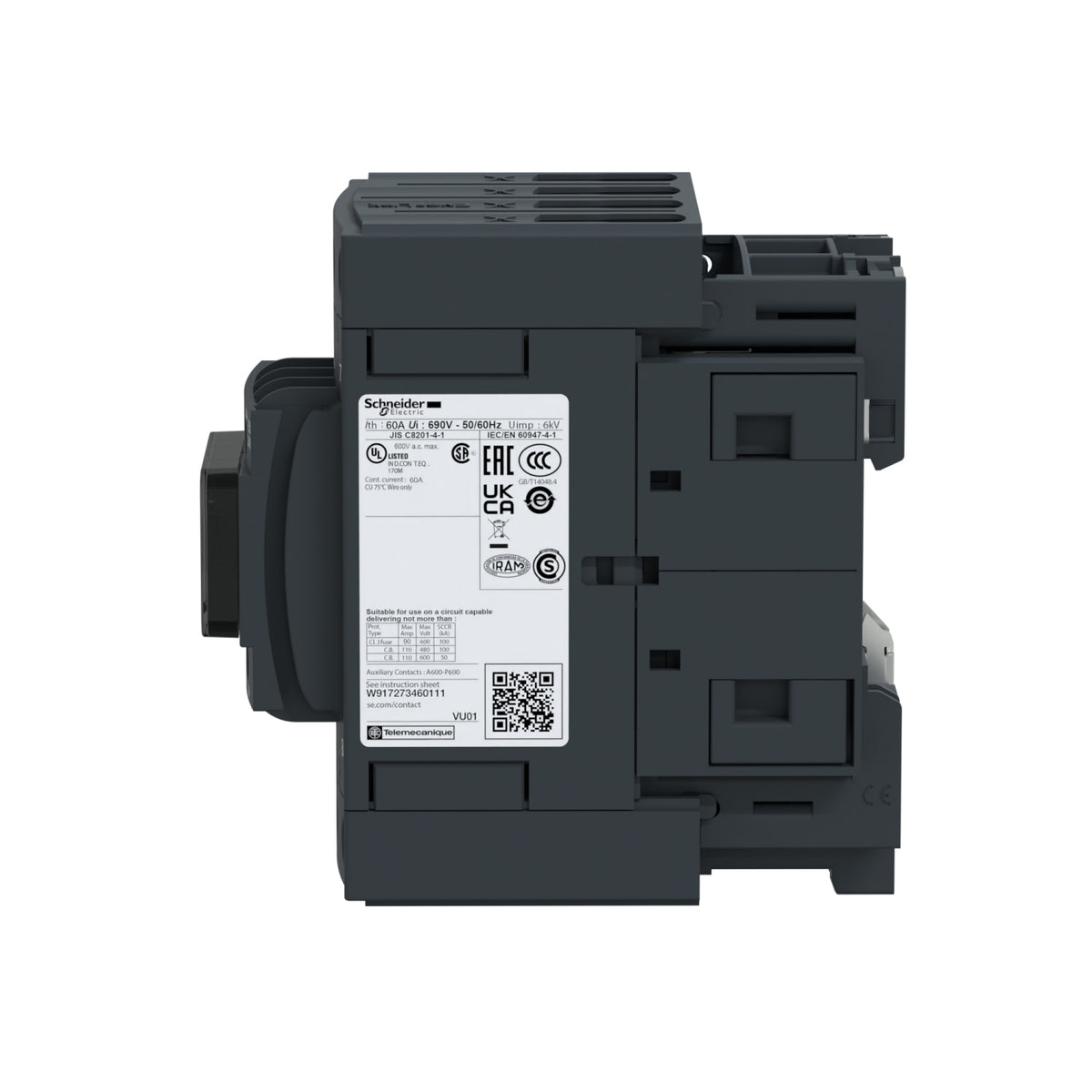

Schneider Electric LC1DT60ABNE TeSys Deca Contactor 4P 4NO AC-1 60 A 24-60 V AC/DC Coil EverLink BTR Contactor

% $-211.80
Schneider Electric LC1DT60ABNE TeSys Deca Contactor – 60 A AC-1
Schneider Electric LC1DT60ABNE TeSys Deca Contactor – 60 A AC-1

Schneider Electric LC1DT60ABNE TeSys Deca Contactor 4P 4NO AC-1 60 A 24-60 V AC/DC Coil EverLink BTR Contactor

Brand: Schneider Electric
Reference No: LC1DT60ABNE
Series: TeSys Deca Advanced
Tariff Code (HS): 85365080
Rated Current: 60 A
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$211.80

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LC1DT60ABNE is a 4-pole TeSys Deca contactor rated 60 A AC-1 (up to 440 V) for resistive and non-motor switching duty, with a rated breaking capacity of 800 A at 440 V. It carries a 24-60 V AC/DC coil, a mechanically-linked 1 NO + 1 NC auxiliary contact with mirror-contact certification, and EverLink BTR power terminals for DIN-rail or plate mounting.

Technical Specifications

Reference LC1DT60ABNE
Brand Schneider Electric
Range TeSys Deca Advanced
Device short name LC1D
GTIN 3606489493448
Poles 4P
Pole contact composition 4 NO
Utilisation category AC-1
Rated operational current (Ie), AC-1 60 A at ≤ 440 V AC
Rated operational voltage (Ue) ≤ 690 V AC 25...400 Hz
Control circuit voltage (Uc) 24...60 V AC 50/60 Hz / 24...60 V DC (electronic)
Auxiliary contact composition 1 NO + 1 NC (mirror contact)
Conventional free air thermal current (Ith) 60 A
Rated making capacity 800 A at 440 V
Rated breaking capacity 800 A at 440 V
Rated short-time withstand current (Icw) 720 A - 1 s
Associated fuse rating 80 A gG (coordination type 1)
Rated insulation voltage (Ui) 690 V
Rated impulse withstand voltage (Uimp) 6 kV
IP degree of protection IP20 (front face)
Mounting plate / rail
Terminal type EverLink BTR
Maximum operating rate 3600 cyc/h
Permissible ambient air temperature -40...60 °C / 60...70 °C (derated)
Operating altitude 3000 m without derating
Dimensions (H x W x D) 122 x 70 x 120 mm
Net weight 1.23 kg
Country of origin FR

Certifications & Standards

  • IEC 60947-4-1
  • UL
  • CSA
  • CCC
  • EAC

Selection Notes

The EverLink BTR power connectors hold their torque over thermal cycling without re-tightening, which matters at this current where loose screw terminals are a common failure point. The built-in 1 NO + 1 NC mirror contact lets this unit feed a safety-rated interlock circuit directly, without an add-on auxiliary block. The 800 A breaking capacity at 440 V sets the ceiling for downstream short-circuit protection coordination.

Technical Details

Short Description
Schneider Electric LC1DT60ABNE TeSys Deca contactor, 4P 4NO, AC-1 60 A, 24-60 V AC/DC coil.
Rated Current (Ampere)
60 A
Mounting Type
DIN rail
Protection Type
IP20 (front face)
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
LC1DT
Tariff Code
85365080
