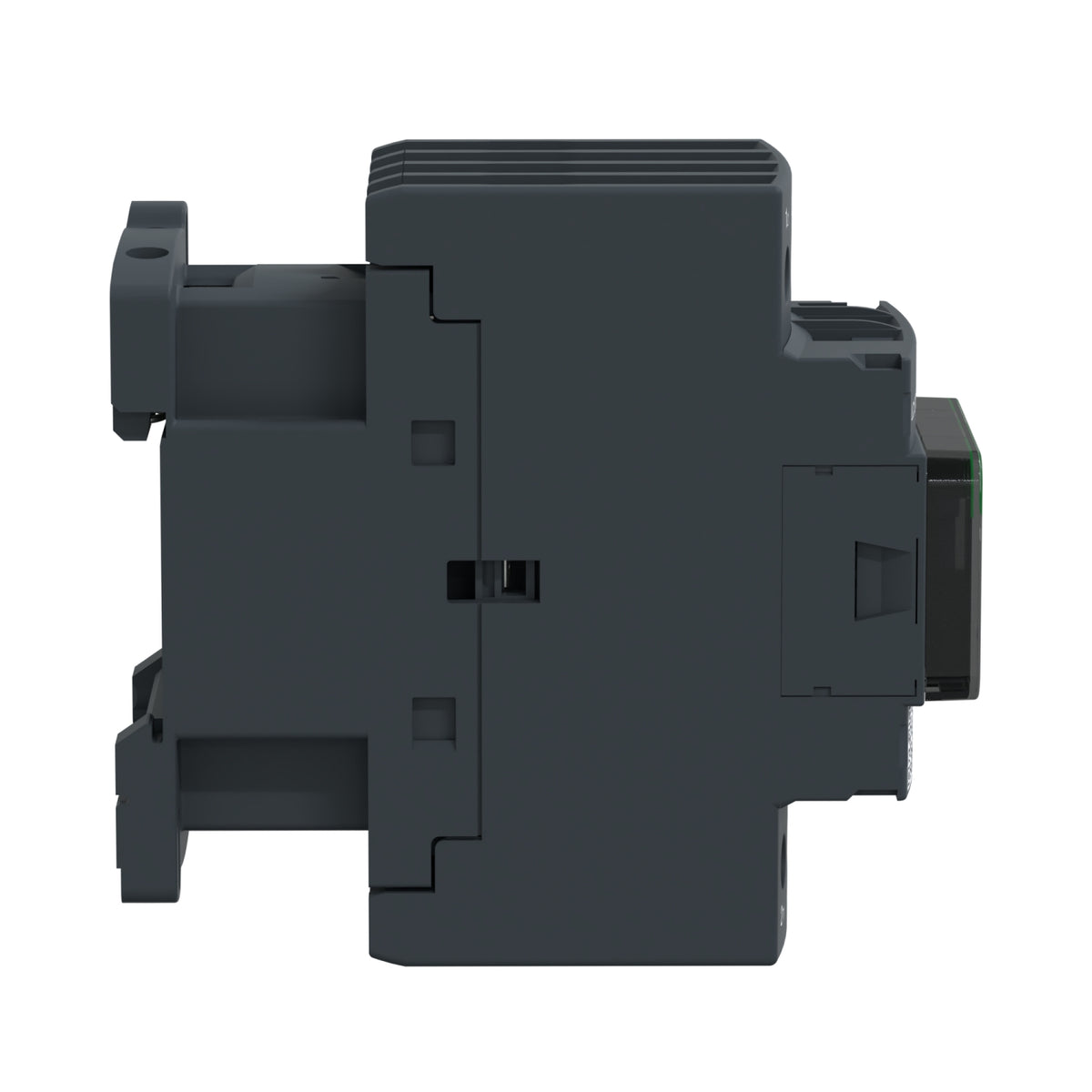

Schneider Electric LC1DT32M7 TeSys Deca Contactor 4P 4NO AC-1 32 A 220 V AC Coil Contactor

The Schneider Electric LC1DT32M7 is a compact 4-pole TeSys Deca contactor rated 32 A AC-1 for non-inductive and resistive loads up to 440 V. It runs on a 220 V AC 50/60 Hz coil and includes a built-in 1 NO + 1 NC auxiliary block with a mirror-certified NC contact in a 45 mm frame.

Technical Specifications

Certifications & Standards

• DNV
• GL
• CCC
• LROS
• RINA
• BV
• GOST
• UL
• CSA
• CB Scheme
• CSA C22.2 No 14
• EN 60947-4-1
• EN 60947-5-1
• IEC 60947-4-1
• IEC 60947-5-1
• UL 60947-4-1
• IEC 60335-1

Selection Notes

The built-in 1 NO + 1 NC auxiliary block and 45 mm frame width make this the compact choice for panels that need signalling or interlocking without an add-on block. The 220 V AC coil matches a higher control transformer tap; pick the 24 V coil sibling instead when the control voltage differs, and move to the LC1DT40FD frame only if the resistive load exceeds 32 A.

Applications

Lighting and heater circuit switching, control panel auxiliary load control, and compact distribution boards running a 220 V AC control transformer. The 45 mm frame also fits densely populated control cabinets where several contactors share a single DIN rail segment.
