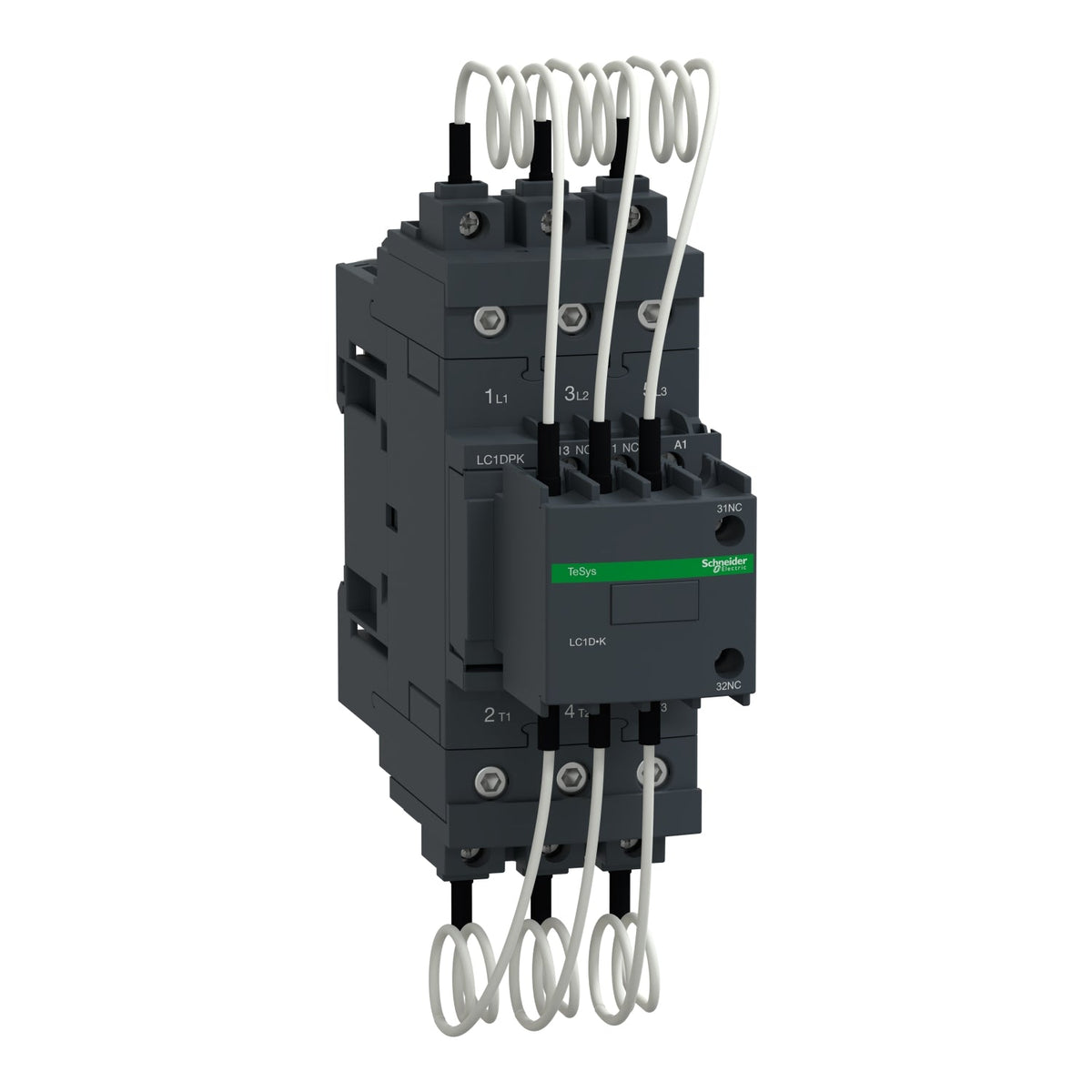

Schneider Electric TeSys Deca capacitor-duty contactor, 30 kvar at 400 V, 220 V AC 50/60 Hz coil, 1NO+2NC contacts.
The Schneider Electric LC1DPKM7 is a 3-pole TeSys Deca capacitor-duty contactor rated 30 kvar at 400 V (50 kvar at 690 V) for switching three-phase power-factor-correction capacitor banks. It runs on a 220 V AC 50/60 Hz coil, includes 1 NO + 2 NC instantaneous auxiliary contacts with front-mounted early-make poles and pre-wired damping resistors, and mounts on a 55 mm wide DIN rail or plate.
Pre-wired damping resistors on the early-make poles limit inrush current when switching capacitor banks — a feature a plain LC1D motor contactor lacks, so it should not be substituted for power-factor-correction duty. The 100 cyc/h operating-rate ceiling is set by the damping-resistor thermal limit rather than contact life, which bounds how often an automatic PFC regulator can step this stage. Choose a higher-kvar variant in the same family if the capacitor bank step exceeds 30 kvar at 400 V.
| Range | TeSys TeSys Deca |
|---|---|
| Product name | TeSys LC1D.K TeSys Deca |
| Product or Component Type | Capacitor duty contactor |
| Device short name | LC1DPK |
| Device Application | Control |
| Contactor application | Power factor correction |
| Utilisation category | AC-6b |
| Poles description | 3P |
| power pole contact composition | 3 NO |
| Device location in system | Inside delta interruption Line interruption |
| [Ue] rated operational voltage | Power circuit 690 V AC 50/60 Hz |
| Reactive power rating | 17 kvar 230 V AC 50 Hz 140 °F (60 °C) 30 kvar 400 V AC 50 Hz 140 °F (60 °C) 32 kvar 440 V AC 50 Hz 140 °F (60 °C) 50 kvar 690 V AC 50 Hz 140 °F (60 °C) 16.5 kvar 230 V AC 60 Hz 140 °F (60 °C) 33.3 kvar 460 V AC 60 Hz 140 °F (60 °C) 40 kvar 575 V AC 60 Hz 140 °F (60 °C) |
| Control circuit type | AC 50/60 Hz |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Auxiliary contact composition | 1 NO + 2 NC instantaneous |
| Electrical durability | 300000 cycles 400 V 200000 cycles 690 V |
| Mounting Support | DIN rail Plate |
| Standards | EN/IEC 60947-1 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC 60335-1 |
| Product Certifications | IECEE CB Scheme UL CSA UKCA |
| Connections - terminals | Control circuit: screw clamp terminals 1 0.002...0.006 in2 (1...4 mm2) - cable stiffness: solid Control circuit: screw clamp terminals 2 0.002...0.006 in2 (1...4 mm2) - cable stiffness: solid Control circuit: screw clamp terminals 1 0.002...0.006 in2 (1...4 mm2) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in2 (1...4 mm2) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.002...0.006 in2 (1...4 mm2) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 0.002...0.004 in2 (1...2.5 mm2) - cable stiffness: flexible with cable end Power circuit: EverLink BTR screw connectors 1 0.002...0.05 in2 (1...35 mm2) - cable stiffness: solid Power circuit: EverLink BTR screw connectors 2 0.002...0.04 in2 (1...25 mm2) - cable stiffness: solid Power circuit: EverLink BTR screw connectors 1 0.002...0.05 in2 (1...35 mm2) - cable stiffness: flexible with or without cable end Power circuit: EverLink BTR screw connectors 2 0.002...0.04 in2 (1...25 mm2) - cable stiffness: flexible with or without cable end |
| Tightening torque | Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Power circuit 44.3 lbf.in (5 N.m) EverLink BTR screw connectors 0.002...0.04 in2 (1...25 mm2) Power circuit 70.8 lbf.in (8 N.m) EverLink BTR screw connectors 0.05 in2 (35 mm2) |
| Maximum operating rate | 100 cyc/h |
| Auxiliary contacts type | Mechanically linked 1 NO + 2 NC IEC 60947-5-1 |
|---|
| IP degree of protection | IP20 front face IEC 60529 |
|---|---|
| Ambient Air Temperature for Operation | 23...140 °F (-5...60 °C) |
| Ambient Air Temperature for Storage | -76...176 °F (-60...80 °C) |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Height | 6.5 in (166 mm) |
| Width | 2.2 in (55 mm) |
| Depth | 6.1 in (156 mm) |
| Net Weight | 2.9 lb(US) (1.3 kg) |
| Part number | LC1DPKM7 |
|---|---|
| Type designation | LC1DPK |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480401268 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 1.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
