Part number
LC1DGKM7
Model no
LC1DGK
$73.69 On request Dispatch — · From TürkiyeGet a Quote

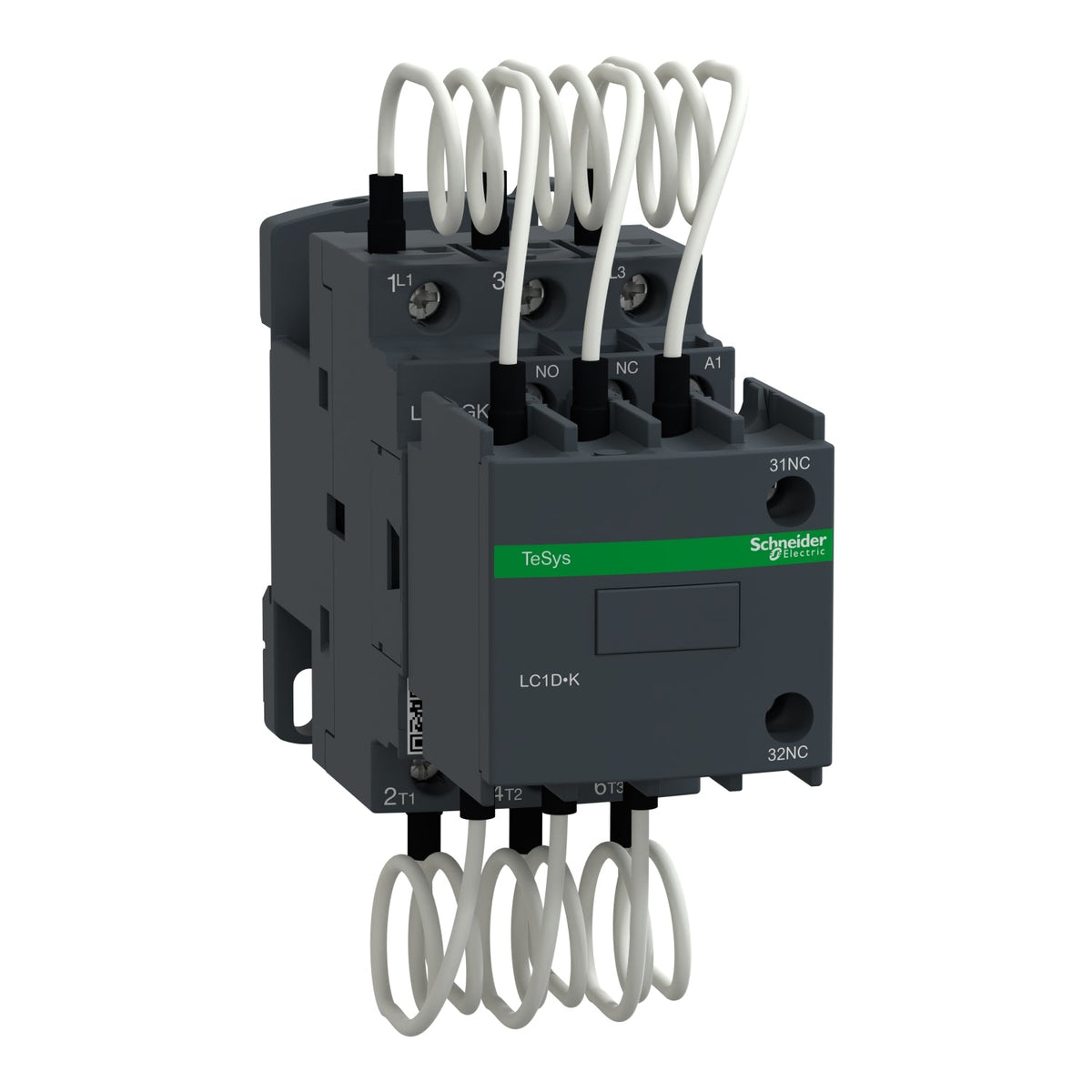

Schneider Electric LC1DGKM7 TeSys Deca Capacitor Duty Contactor 3P 16.7 kvar 400 V 220 V AC Coil Contactor

Schneider Electric TeSys Deca capacitor-duty contactor, 16.7 kvar at 400 V, 220 V AC 50/60 Hz coil, 1NO+2NC contacts.

Rated operational voltage
220 V AC
Poles
3P
EAN
3606480401800
Description

About the LC1DGK

The Schneider Electric LC1DGKM7 is a 3-pole TeSys Deca capacitor-duty contactor rated 16.7 kvar at 400 V (28.5 kvar at 690 V) for switching three-phase power-factor-correction capacitor banks. It runs on a 220 V AC 50/60 Hz coil, includes 1 NO + 2 NC instantaneous auxiliary contacts with front-mounted early-make poles and pre-wired damping resistors, and mounts on a 45 mm wide DIN rail or plate.

Certifications & Standards

  • IECEE CB Scheme
  • UKCA
  • EN/IEC 60947-1
  • EN/IEC 60947-4-1
  • IEC 60335-1

Selection Notes

Pre-wired damping resistors on the early-make poles limit inrush current when switching capacitor banks — a feature a plain LC1D motor contactor lacks, so it should not be substituted for power-factor-correction duty. The 240 cyc/h operating-rate ceiling is set by the damping-resistor thermal limit rather than contact life, which bounds how often an automatic PFC regulator can step this stage. Choose a higher-kvar variant in the same family if the capacitor bank step exceeds 16.7 kvar at 400 V.

Specification

Full specification

44 values · Last verified 29 Oct 2026

Main 21

Range TeSys TeSys Deca
Product name TeSys LC1D.K TeSys Deca
Product or Component Type Capacitor duty contactor
Device short name LC1DGK
Device Application Control
Contactor application Power factor correction
Utilisation category AC-6b
Poles description 3P
power pole contact composition 3 NO
[Ue] rated operational voltage Power circuit 690 V AC 50/60 Hz
Reactive power rating 9.5 kvar 230 V AC 50 Hz 140 °F (60 °C) 16.7 kvar 400 V AC 50 Hz 140 °F (60 °C) 18 kvar 440 V AC 50 Hz 140 °F (60 °C) 28.5 kvar 690 V AC 50 Hz 140 °F (60 °C)
Control circuit type AC 50/60 Hz
[Uc] control circuit voltage 220 V AC 50/60 Hz
Auxiliary contact composition 1 NO + 2 NC instantaneous
Electrical durability 300000 cycles 400 V 200000 cycles 690 V
Mounting Support DIN rail Plate
Standards EN/IEC 60947-1 EN/IEC 60947-4-1 IEC 60335-1
Product Certifications IECEE CB Scheme UKCA
Connections - terminals Control circuit: screw clamp terminals 1 0.002...0.006 in2 (1...4 mm2) - cable stiffness: solid Control circuit: screw clamp terminals 2 0.002...0.006 in2 (1...4 mm2) - cable stiffness: solid Control circuit: screw clamp terminals 1 0.002...0.006 in2 (1...4 mm2) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in2 (1...4 mm2) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.002...0.006 in2 (1...4 mm2) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 0.002...0.004 in2 (1...2.5 mm2) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 0.004...0.02 in2 (2.5...16 mm2) - cable stiffness: solid Power circuit: screw clamp terminals 2 0.004...0.009 in2 (2.5...6 mm2) - cable stiffness: solid Power circuit: screw clamp terminals 1 0.002...0.02 in2 (1.5...10 mm2) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 0.002...0.009 in2 (1.5...6 mm2) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 0.002...0.02 in2 (1...10 mm2) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 0.002...0.006 in2 (1...4 mm2) - cable stiffness: flexible with cable end
Tightening torque Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Power circuit 22.1 lbf.in (2.5 N.m) screw clamp terminals
Maximum operating rate 240 cyc/h

Complementary 1

Auxiliary contacts type Mechanically linked 1 NO + 2 NC IEC 60947-5-1

Environment 8

IP degree of protection IP20 front face IEC 60529
Ambient Air Temperature for Operation 23...140 °F (-5...60 °C)
Ambient Air Temperature for Storage -76...176 °F (-60...80 °C)
Operating altitude 0...9842.52 ft (0...3000 m)
Height 4.9 in (125 mm)
Width 1.8 in (45 mm)
Depth 5 in (127 mm)
Net Weight 1.3 lb(US) (0.6 kg)
Show all 44 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LC1DGKM7
Type designation LC1DGK
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480401800

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.6 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 29 Oct 2026

Documents

Documents for LC1DGKM7

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UKCA
  • CB Scheme
Quick answers

Questions about the LC1DGK

Which supply voltage is LC1DGK rated for?

The rated operational voltage of LC1DGK is 220 V AC.

What is the HS code of LC1DGK for customs?

The tariff (HS) code on file for LC1DGK is 853650.

What is the EAN of LC1DGK?

The EAN (GTIN) of LC1DGK is 3606480401800.

Where does LC1DGK ship from, and how fast?

LC1DGK ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
