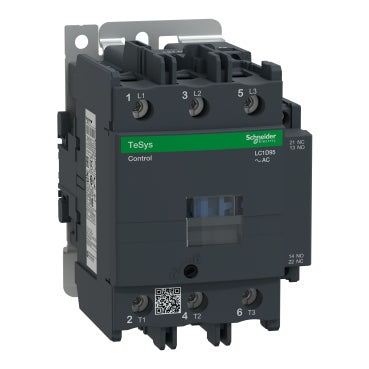

Schneider Electric LC1D95E7 TeSys Deca Contactor 3P 3NO AC-3 95 A 48 V AC Coil Contactor

The Schneider Electric LC1D95E7 is a 3-pole TeSys Deca contactor rated 95 A AC-3 at up to 440 V, switching motors up to 45 kW at 400 V. It ships with a 48 V AC 50/60 Hz coil and a built-in 1 NO + 1 NC auxiliary block with a mirror-certified NC contact for interlocking.

Technical Specifications

Certifications & Standards

• CCC
• UL
• CB Scheme
• CSA
• CE
• UKCA
• Marine
• EAC
• EN 60947-4-1
• EN 60947-5-1
• IEC 60947-4-1
• IEC 60947-5-1
• CSA C22.2 No 14
• UL 60947-4-1

Selection Notes

The built-in 1 NO + 1 NC auxiliary block covers start/stop and interlocking wiring without an add-on contact block, and the mirror-certified NC contact qualifies the pair for safety-related position monitoring per EN ISO 13849-1. Pick a sibling in the LC1D range only when the coil voltage differs or the load exceeds the 95 A AC-3 / 45 kW rating built into this frame; the 125 A AC-1 rating covers resistive loads above the motor-duty figure.

Applications

Direct-on-line motor starters up to 45 kW at 400 V, pump and fan control panels, and compressor starter cabinets where a 48 V AC control coil matches a low-voltage control transformer tap.
