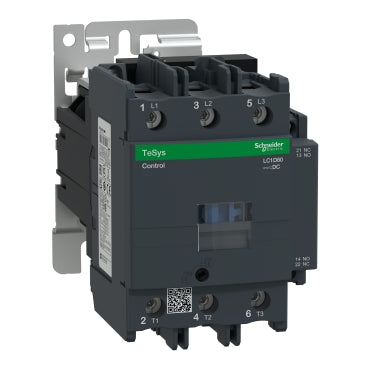

Schneider Electric LC1D80FD TeSys Deca Contactor 3P 3NO AC-3 80 A 110 V DC Coil Contactor

The Schneider Electric LC1D80FD is a 3-pole TeSys Deca contactor rated 80 A AC-3 at up to 440 V, switching motors up to 37 kW at 400 V. It ships with a 110 V DC coil carrying a built-in transient suppressor module and a 1 NO + 1 NC auxiliary block with a mirror-certified NC contact.

Technical Specifications

Certifications & Standards

• CCC
• UL
• CB Scheme
• CSA
• CE
• UKCA
• Marine
• EAC
• EN 60947-4-1
• EN 60947-5-1
• IEC 60947-4-1
• IEC 60947-5-1
• CSA C22.2 No 14
• UL 60947-4-1

Selection Notes

The 110 V DC coil with built-in transient suppressor module suits panels powered from a DC control bus or battery backup rather than a transformer tap, and it lengthens the frame depth to 186 mm versus the AC-coil version at this current rating. Pick this DC-coil variant when the control architecture is already 110 V DC; choose an AC-coil sibling in the LC1D range when the panel runs on a standard AC control transformer instead.

Applications

Motor starters up to 37 kW at 400 V in DC-control panels, substation and switchgear control circuits, and installations where 110 V DC logic already drives other field devices.
